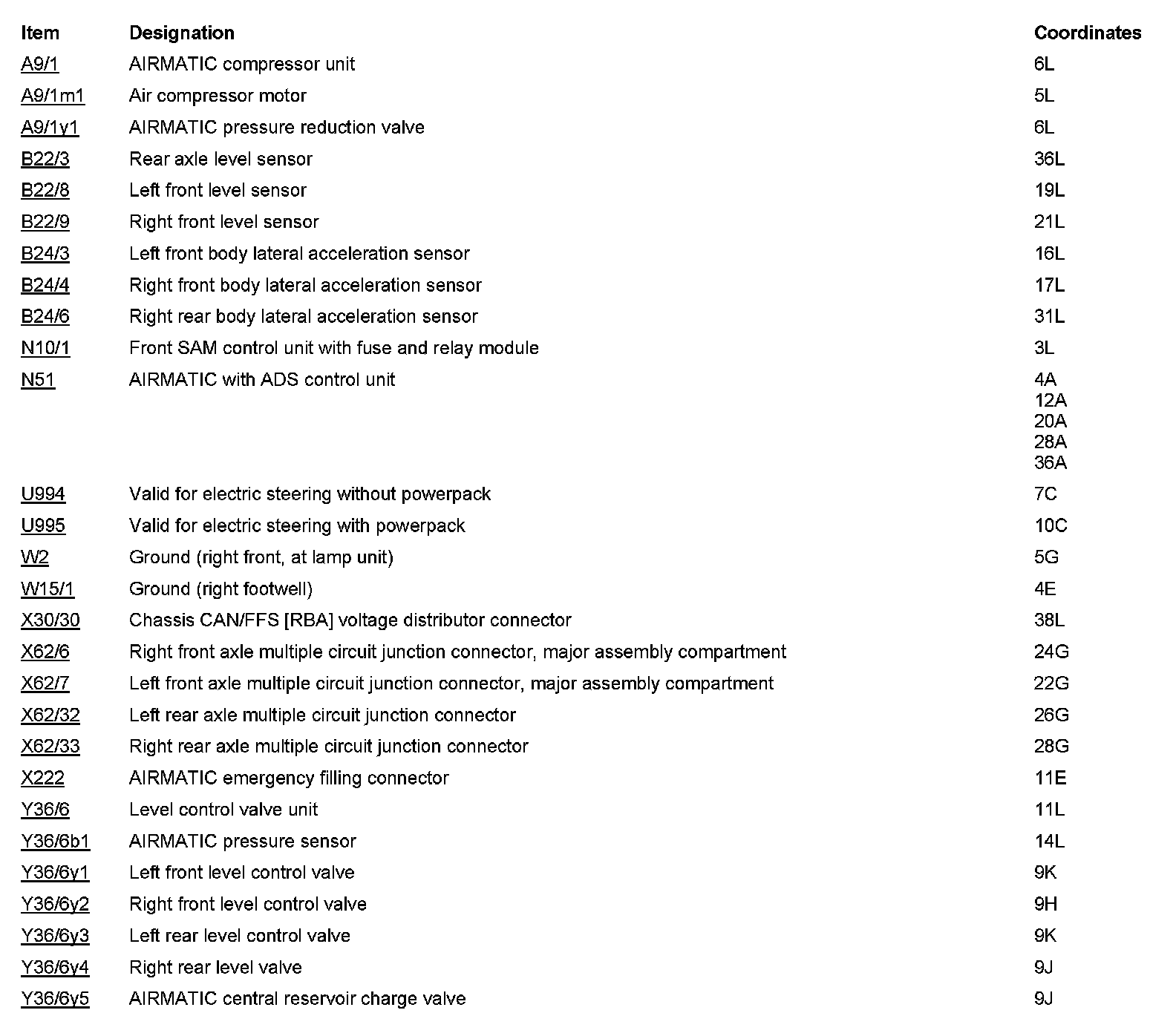

PE32.22-U-2101CAA AIRmatic Control Module

PE32.22-U-2101CAA AIRmatic Control Module

MODEL 216
- with CODE (489) AIRMATIC (air suspension with continuous damper adjustment)
- as of Model Year 2009
- Control unit N51























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
