AR32.22-P-2001SX Remove/Install Compressor
AR32.22-P-2001SX Remove/Install Compressor
AR32.22-P-2001SX Remove compressor, install

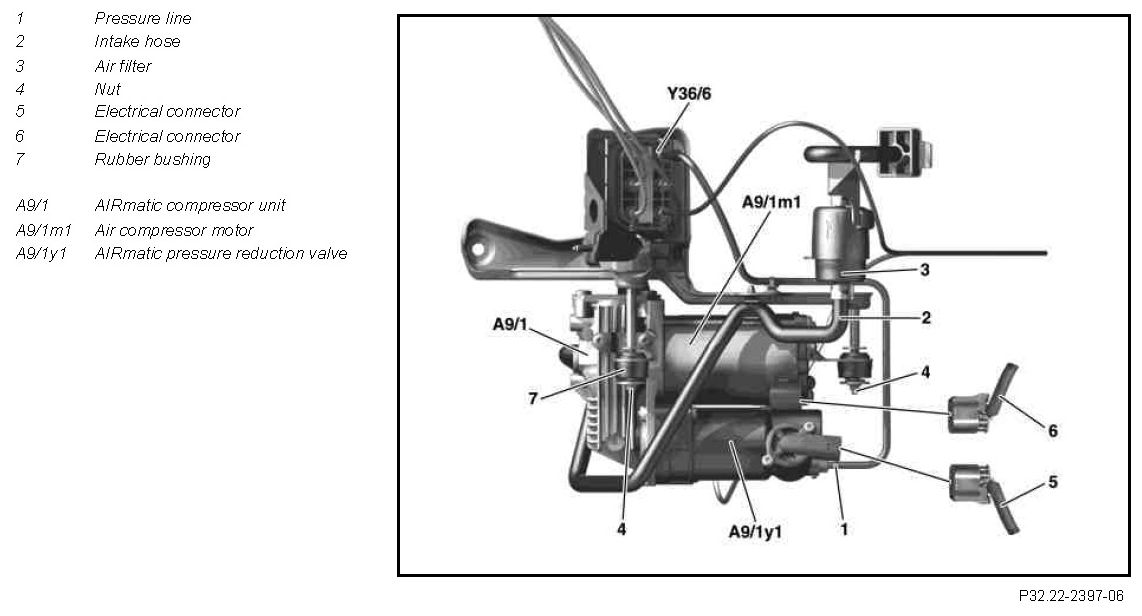

Component Identification:
Remove/install Steps 1-11:

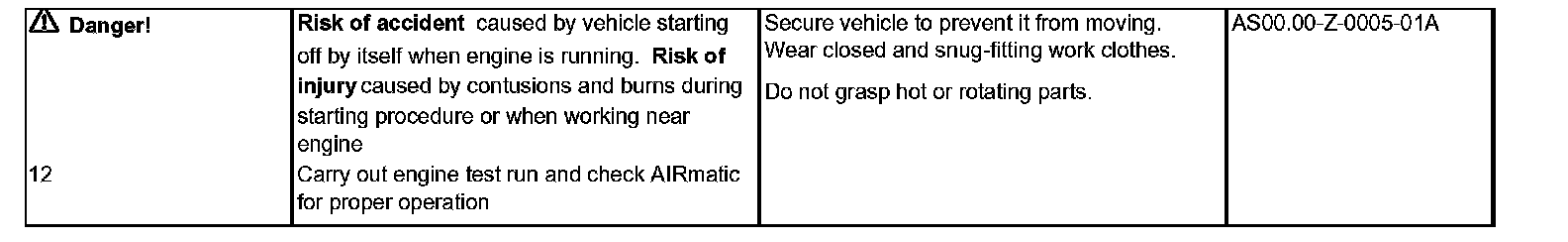

Remove/install Step 12:

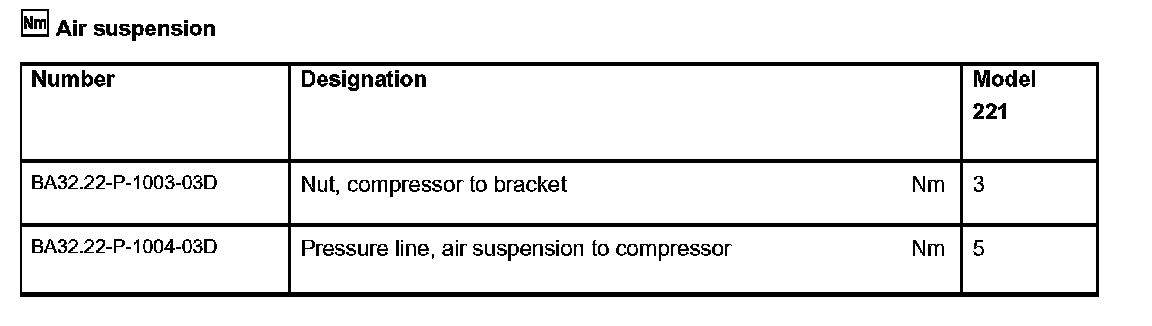

Air suspension:
