Stabilizer Bar: Service and Repair
AR32.20-P-0300SX Remove/install
stabilizer bar
on front axle
-
except CODE (487) Active Body Control (ABC)

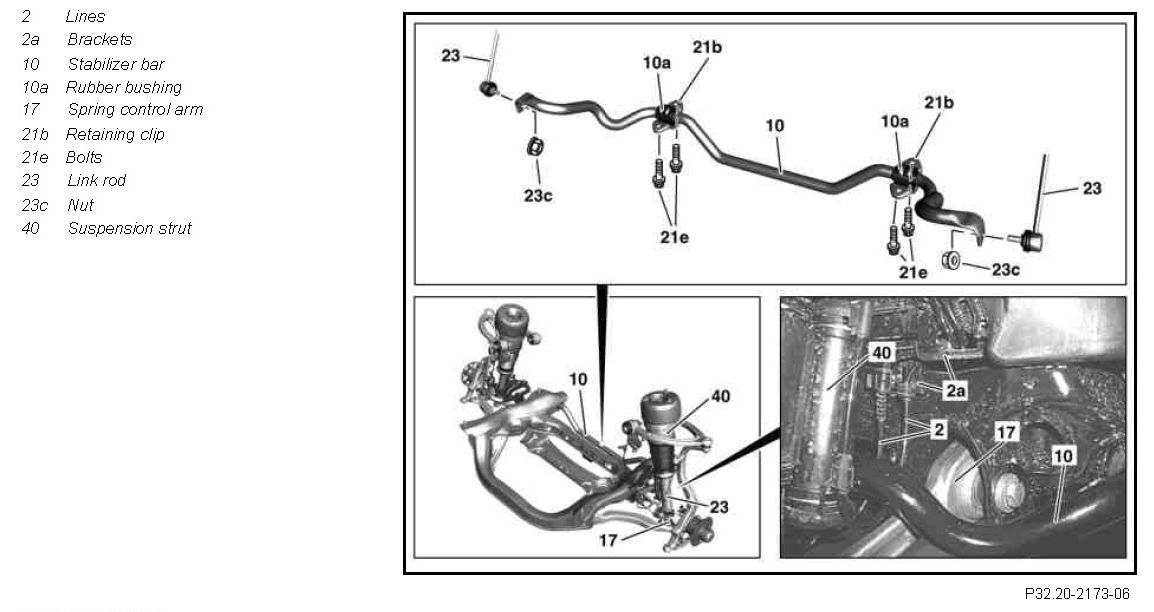

Component Identification:

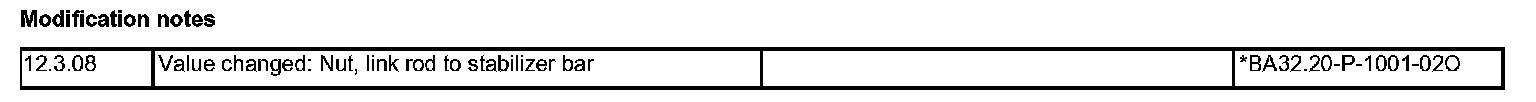

Modification notes:

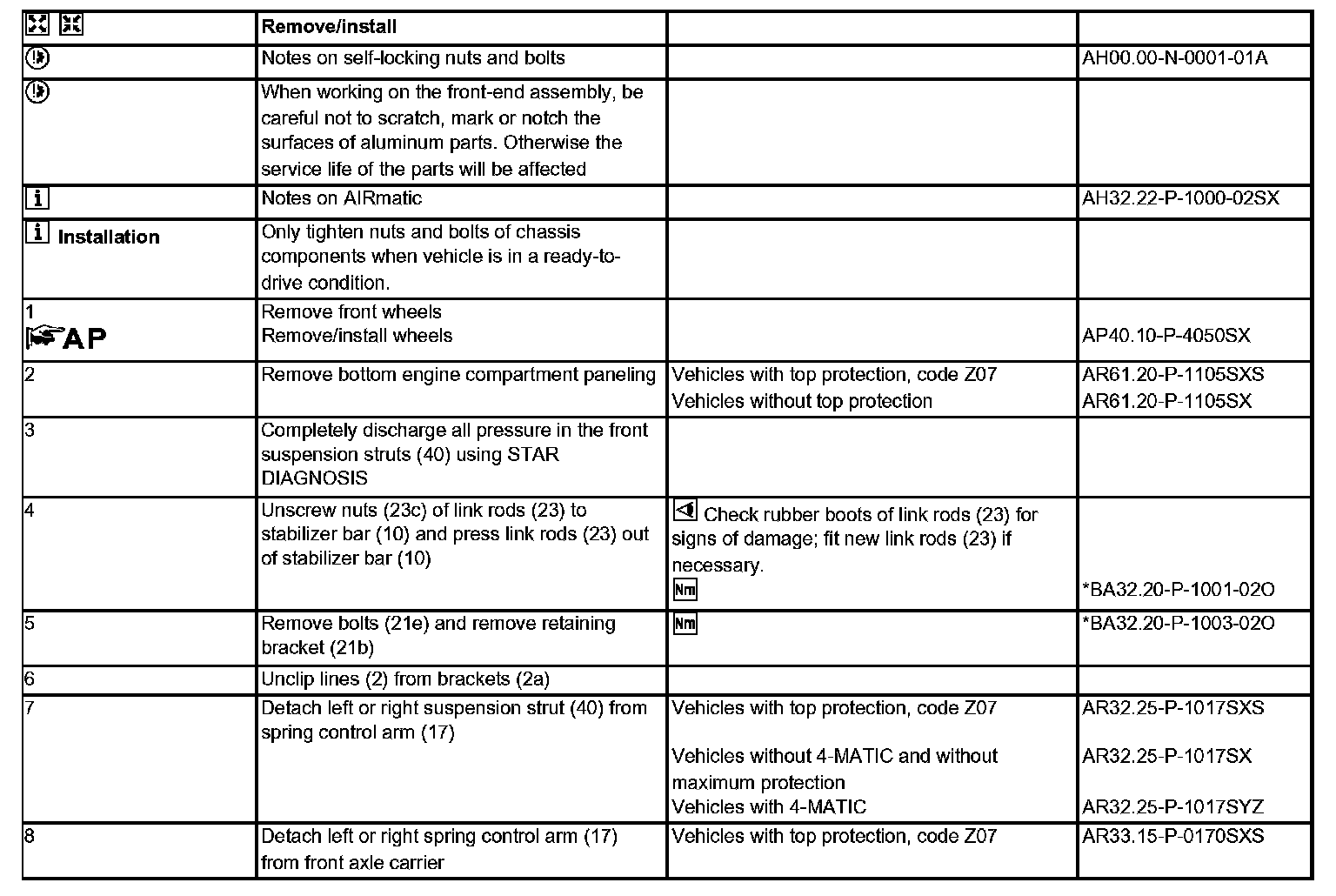

Remove/install Steps 1-8:

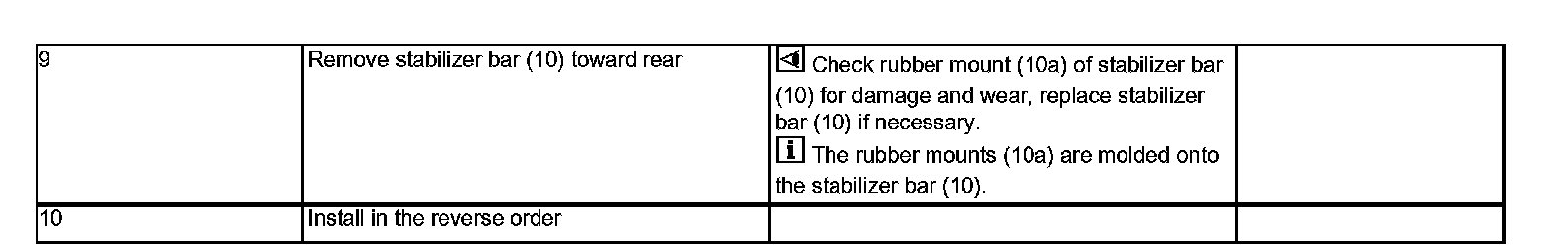

Remove/install Steps 9-10:

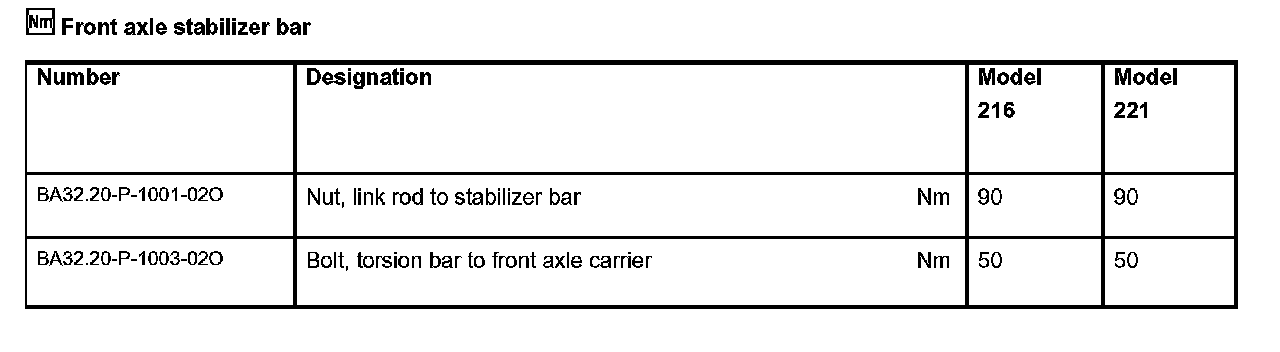

Front axle stabilizer bar:
