AR32.00-P-1000SX Install/Remove Emergency Buffer
AR32.00-P-1000SX Install/Remove Emergency Buffer
AR32.00-P-1000SX Install/remove emergency buffer
-
with AIRmatic

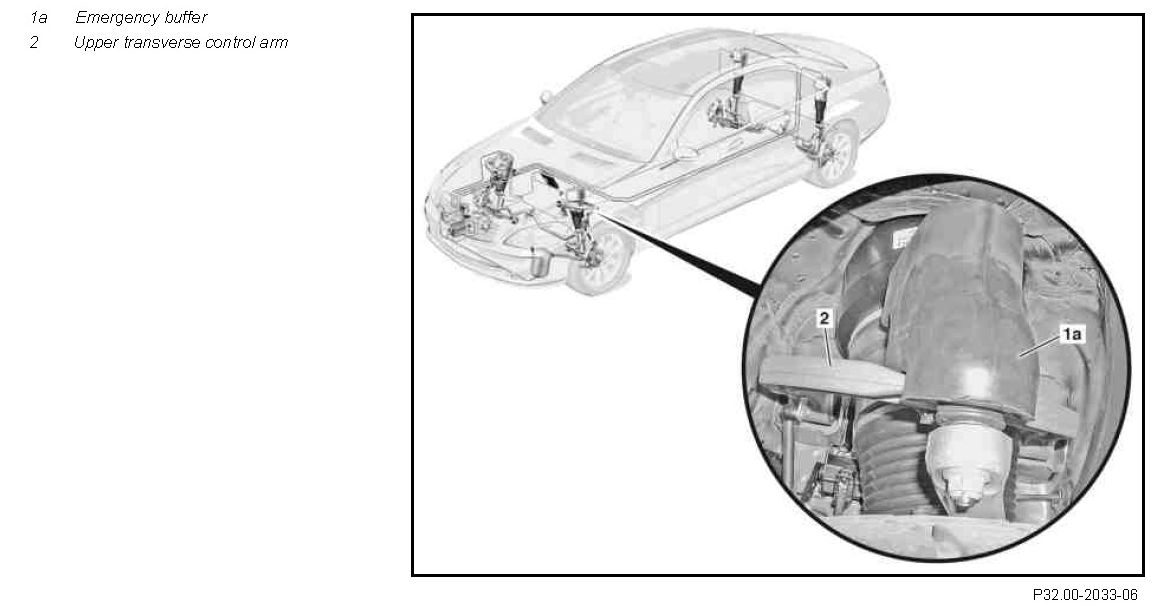

Component Identification:

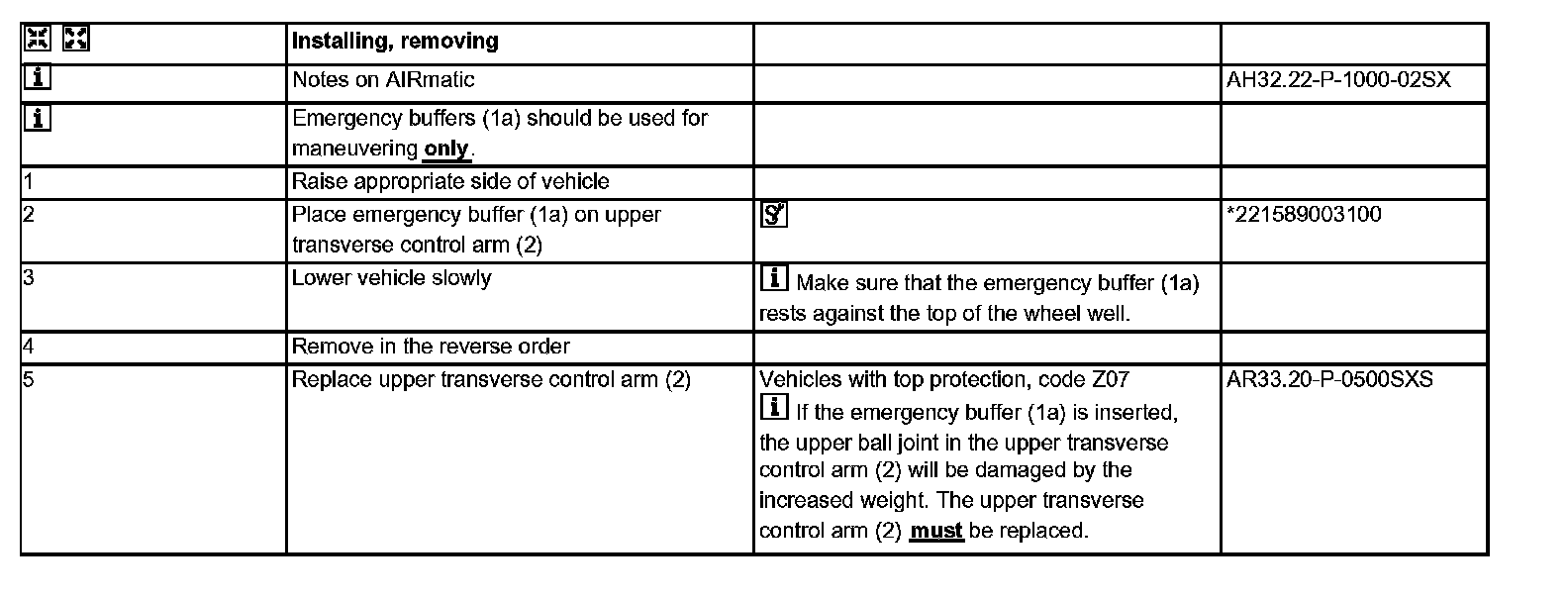

Steps 1-5:

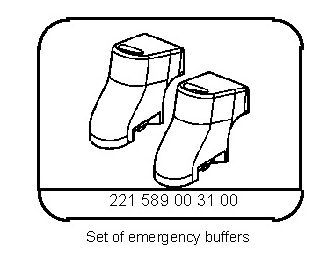

Special Tools:
