AR35.20-P-0109SX Remove/Install Track Rod
AR35.20-P-0109SX Remove/Install Track Rod
AR35.20-P-0109SX Remove/install track rod

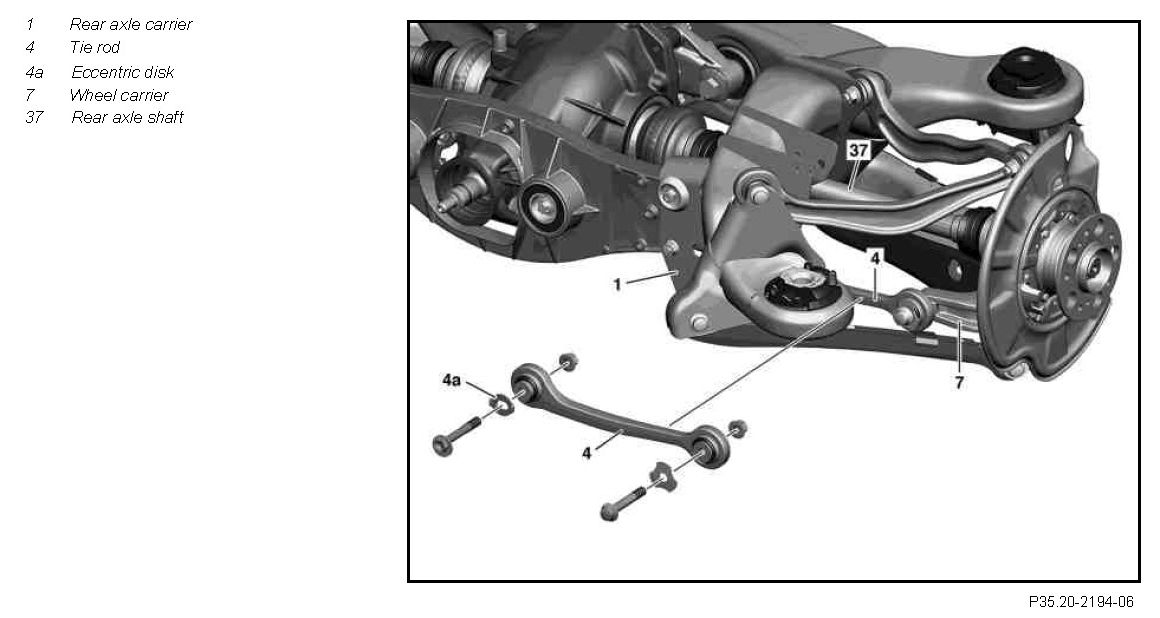

Component Identification:

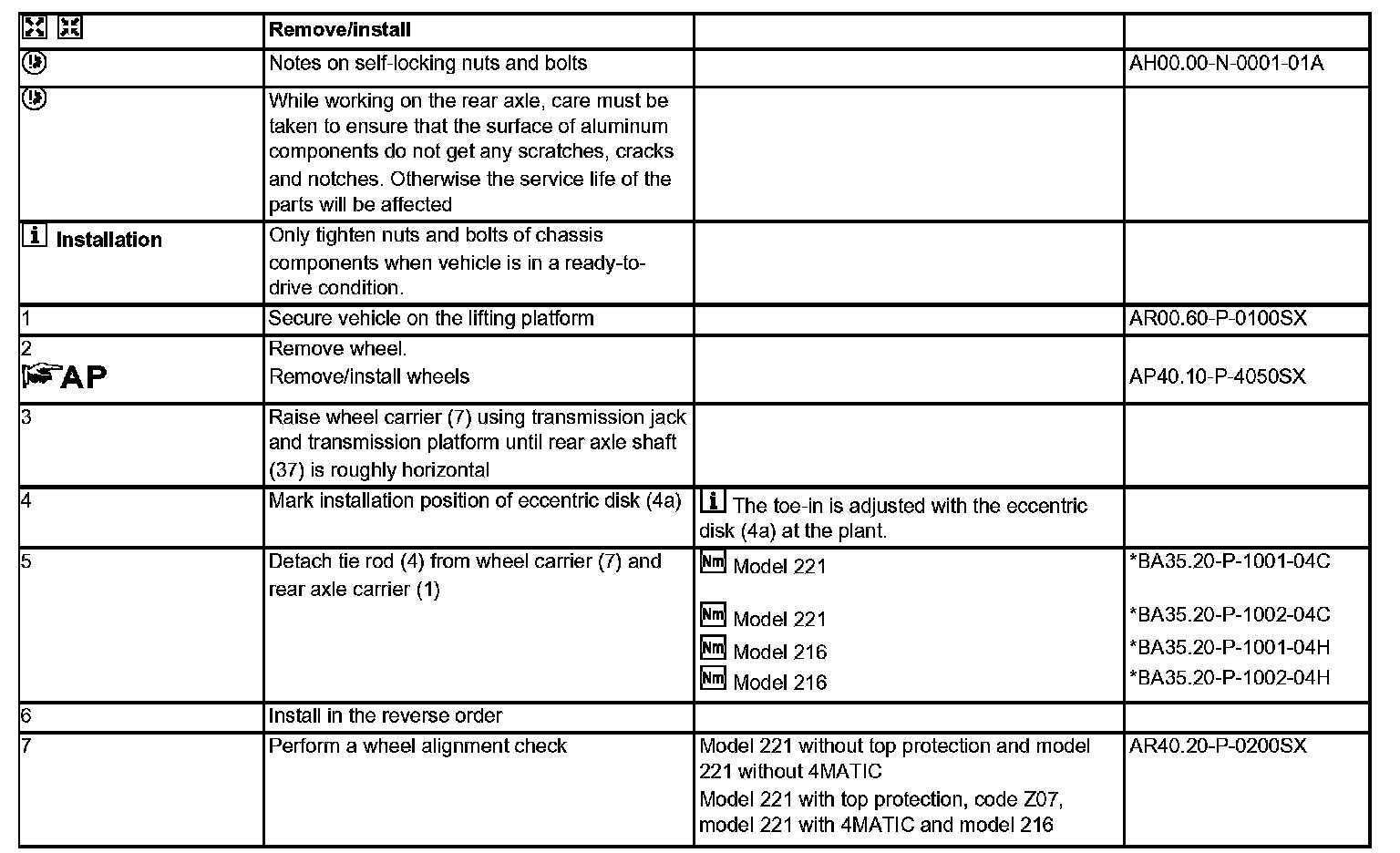

Remove/install Steps 1-7:

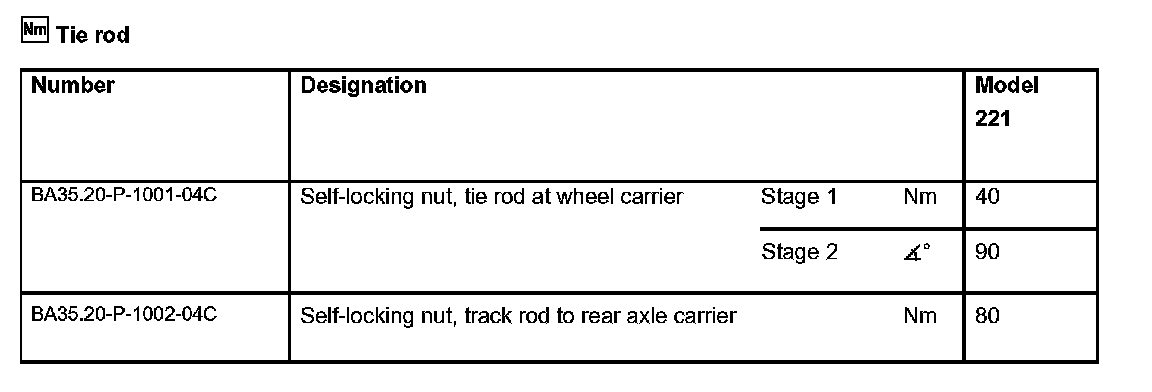

Tie rod:

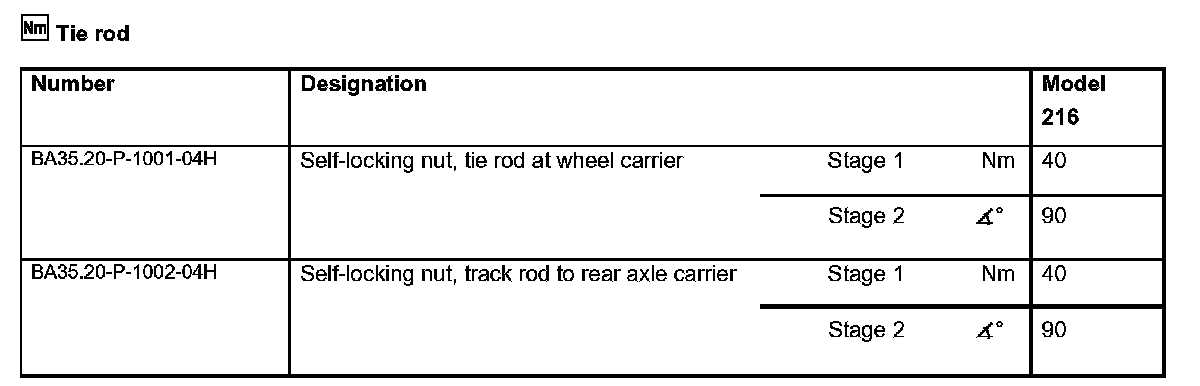

Tie rod:
