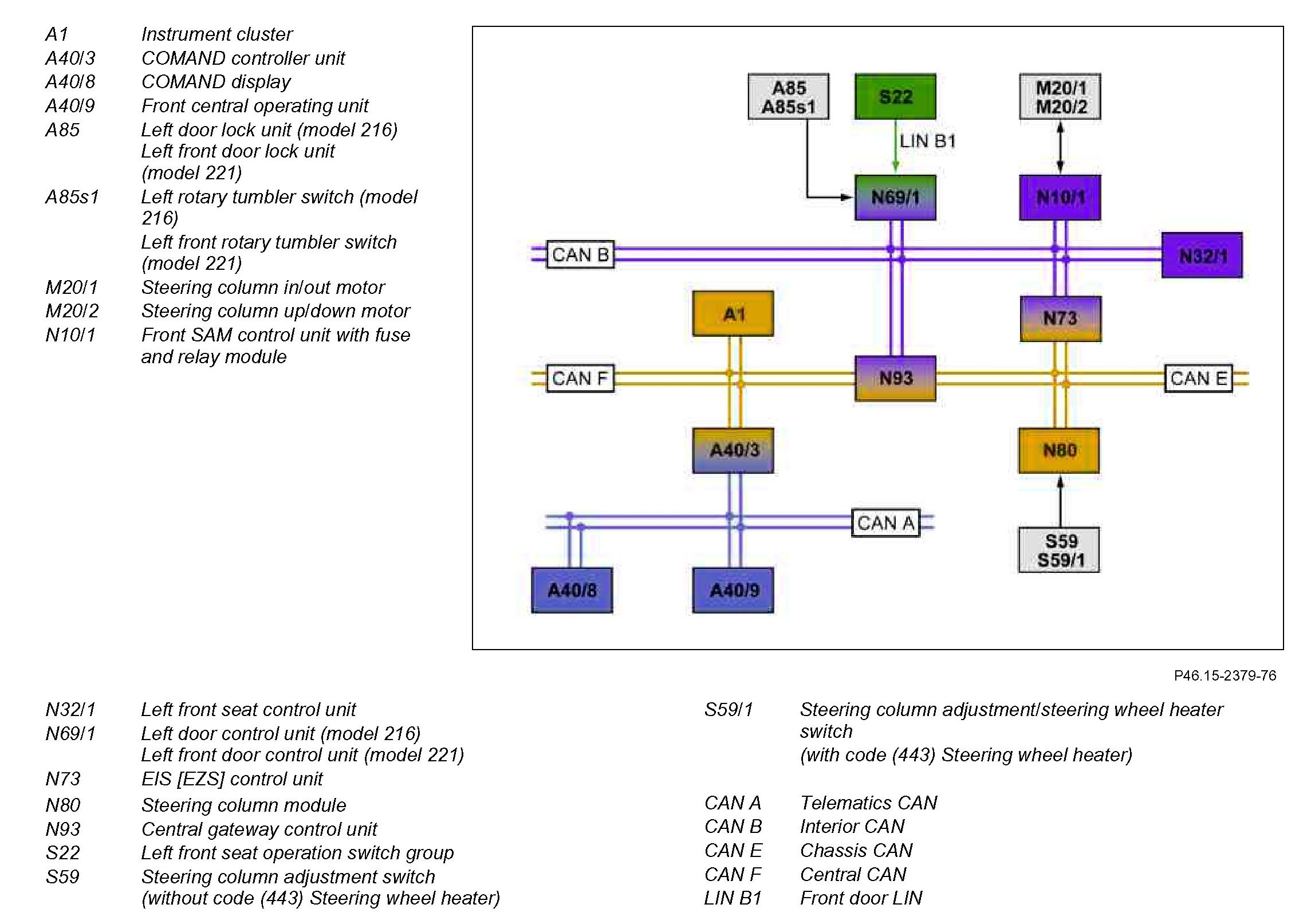

GF46.15-P-0003-02LE Electrically Adjustable Steering Column (EVL) Block Diagram
GF46.15-P-0003-02LE Electrically Adjustable Steering Column (EVL) Block Diagram
GF46.15-P-0003-02LE Electrically adjustable
steering column
(EVL) block diagram
