AR46.30-P-0010SX Fill
power steering pump
and bleed

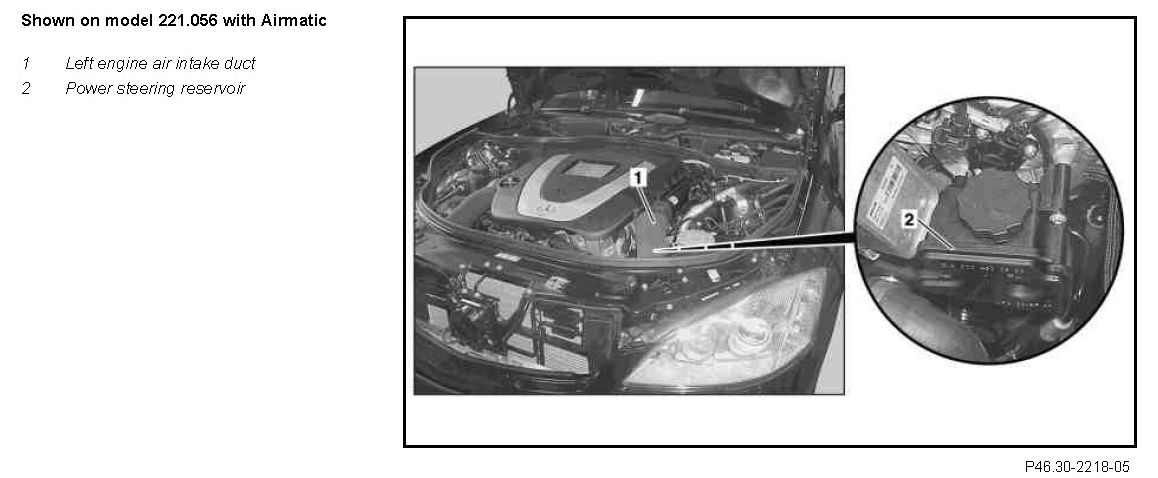

Component Identification:

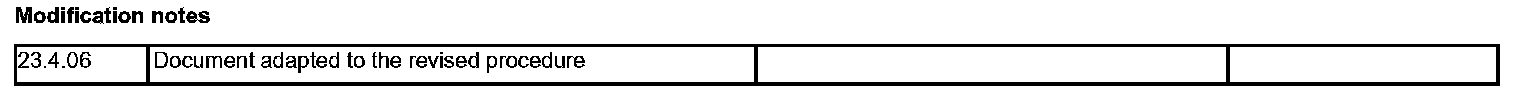

Modification notes:

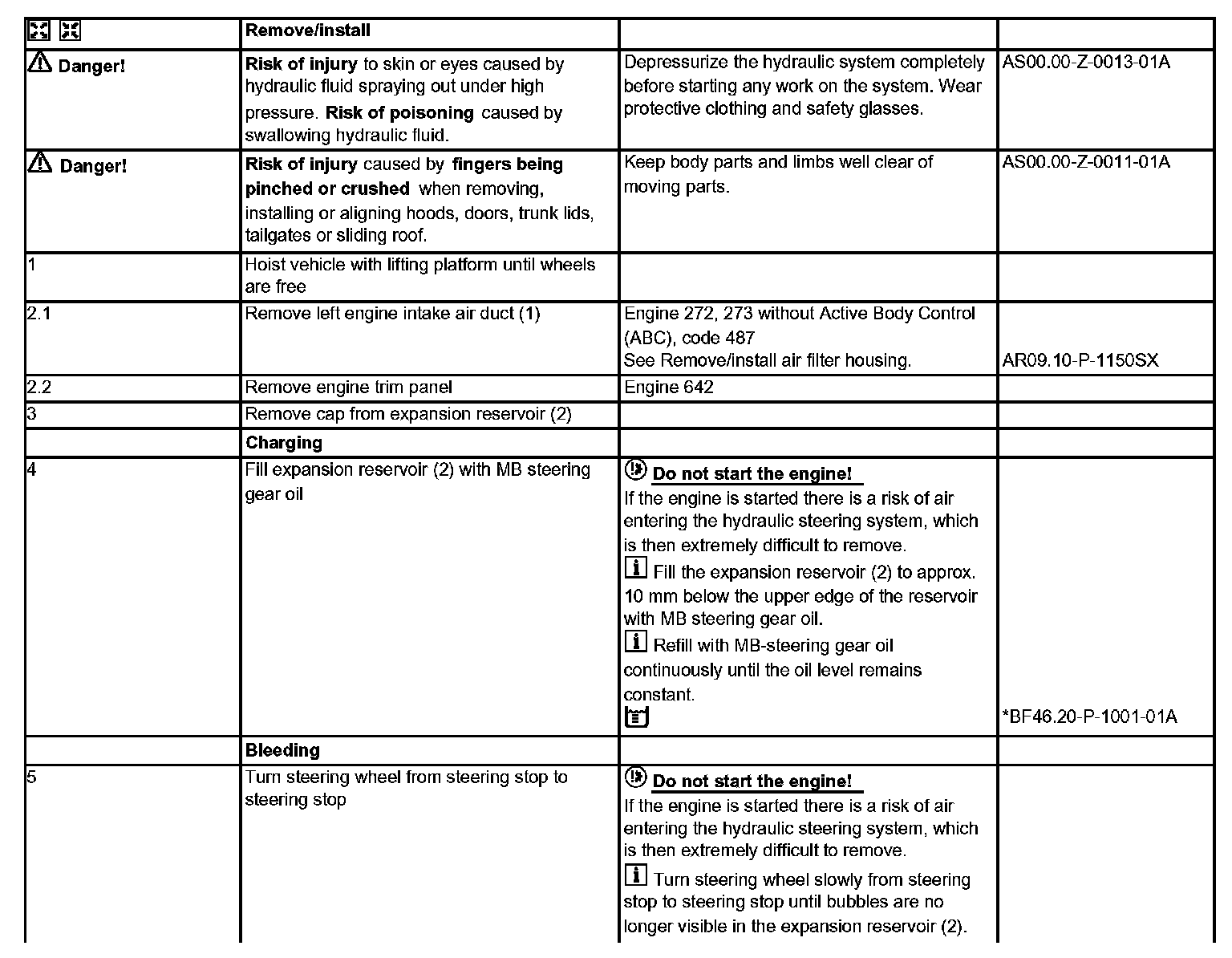

Remove/install Steps 1-5:

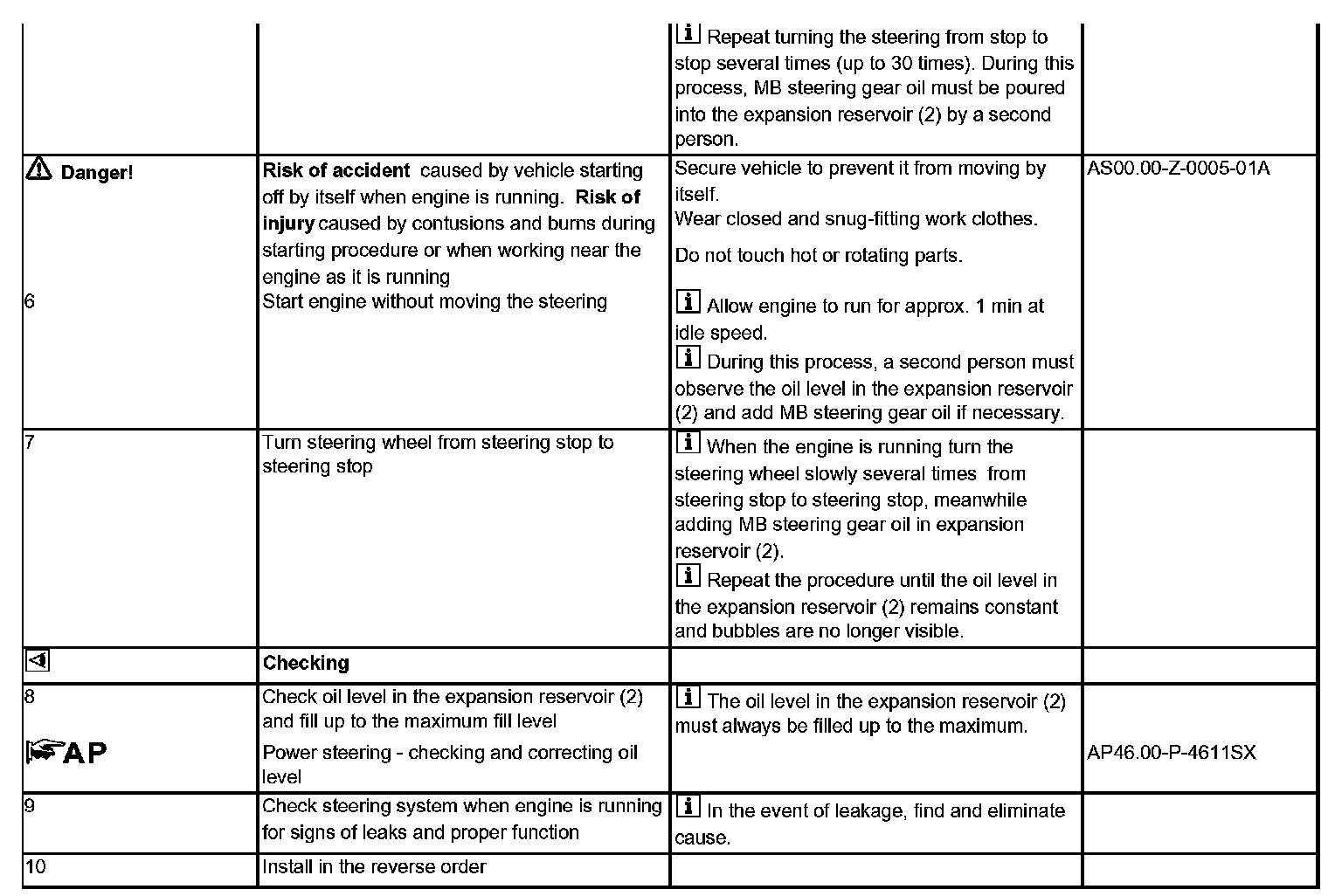

Remove/install Steps 5 (Continued)-10:

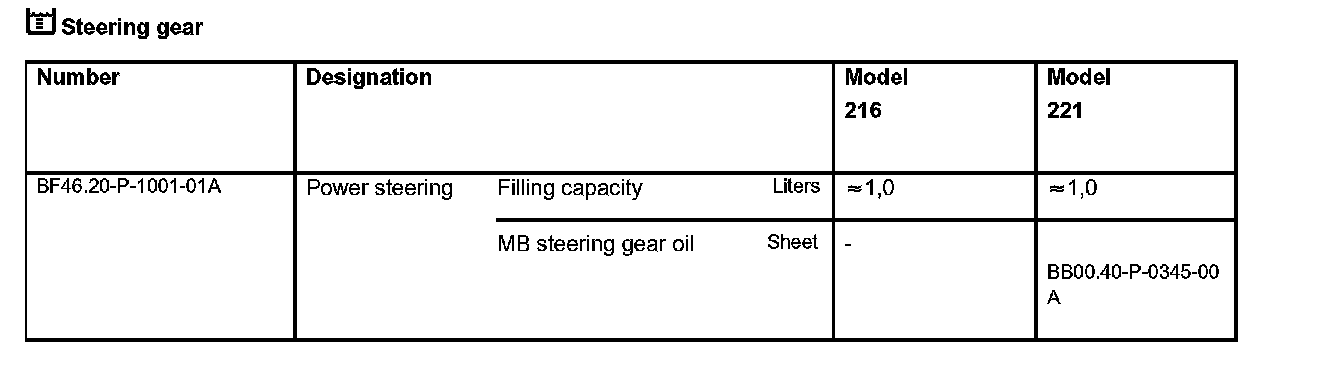

Steering gear:
