Starter Motor: Service and Repair

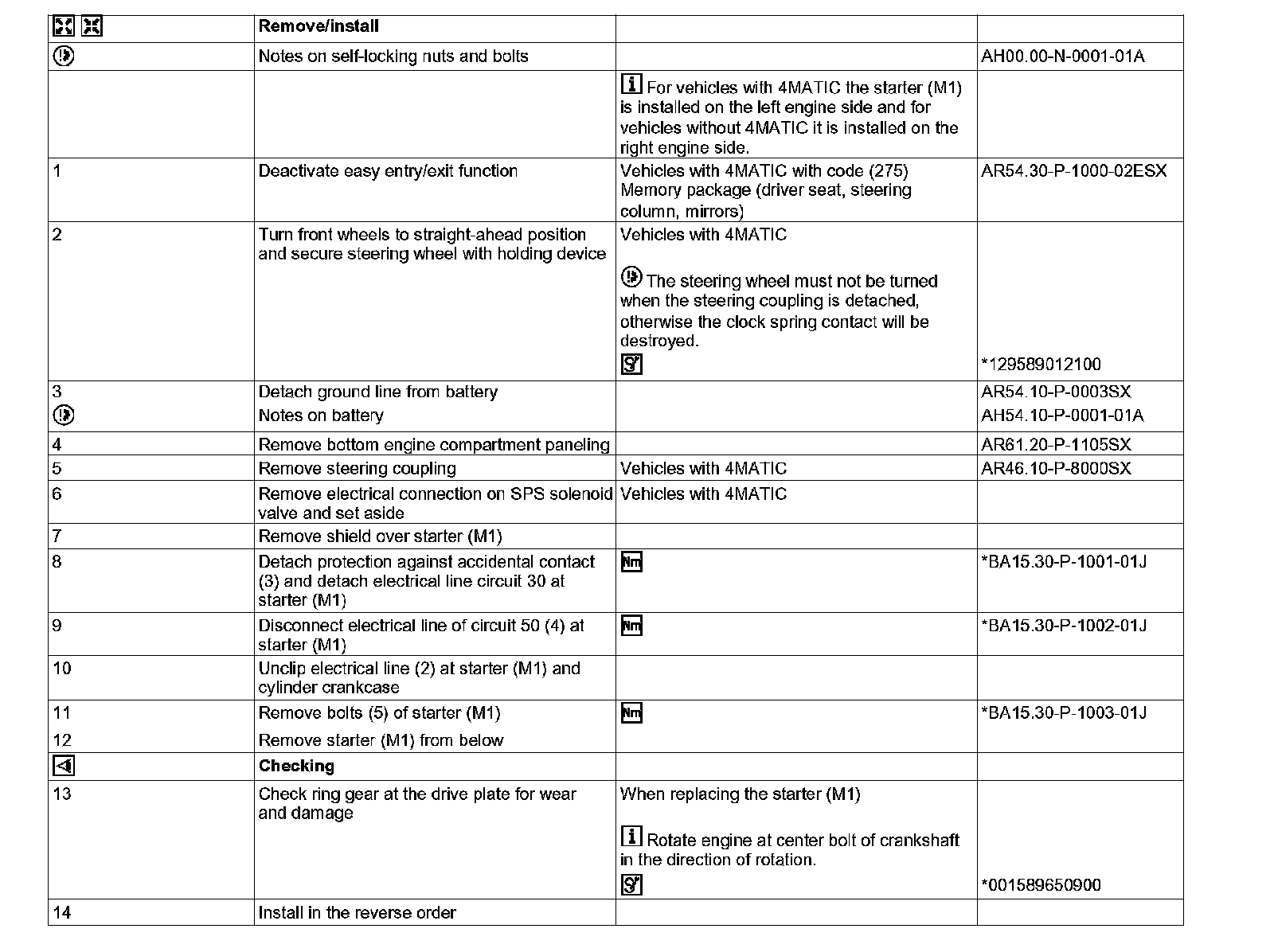

AR15.30-P-7100MMB Remove/Install Starter
-ENGINES 157, 278 in MODEL 216, 221

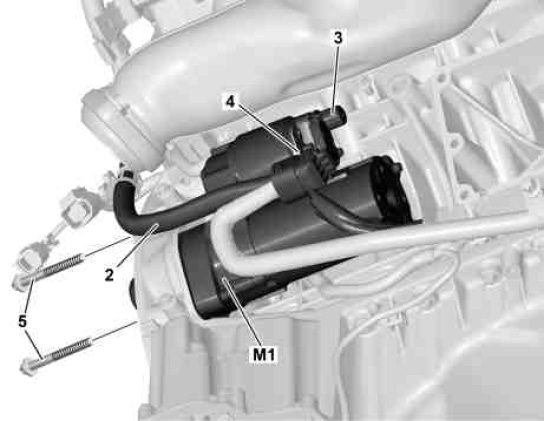

2 Electrical line
3 Contact protection
4 Electric cable circuit 50
5 Bolts

M1 Starter











001 589 65 09 00
Wrench socket





129 589 01 21 00
Holding device
