GF54.15-P-1256-06LE Fuse Assignment of Fuse and Relay Box In Trunk




GF54.15-P-1256-06LE Fuse Assignment of Fuse and Relay Box In Trunk

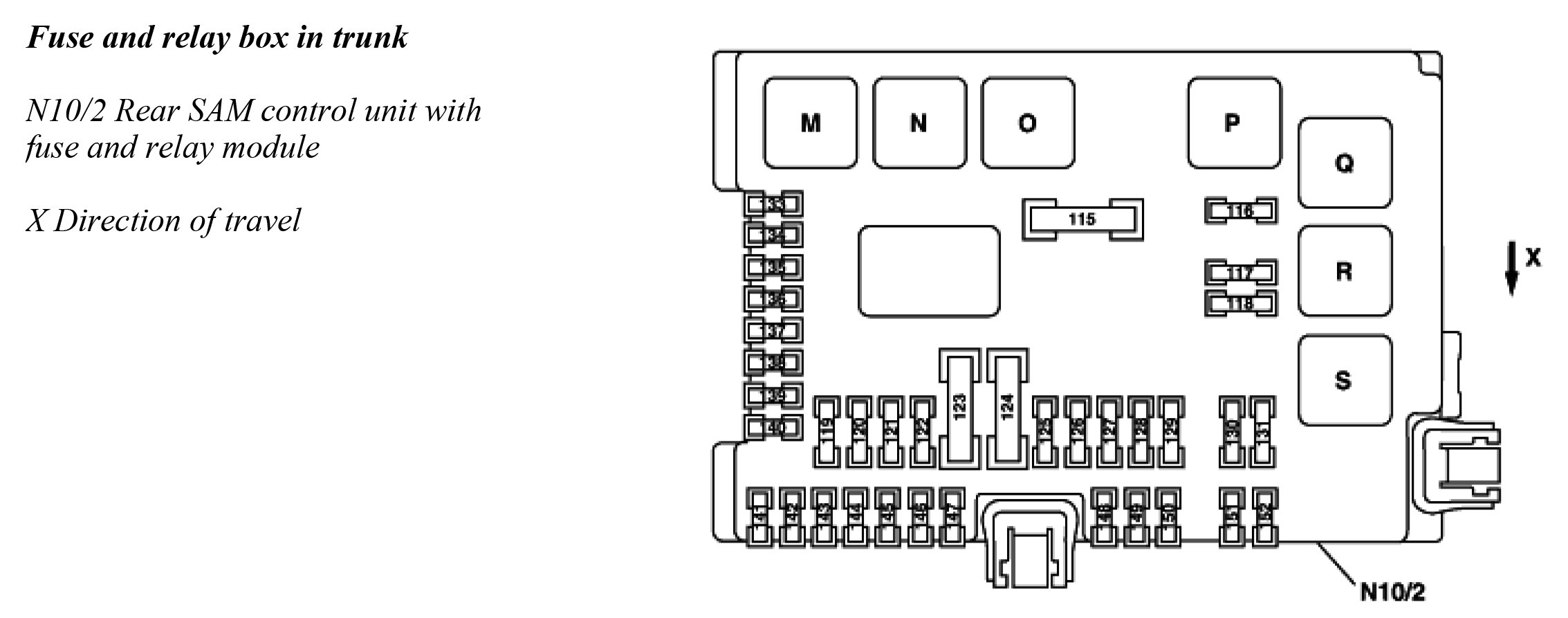

Component Location:

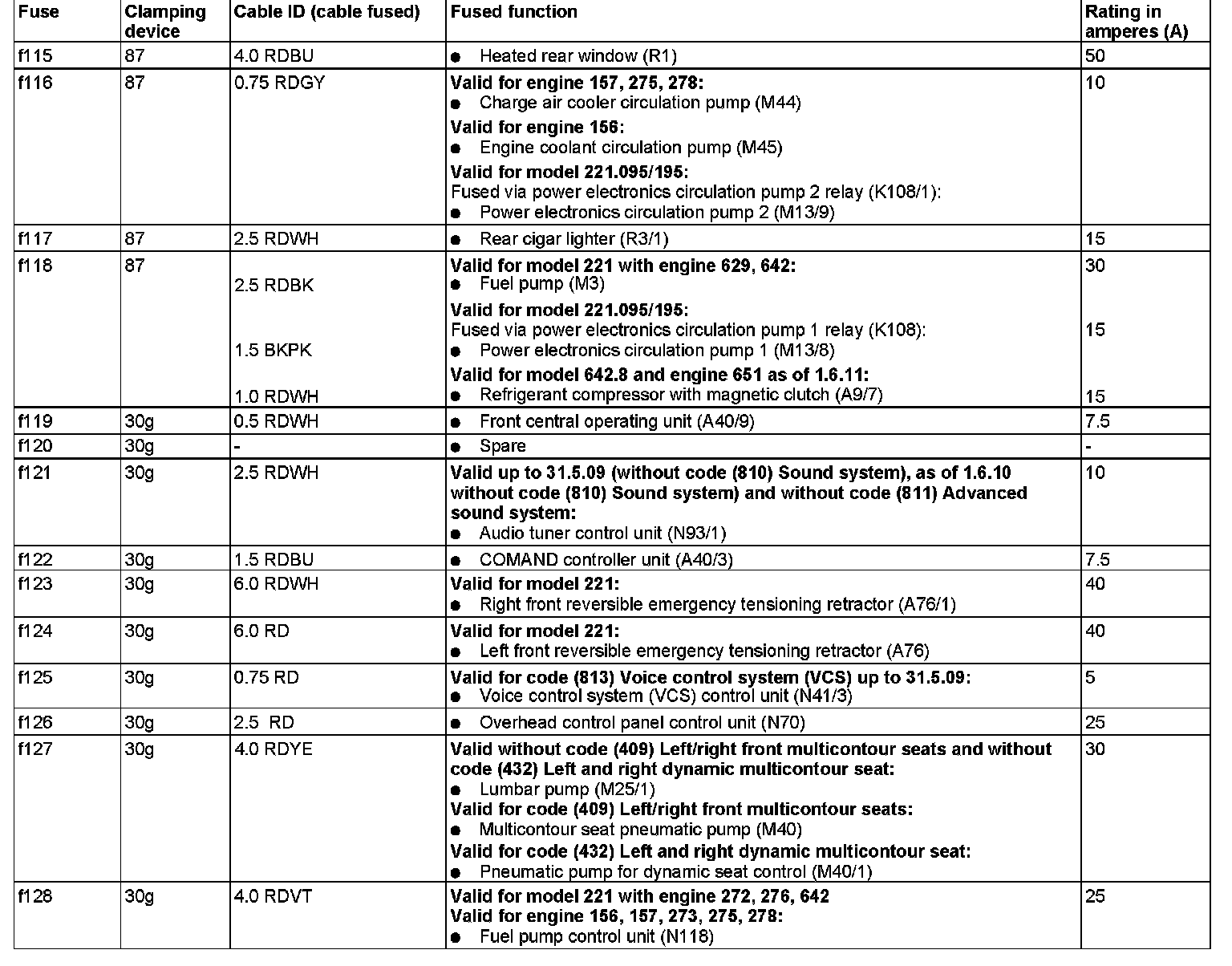

Fuse F115 To F127:




F127 Continued To F142:

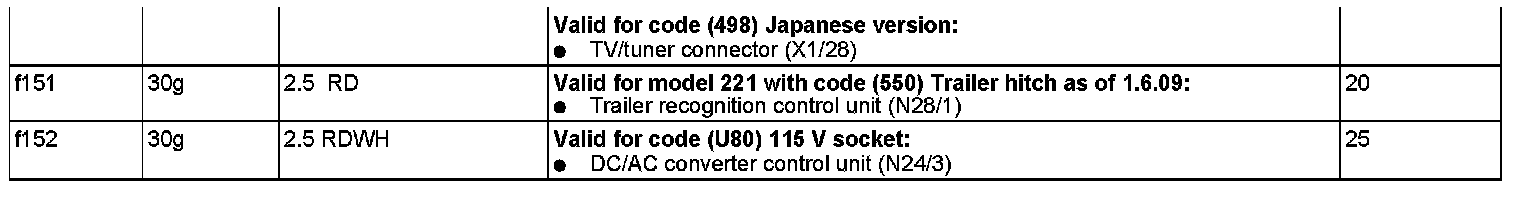

F142 Continued To F152:
