AR54.15-P-1350SX Remove/Install Interior Compartment Prefuse Box
AR54.15-P-1350SX Remove/Install Interior Compartment Prefuse Box
AR54.15-P-1350SX Remove/install Interior Compartment Prefuse Box

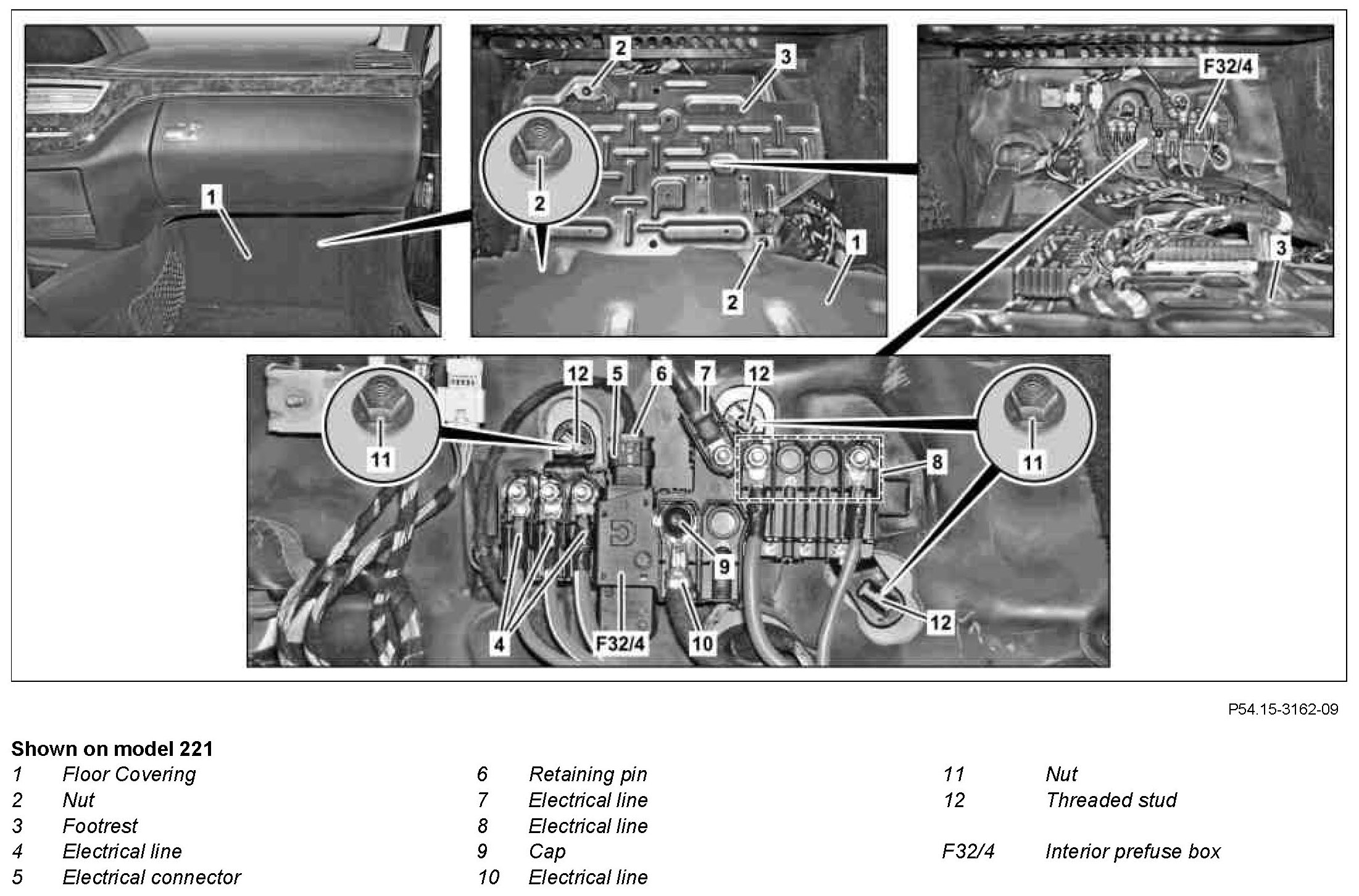

Component Identification:

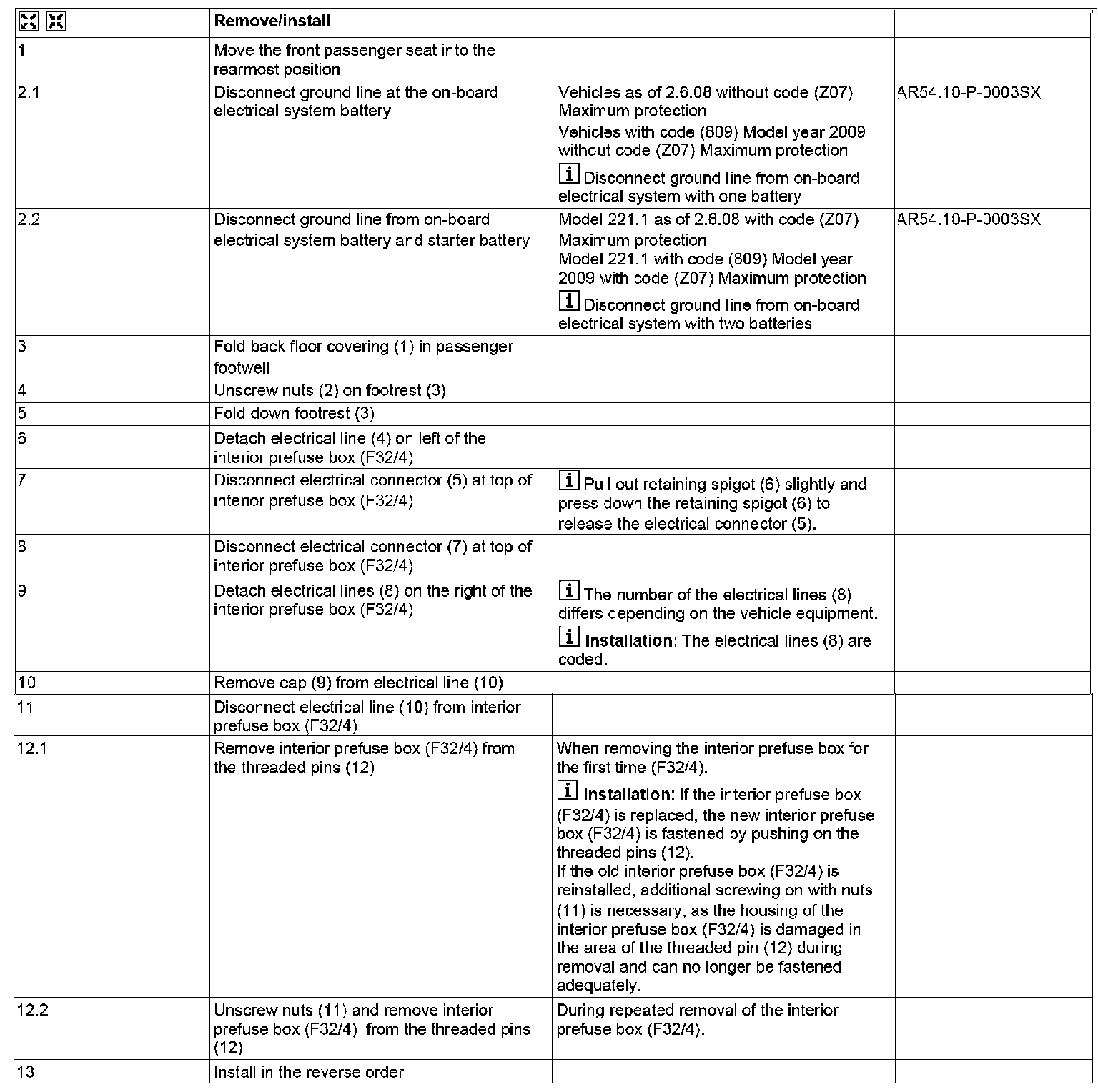

Steps 1-13:
