Alternator Pulley / Clutch: Service and Repair
AR15.40-P-5710SX Remove/install
alternator
belt pulley

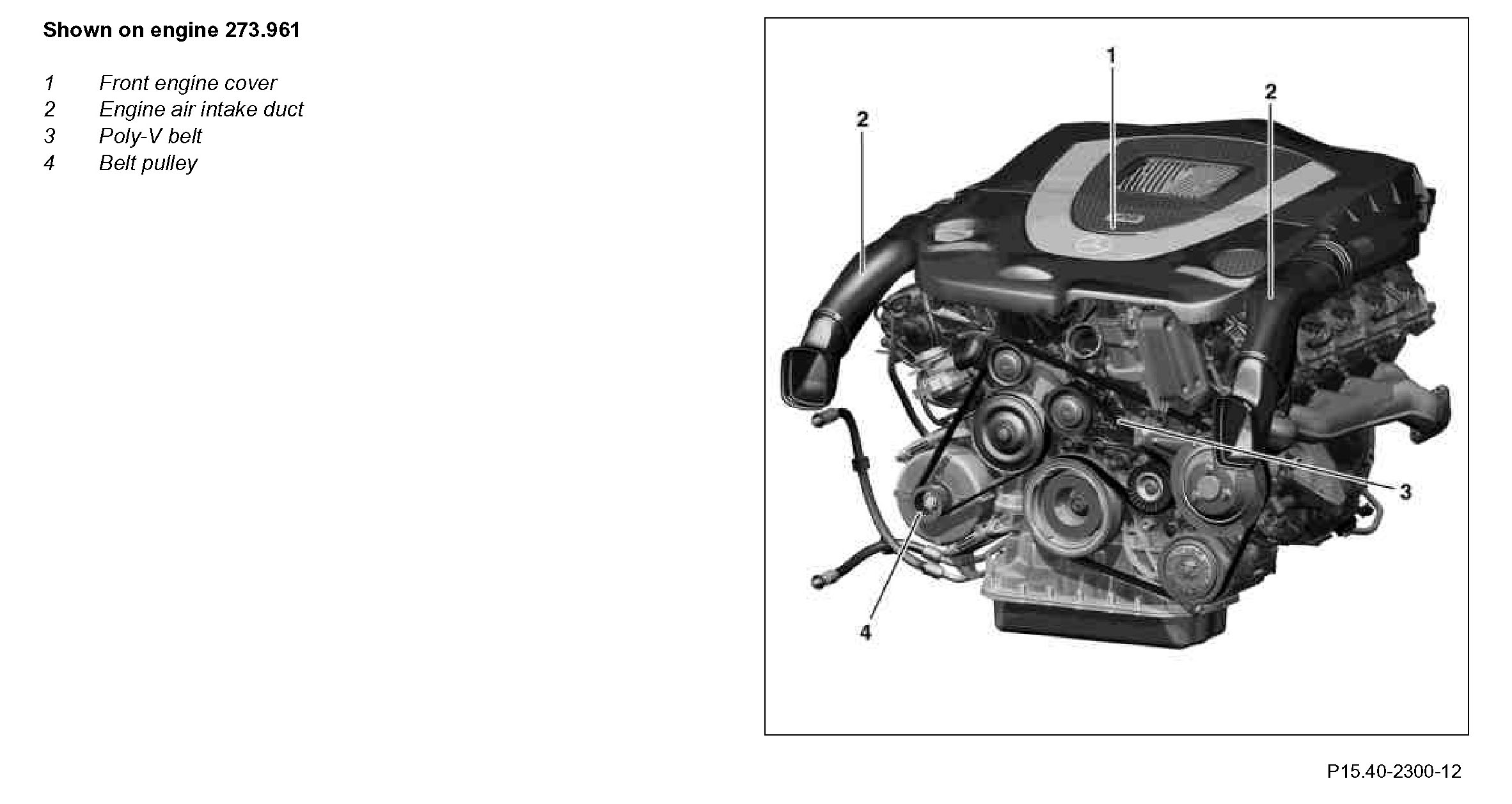

Component Identification:

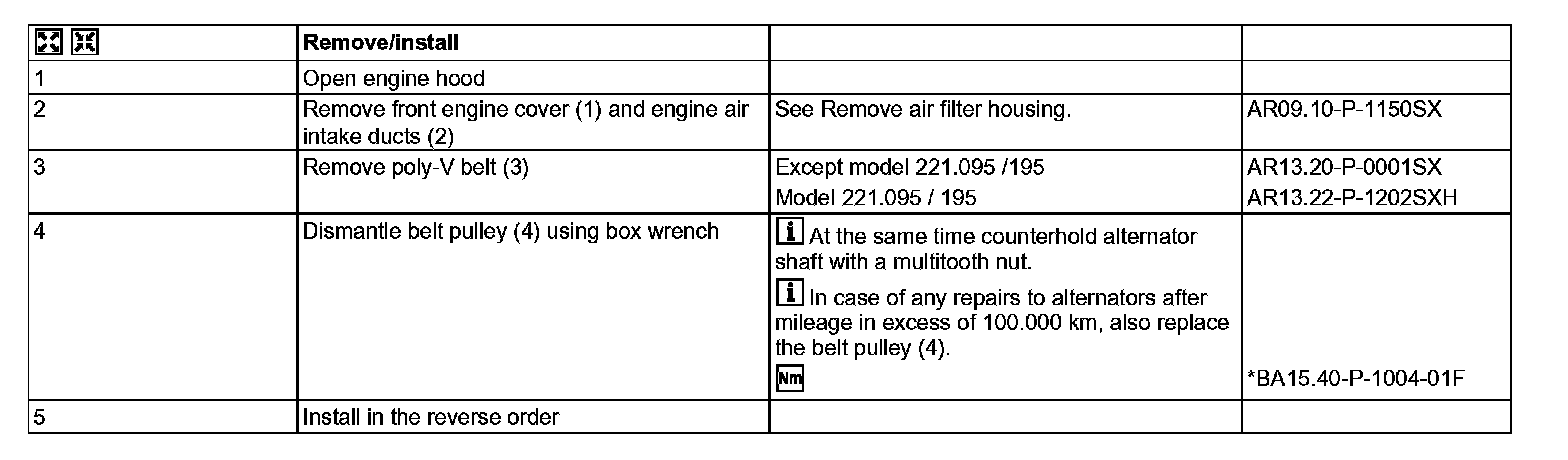

Steps 1-5:

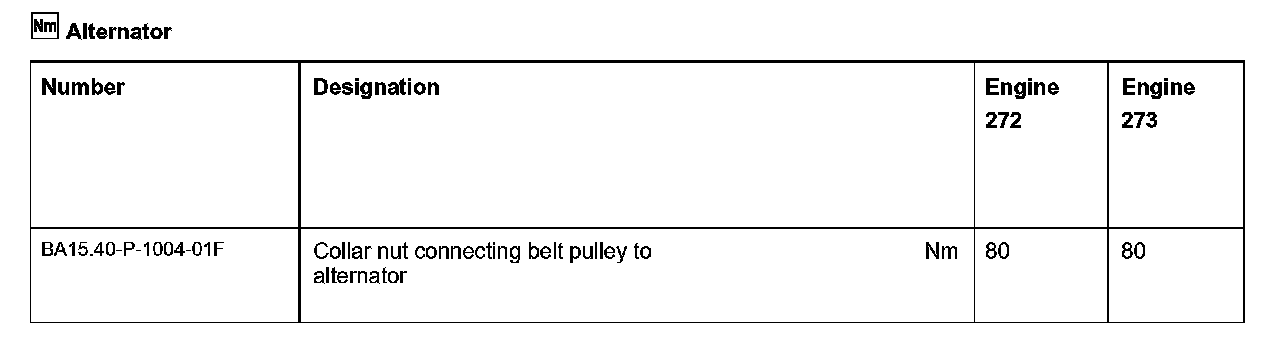

Alternator:
