Home >> Mercedes Benz >> 2012 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Ignition System >> Ignition Coil Pack

Ignition Coil Pack

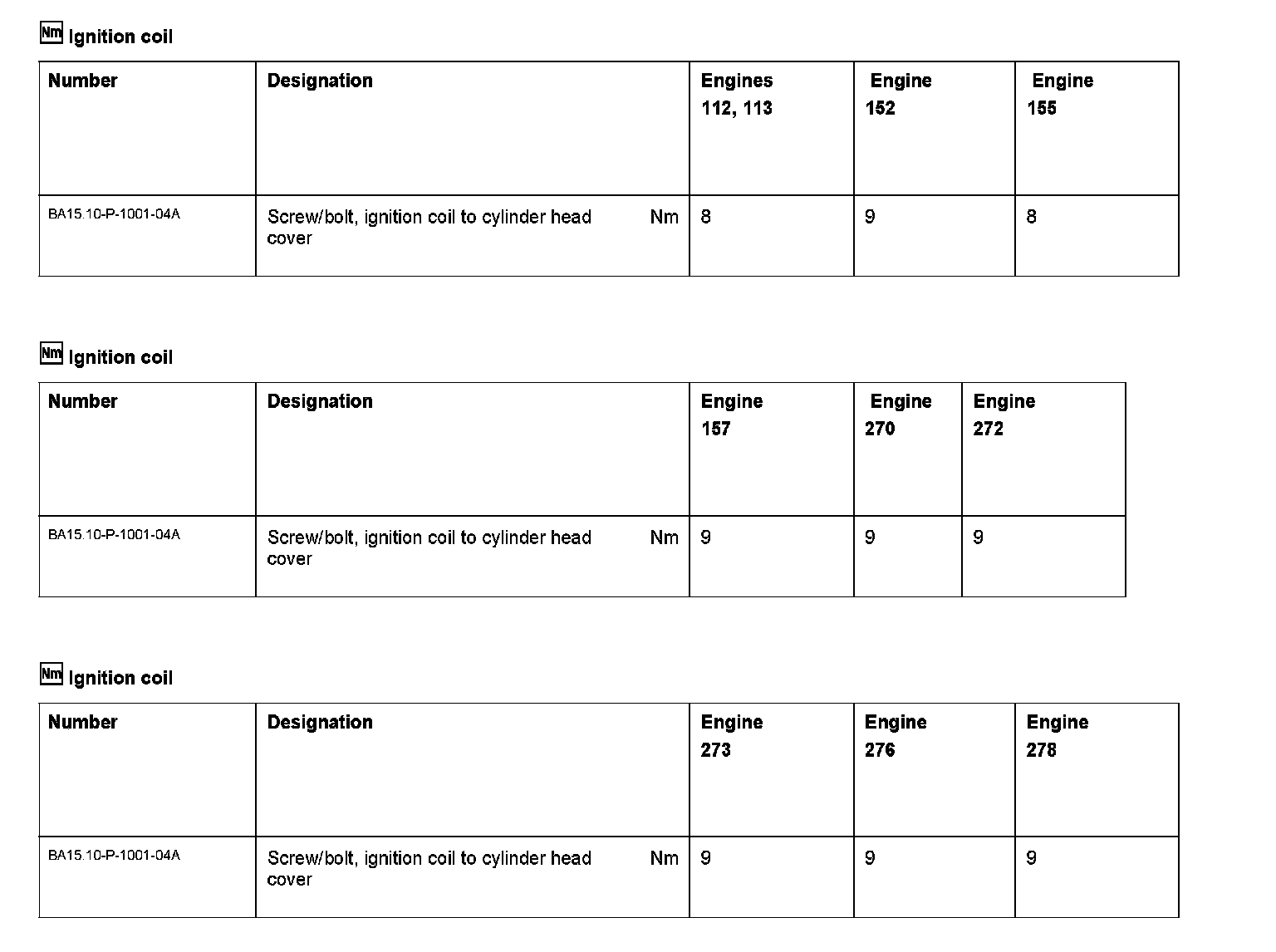

BA15.10-P-1000-04A Ignition Coil
ENGINE 112, 113, 152, 155, 157, 270, 272, 273, 276, 278
