BE01.30-P-1000-04B Cylinder Head/Cylinder Head Bolts



BE01.30-P-1000-04B Cylinder Head/Cylinder Head Bolts

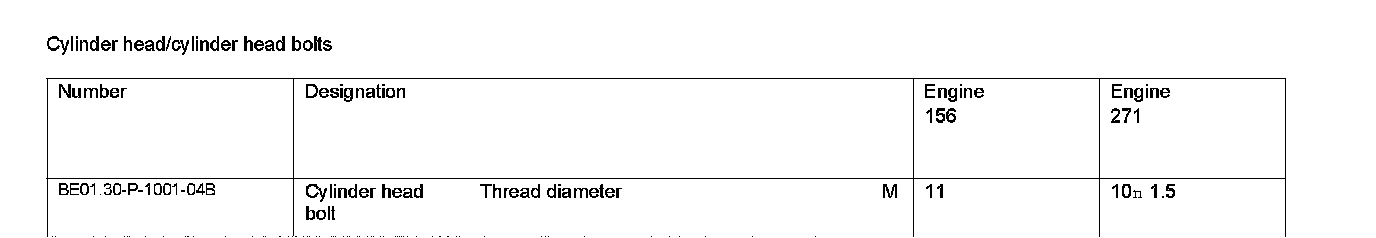

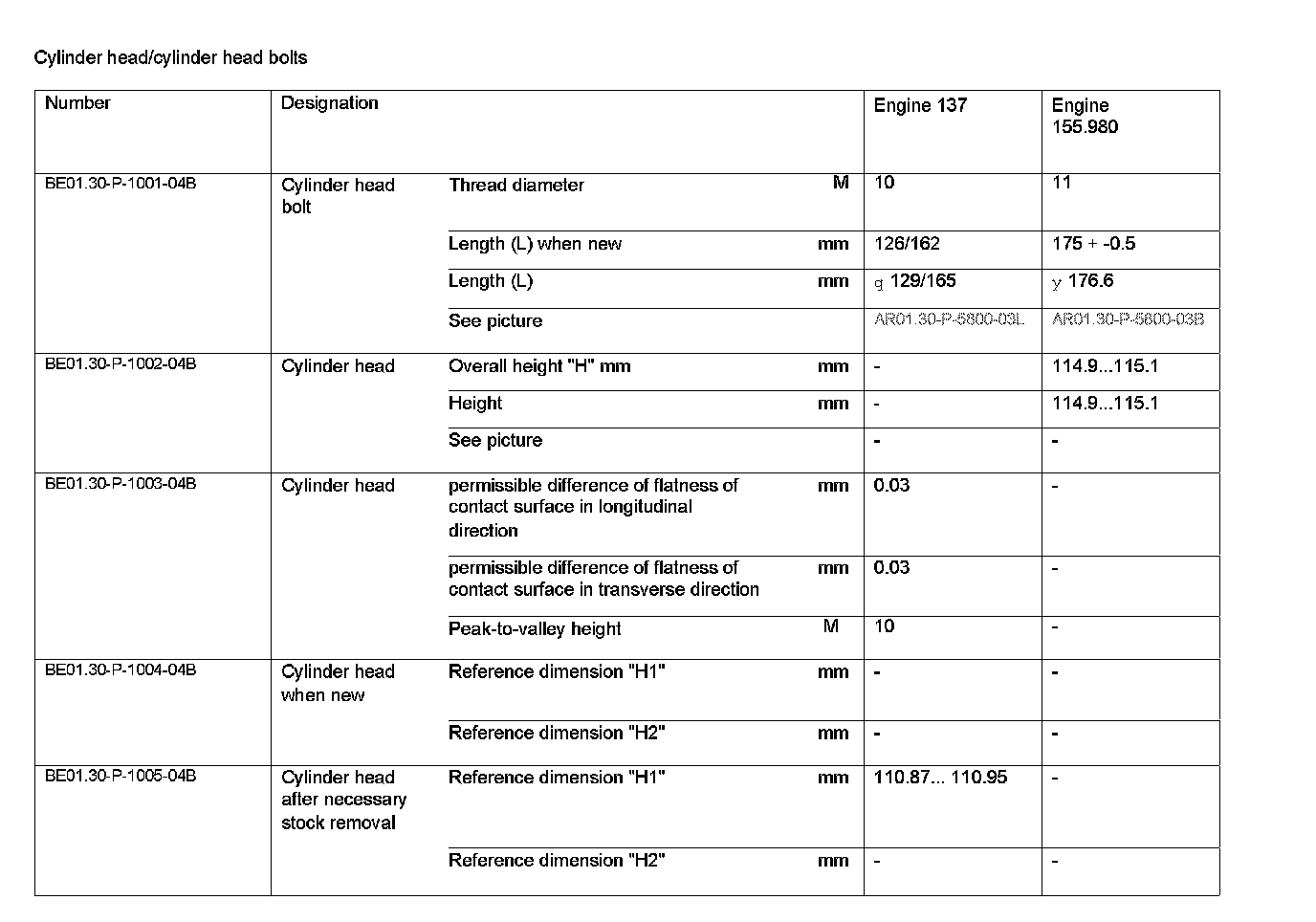

Cylinder Head/cylinder Head Bolts:

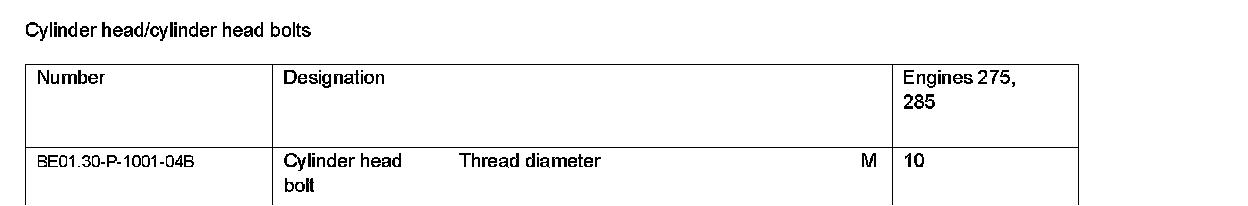

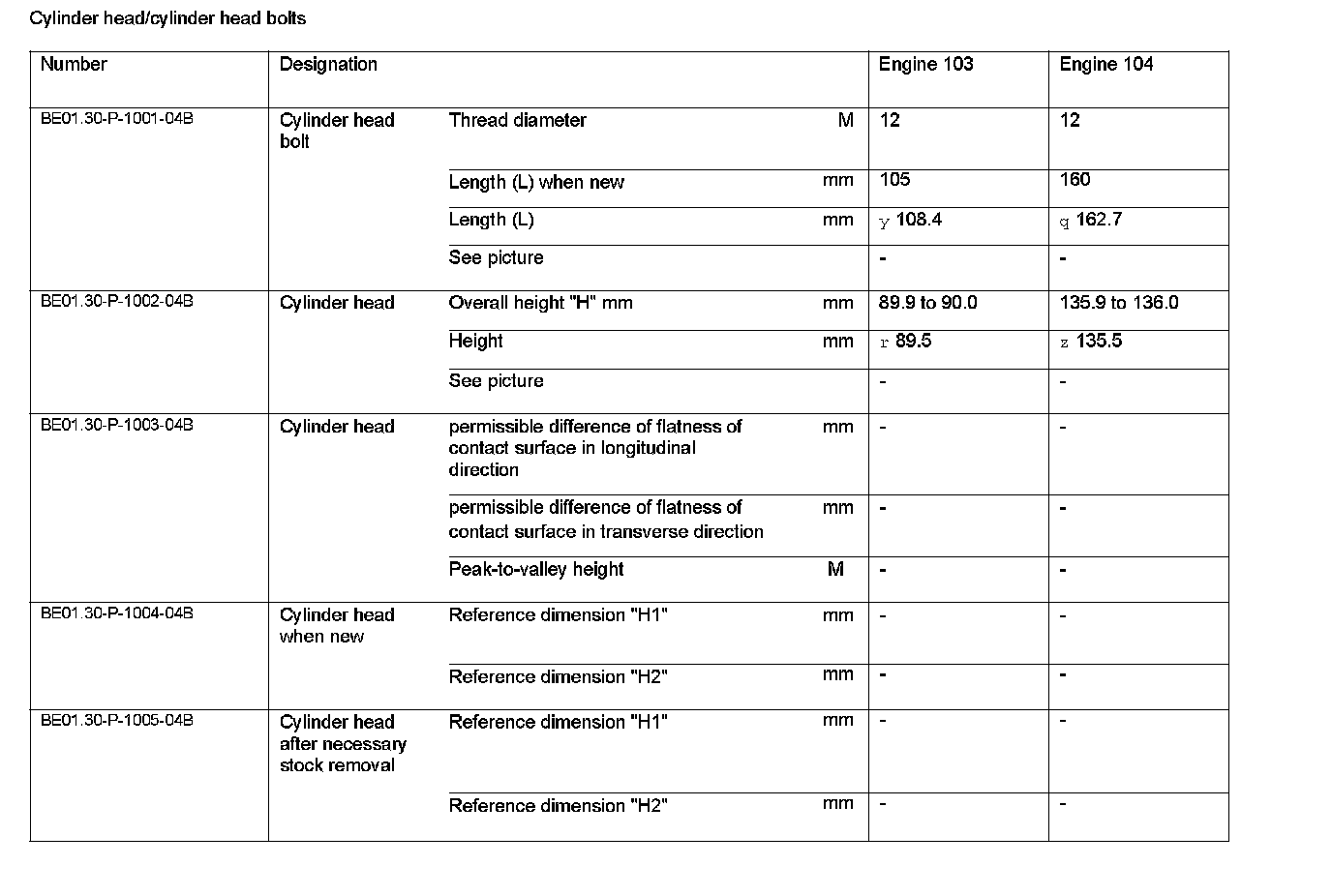

Cylinder Head/cylinder Head Bolts:

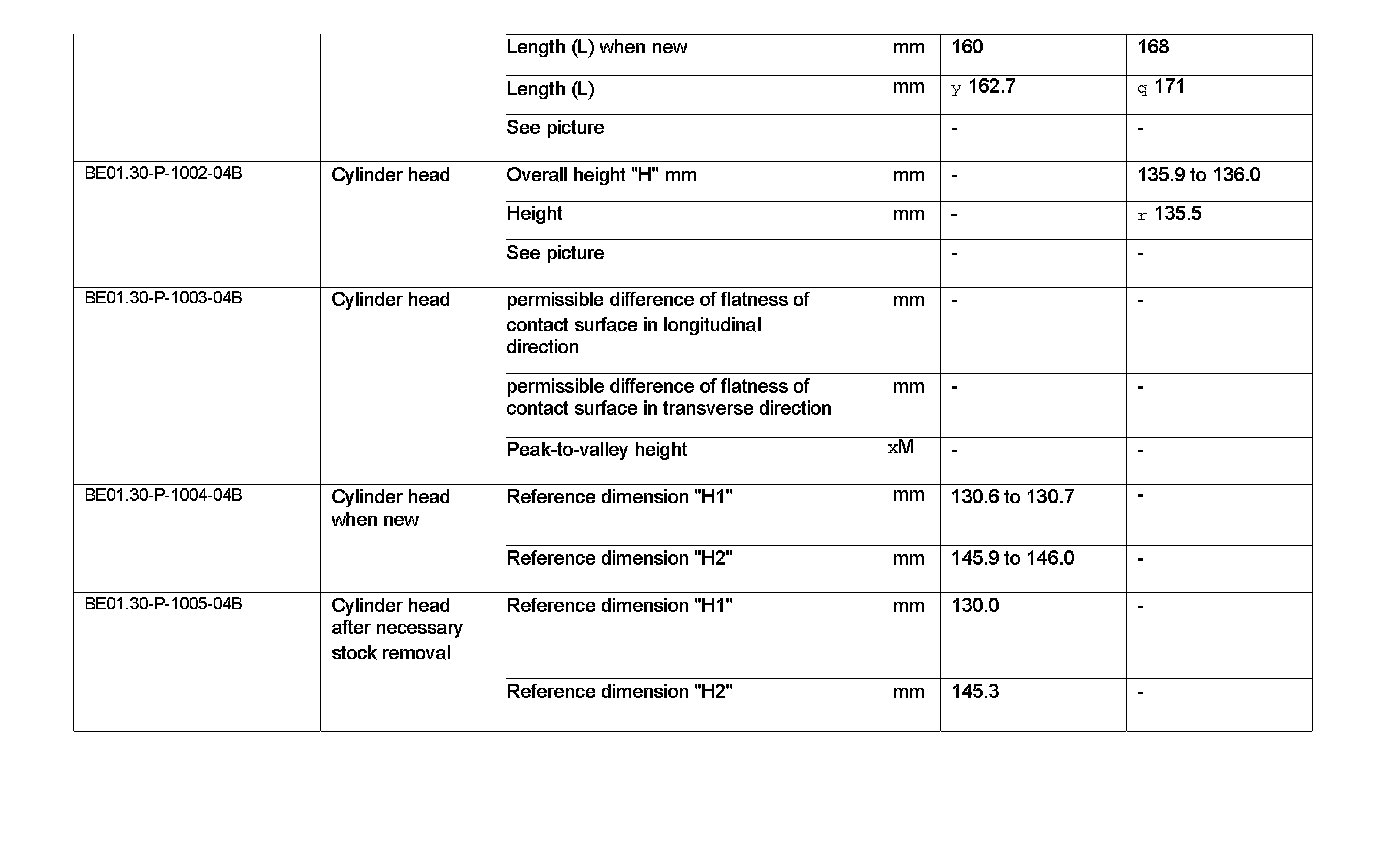

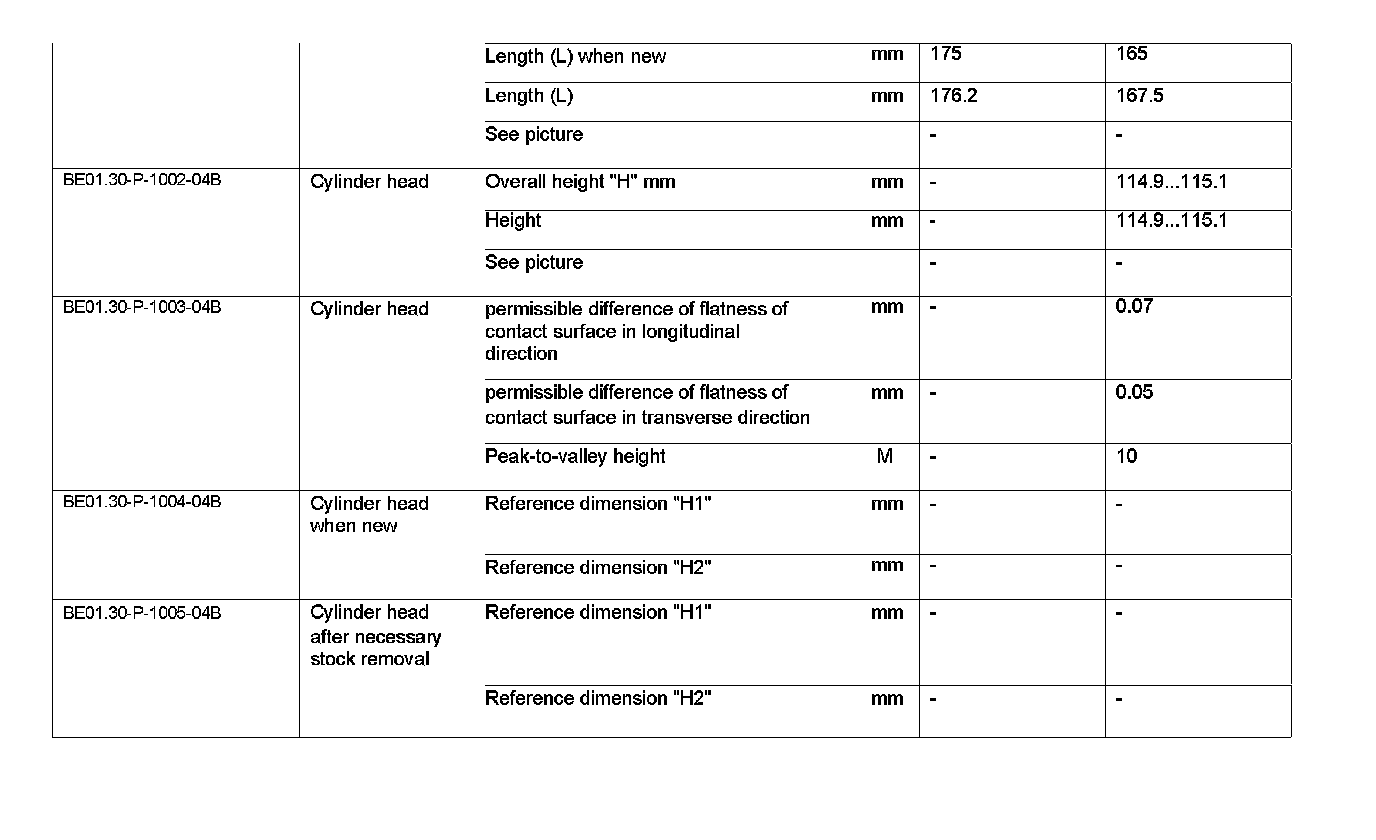

Cylinder Head/cylinder Head Bolts:

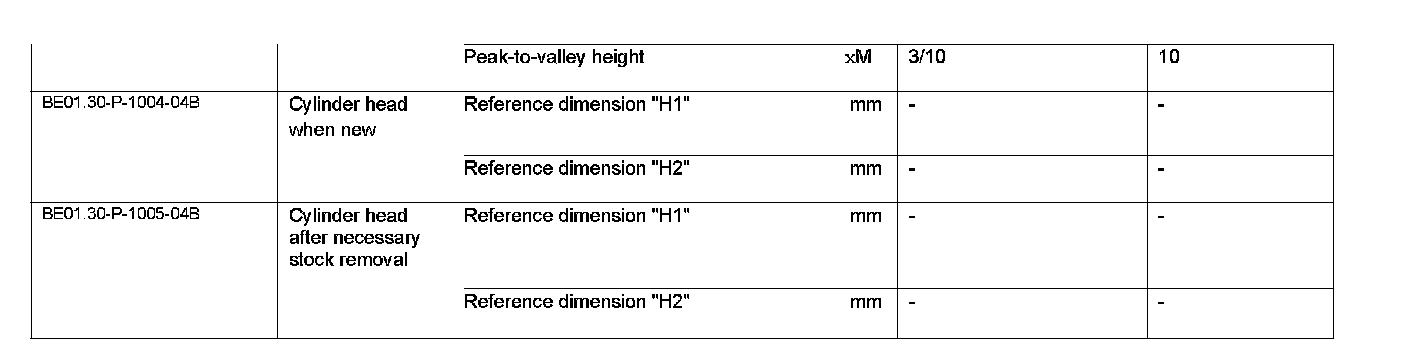

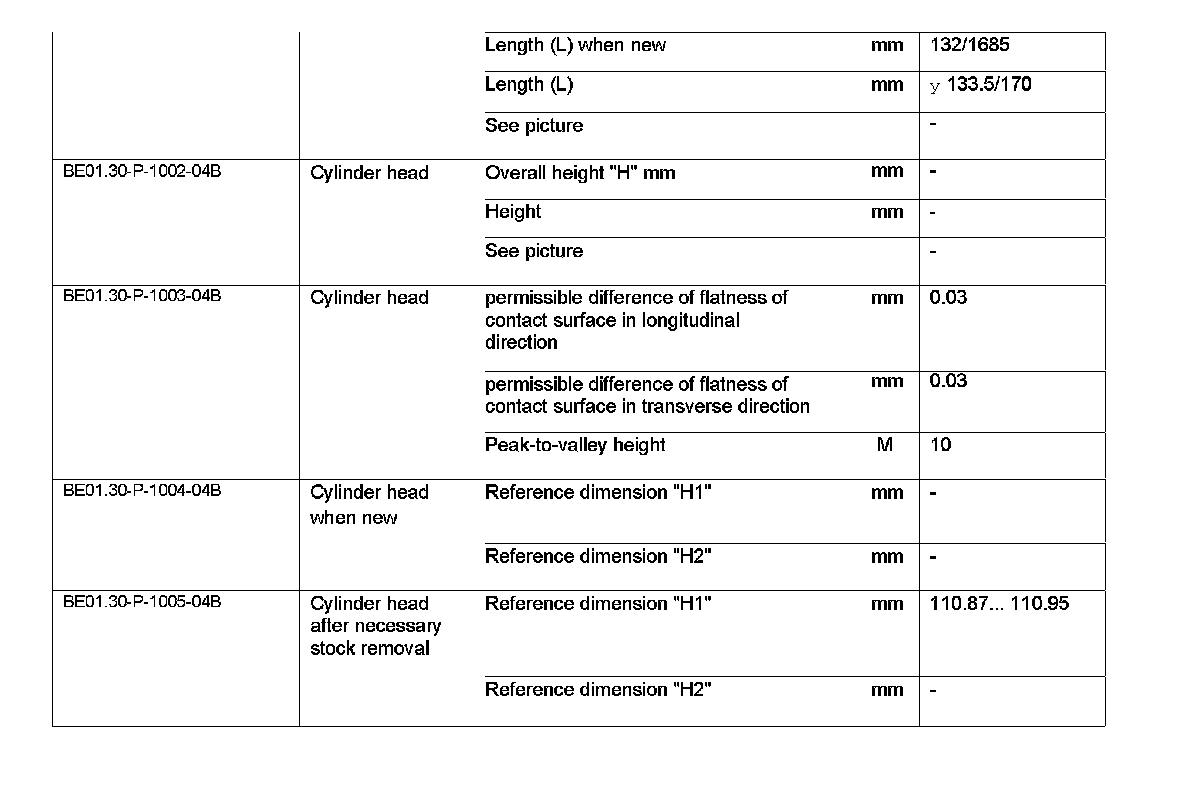

Cylinder Head/cylinder Head Bolts:

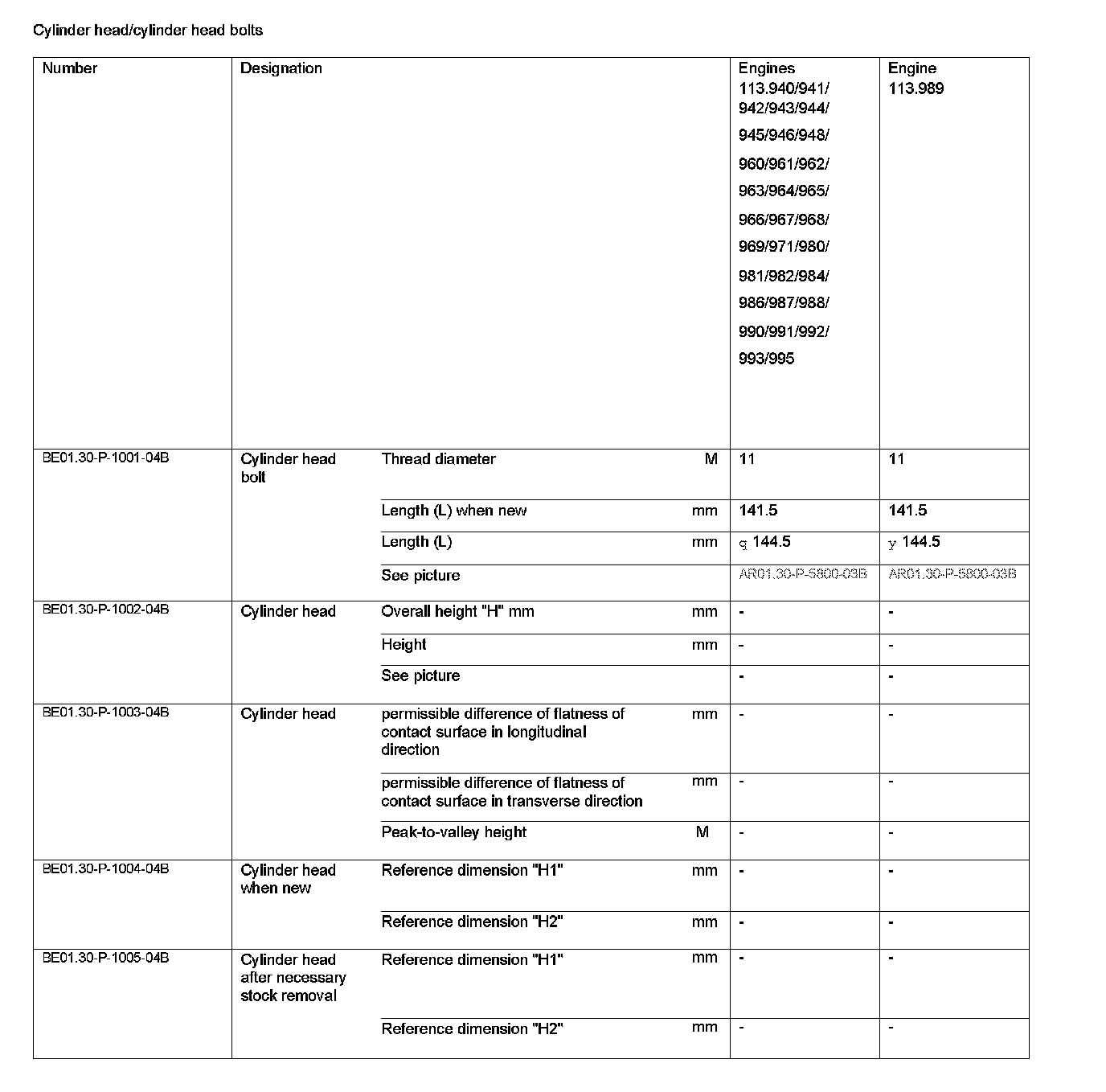

Cylinder Head/cylinder Head Bolts:

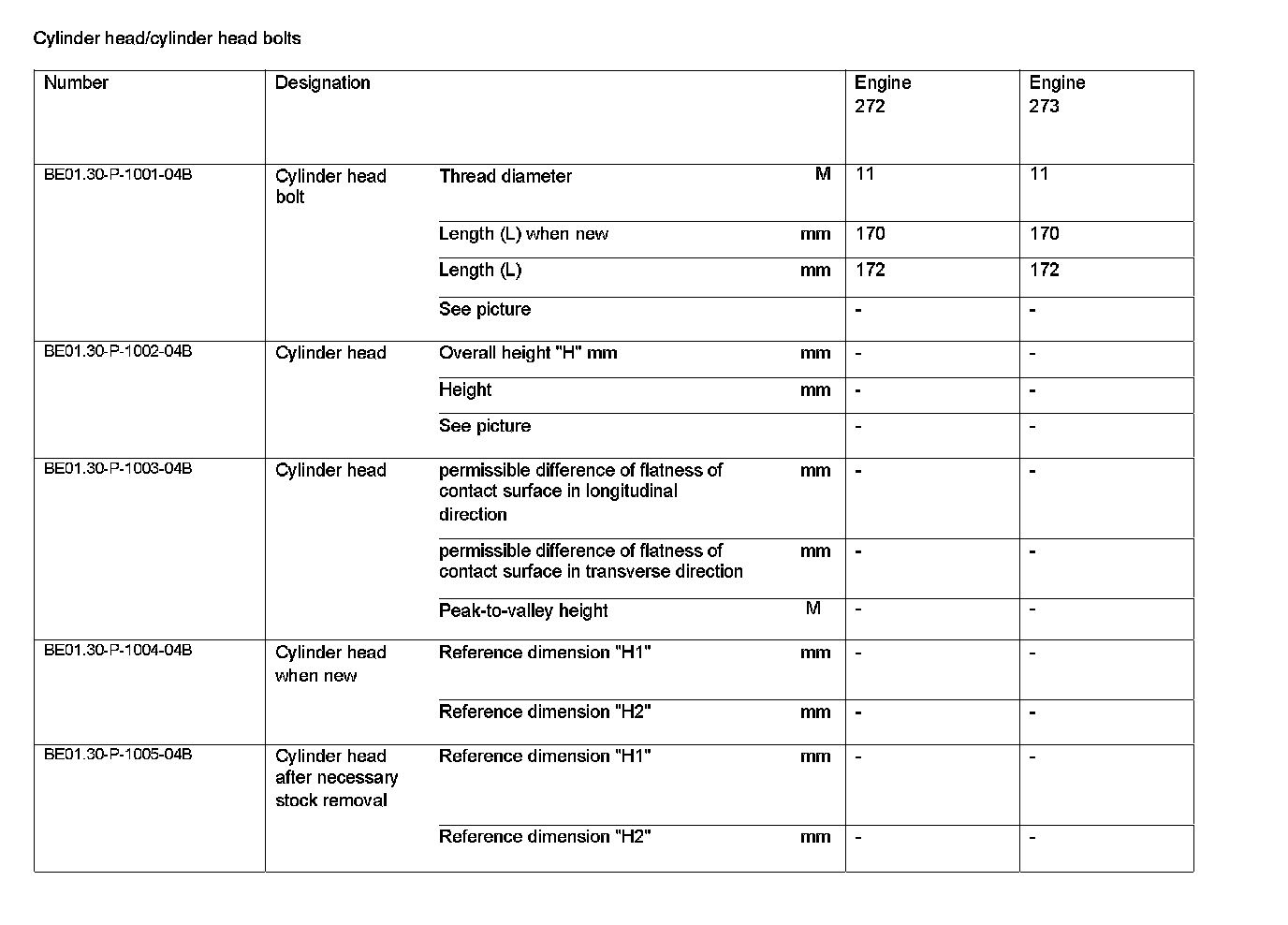

Cylinder Head/cylinder Head Bolts:

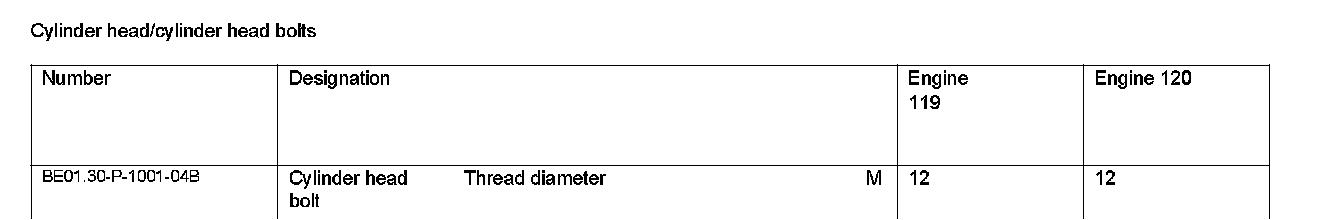

Cylinder Head/cylinder Head Bolts:

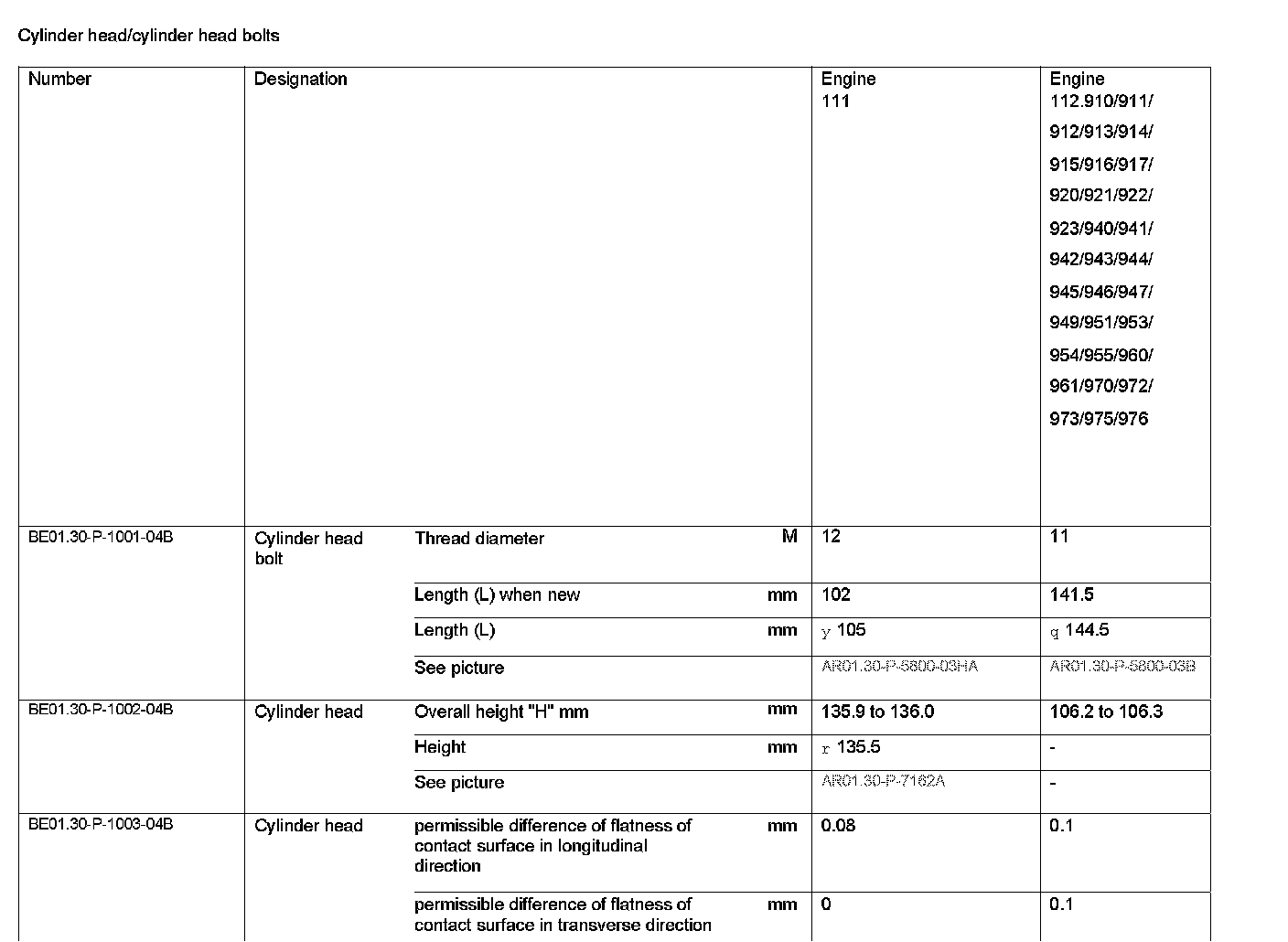

Cylinder Head/cylinder Head Bolts:




Cylinder Head/cylinder Head Bolts:




Cylinder Head/cylinder Head Bolts:




Cylinder Head/cylinder Head Bolts:




Cylinder Head/cylinder Head Bolts:
