Harmonic Balancer - Crankshaft Pulley

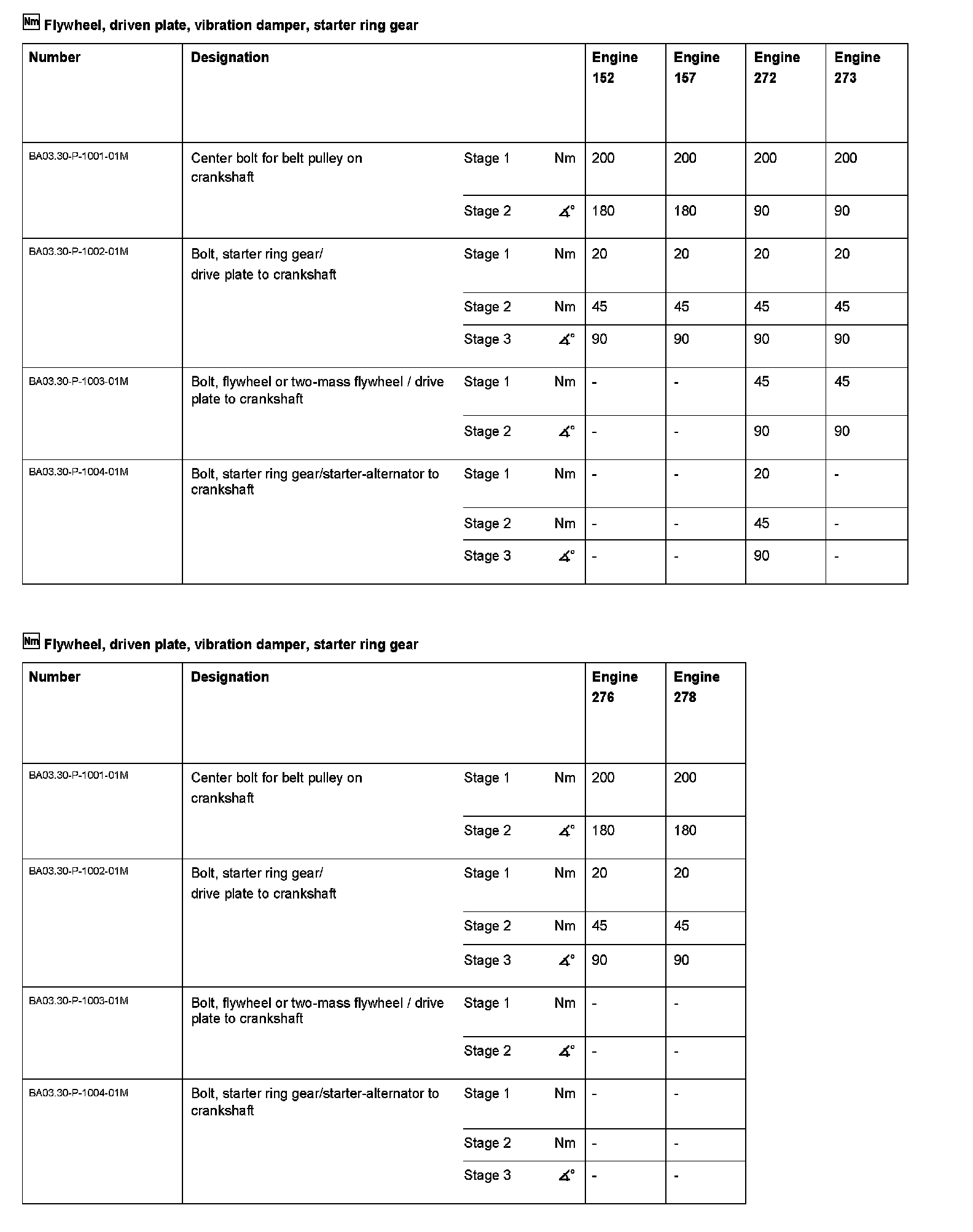

BA03.30-P-1000-01M Flywheel, Driven Plate, Vibration Damper, Starter Ring Gear
ENGINE 152, 157, 272, 273, 276, 278
