BE42.10-P-1000-15J Check Values For Rear Brake Pad



BE42.10-P-1000-15J Check values for rear brake pad

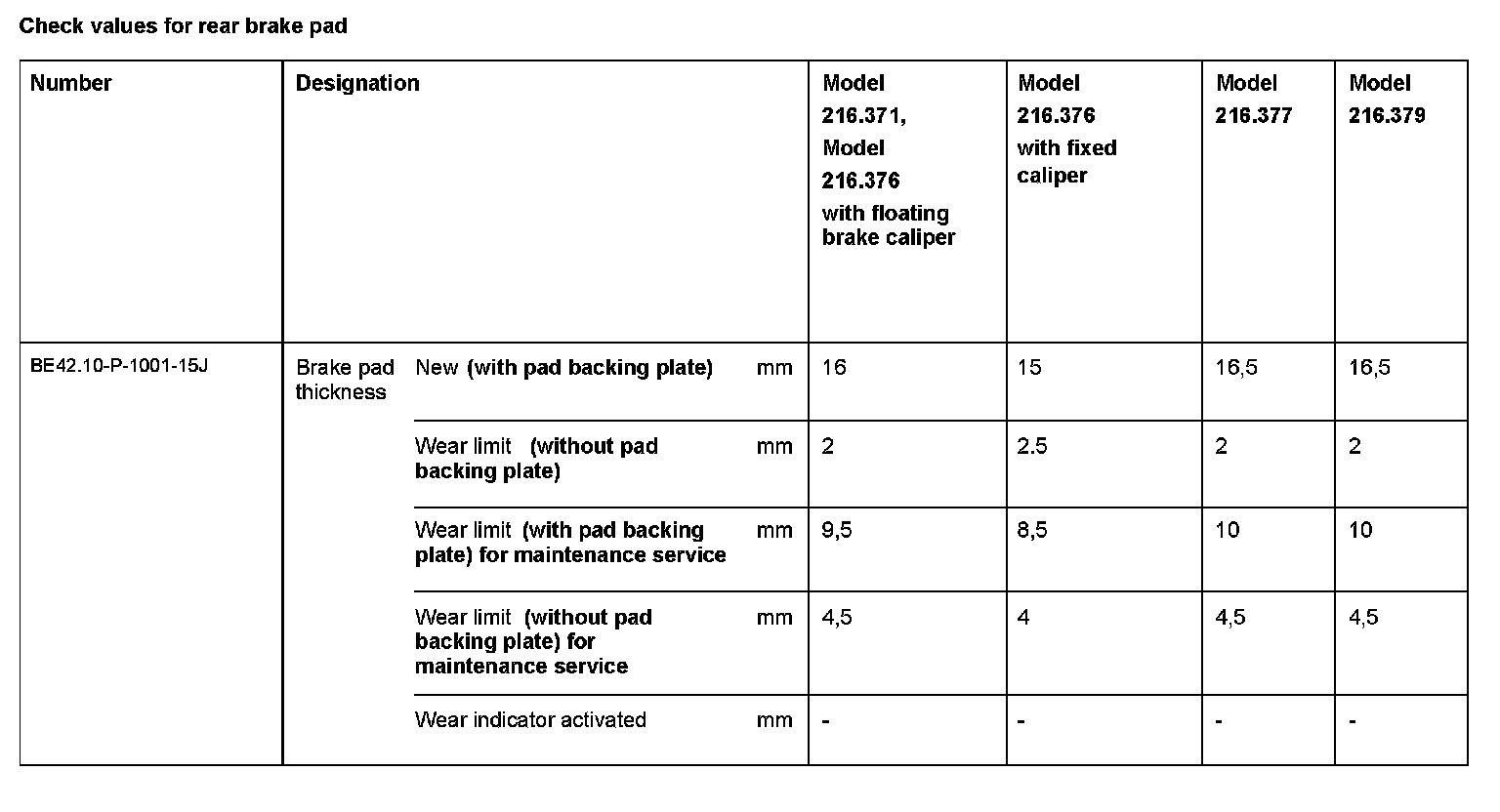

Check Values For Rear Brake Pad:

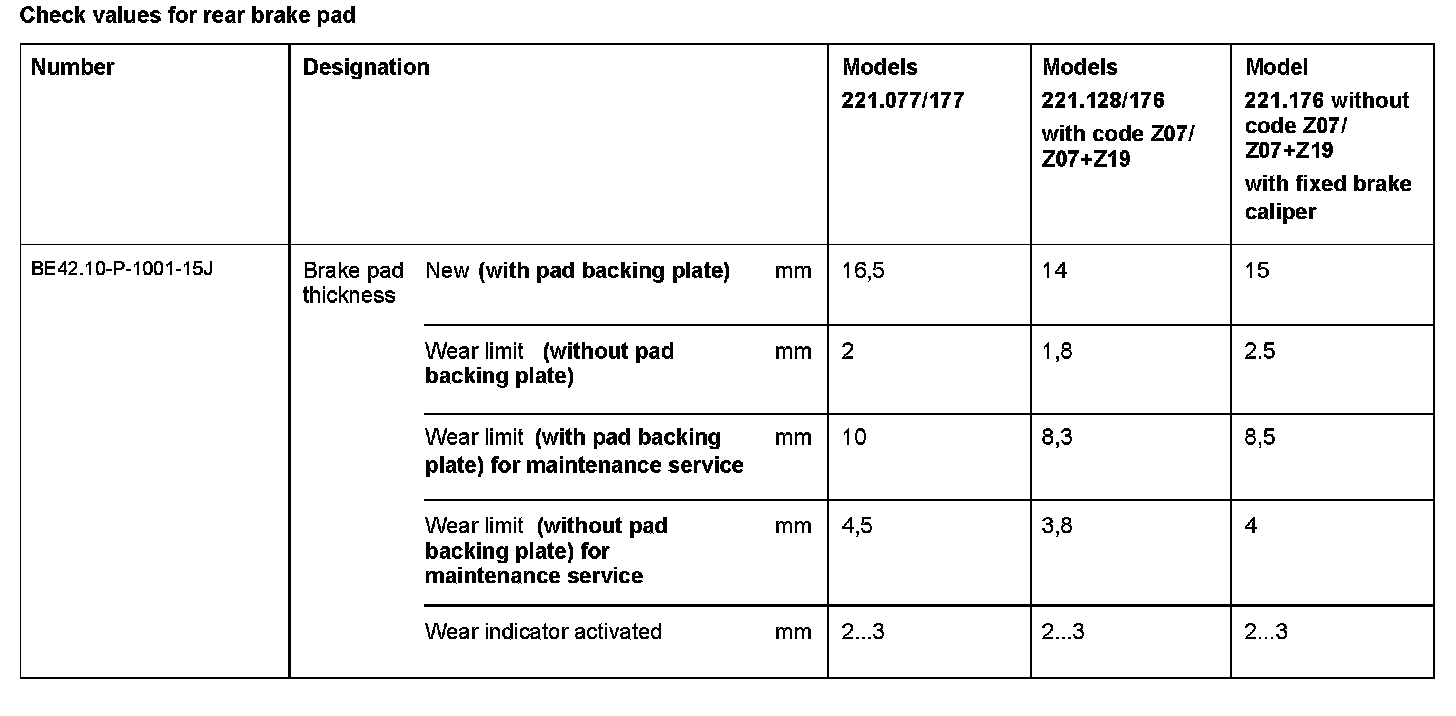

Check Values For Rear Brake Pad:

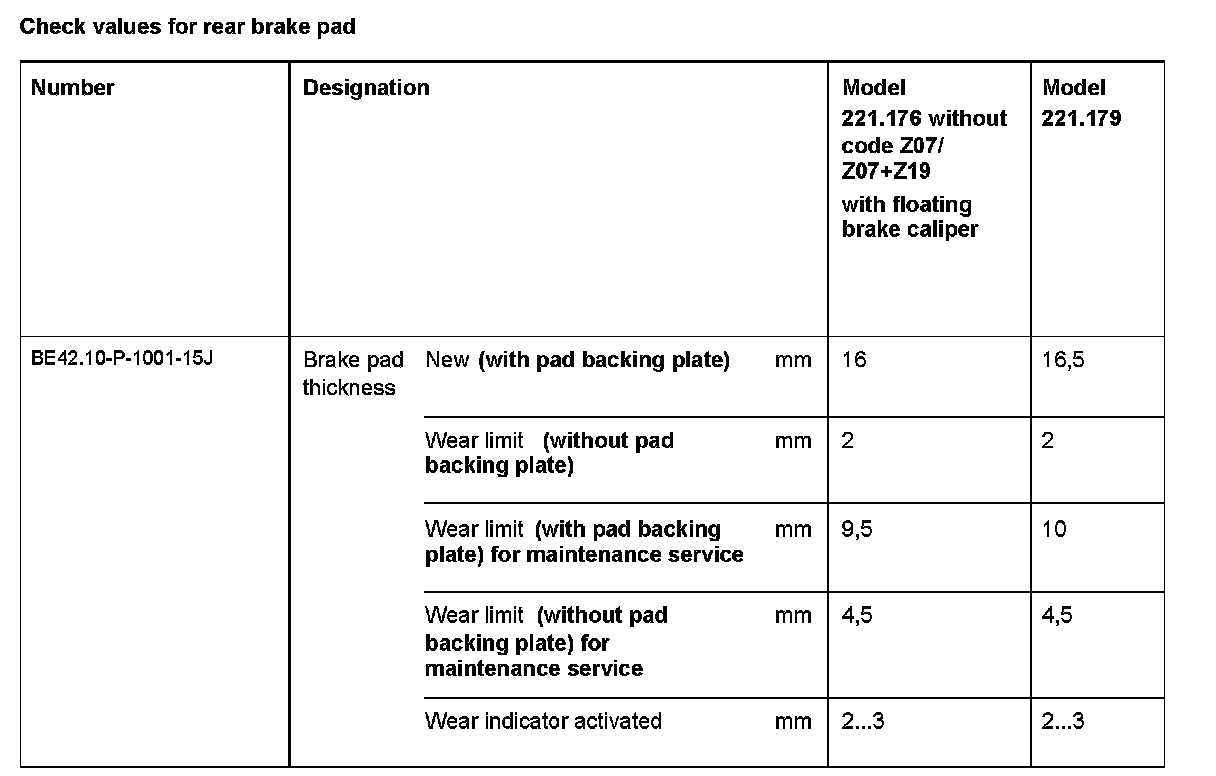

Check Values For Rear Brake Pad:

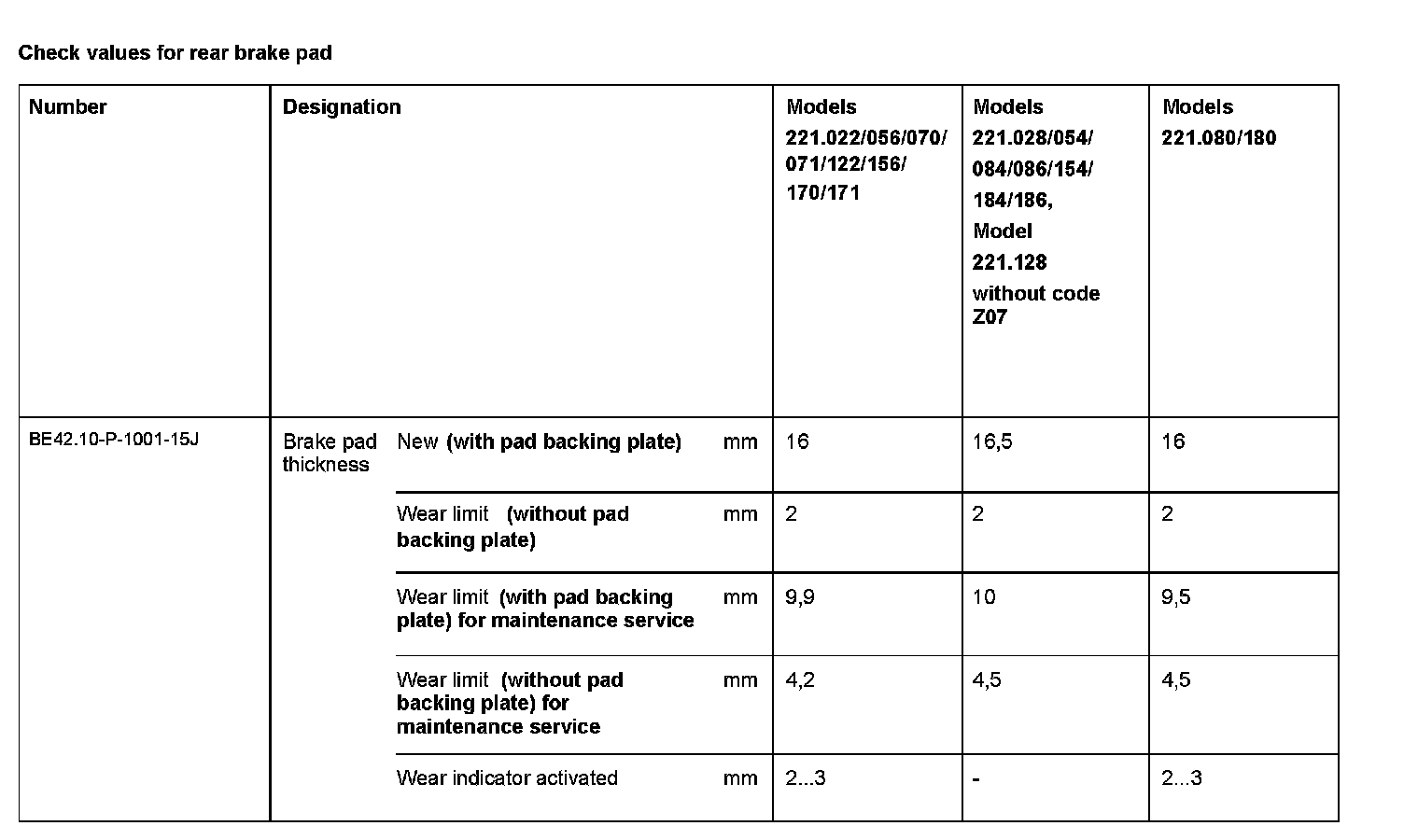

Check Values For Rear Brake Pad:
