Evaporator Temperature Sensor / Switch: Service and Repair
AR83.30-P-8085SX Remove And Install Evaporator Temperature Sensor

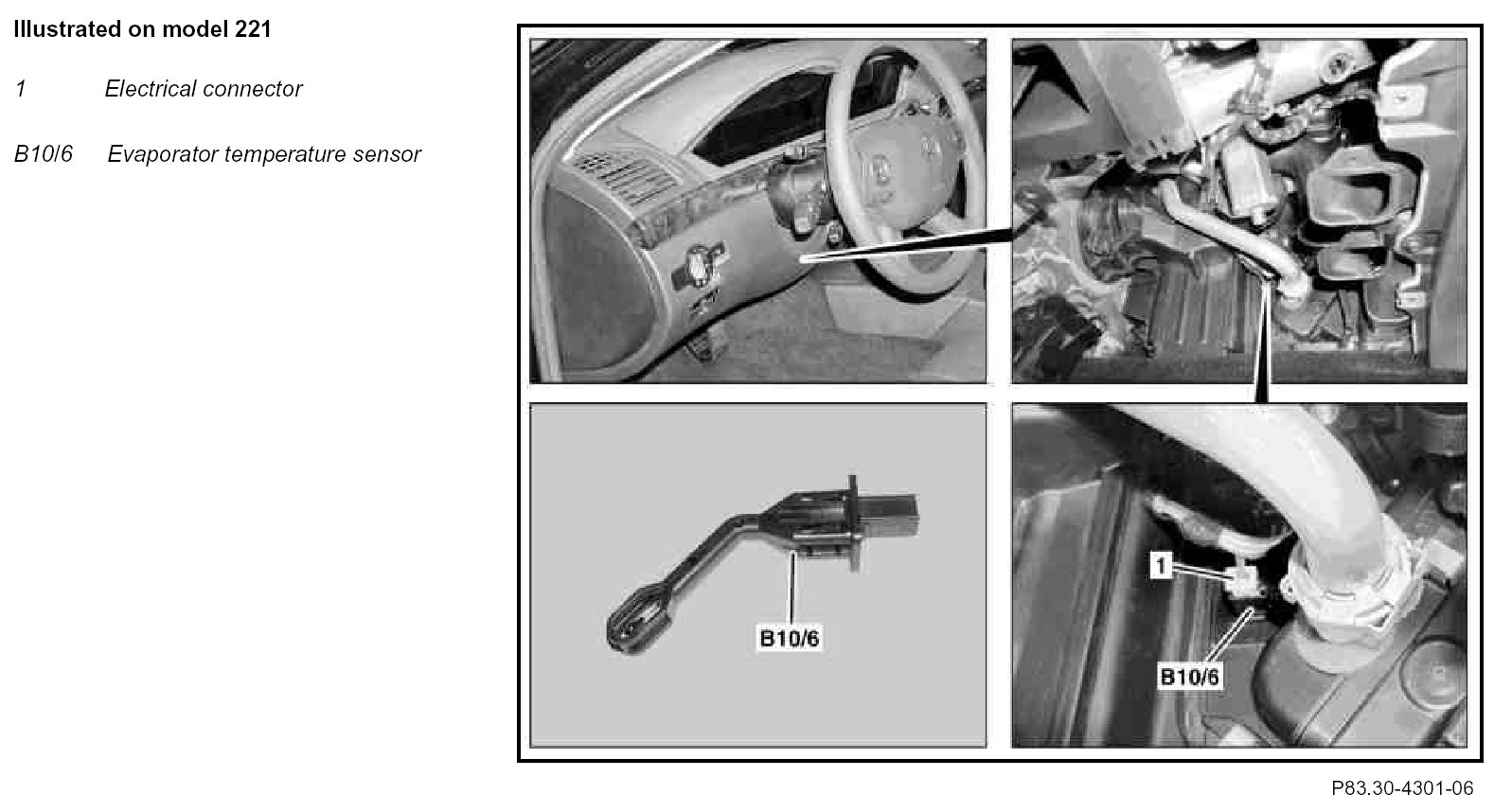

Component Identification:

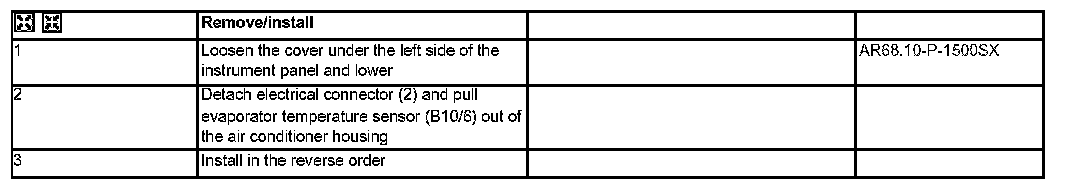

Steps 1 - 3:
