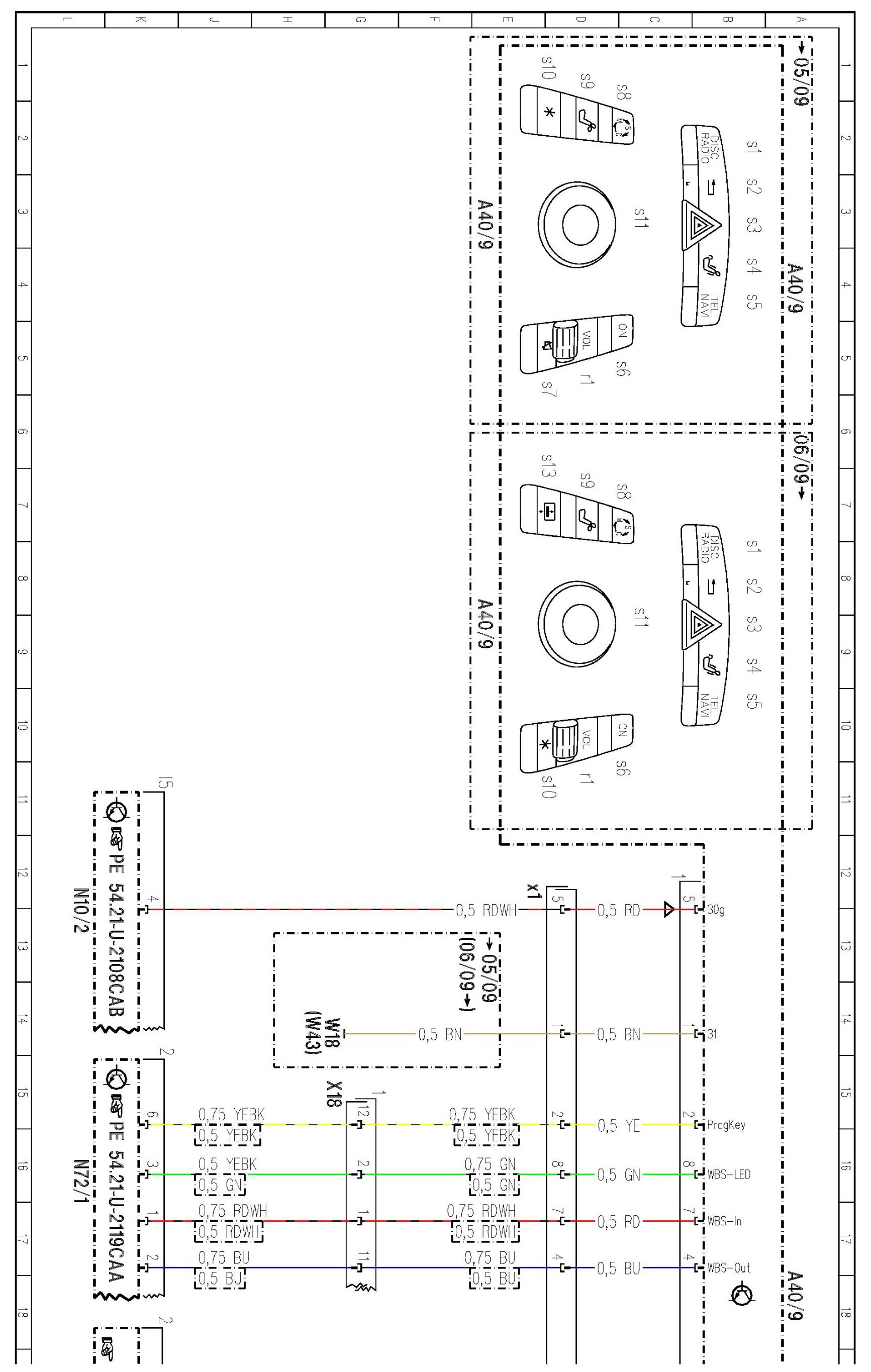

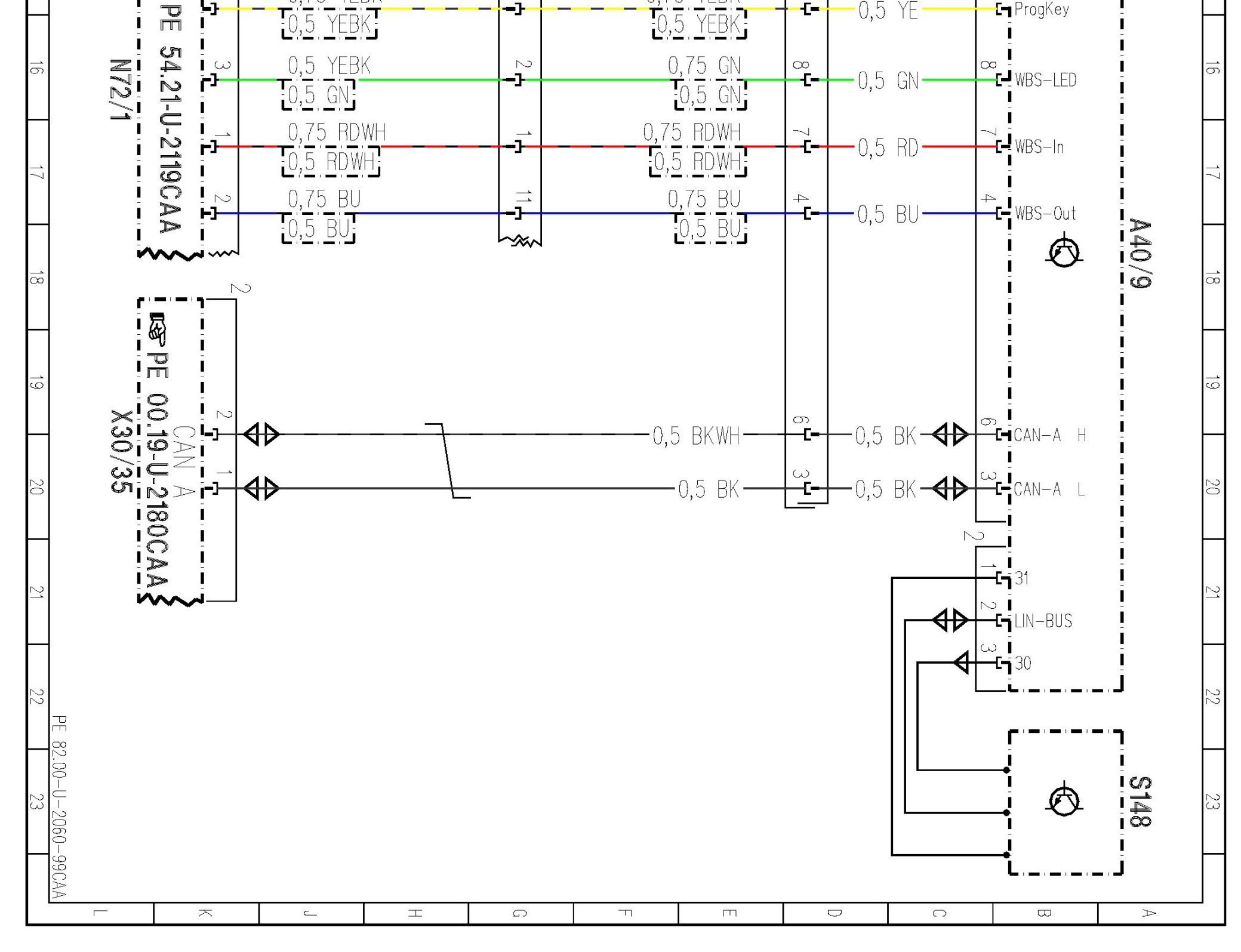

Integrated Accessory Switch Assembly: Diagrams

PE82.00-U-2060CAA Front Central Operating Unit

MODEL 216

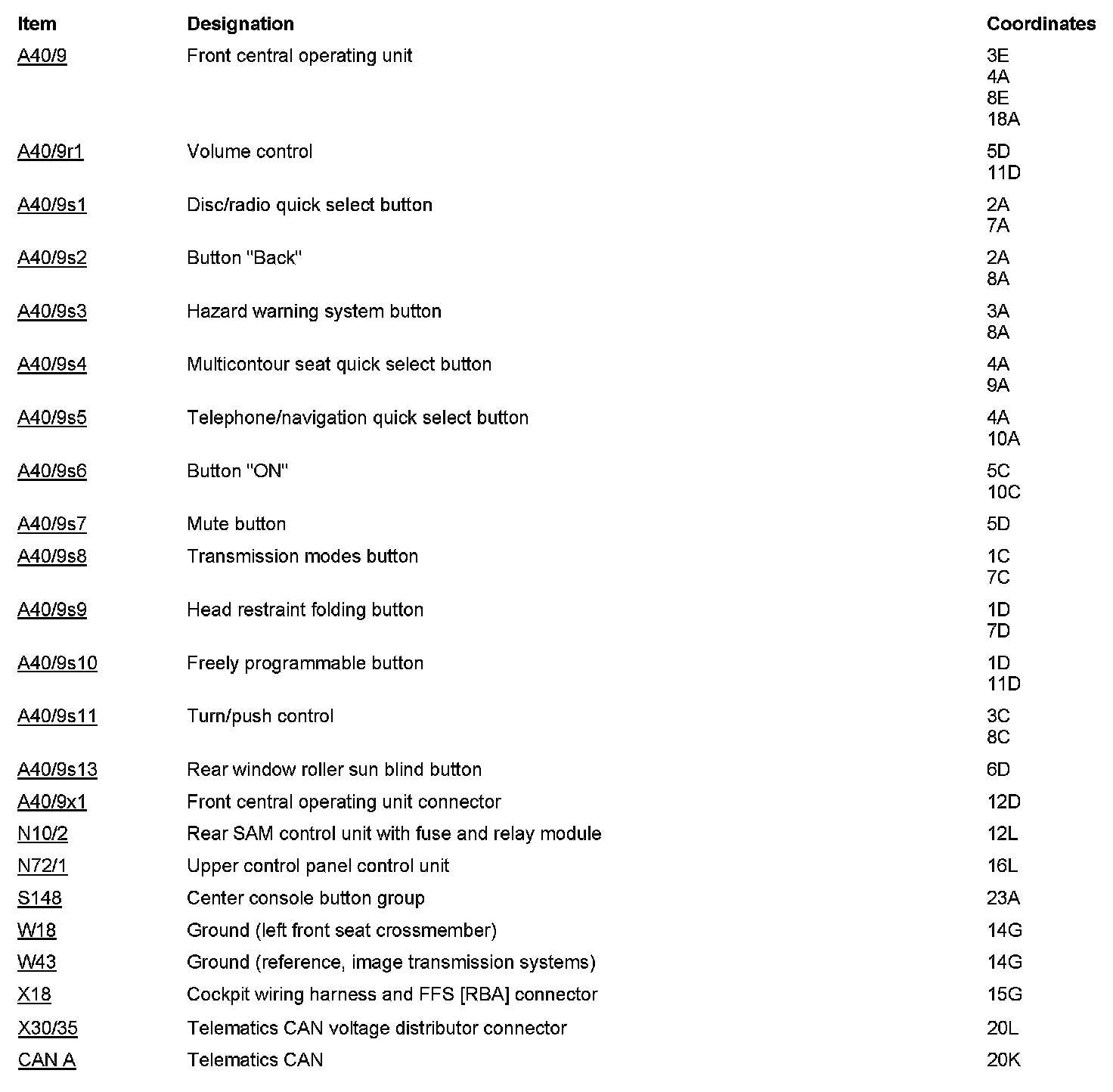

- Control unit A40/9































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
