Impact Sensor: Service and Repair
AR91.60-P-0730SC Remove/install Sensor For Sidebag/Windowbag

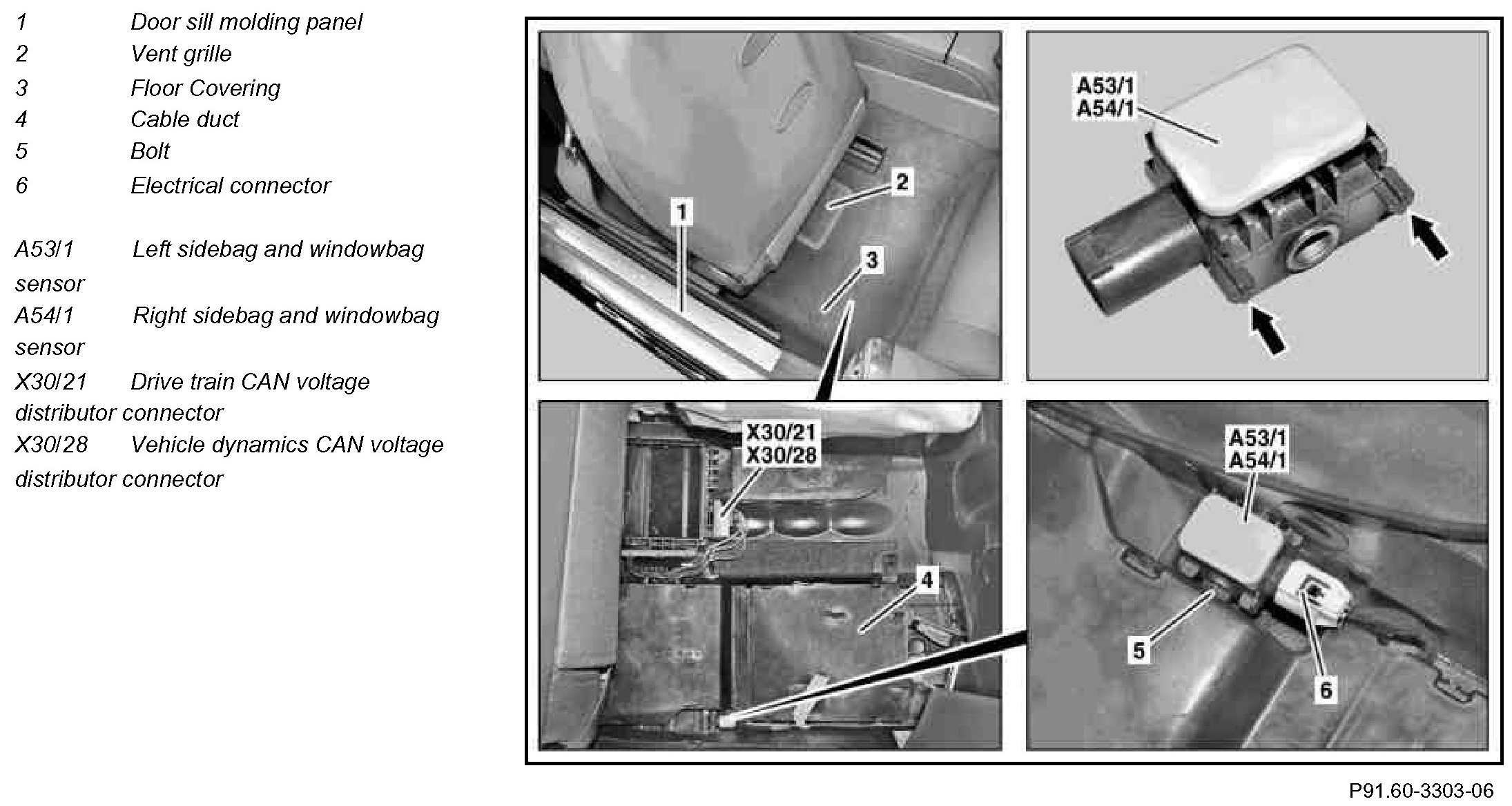

Component Identification:

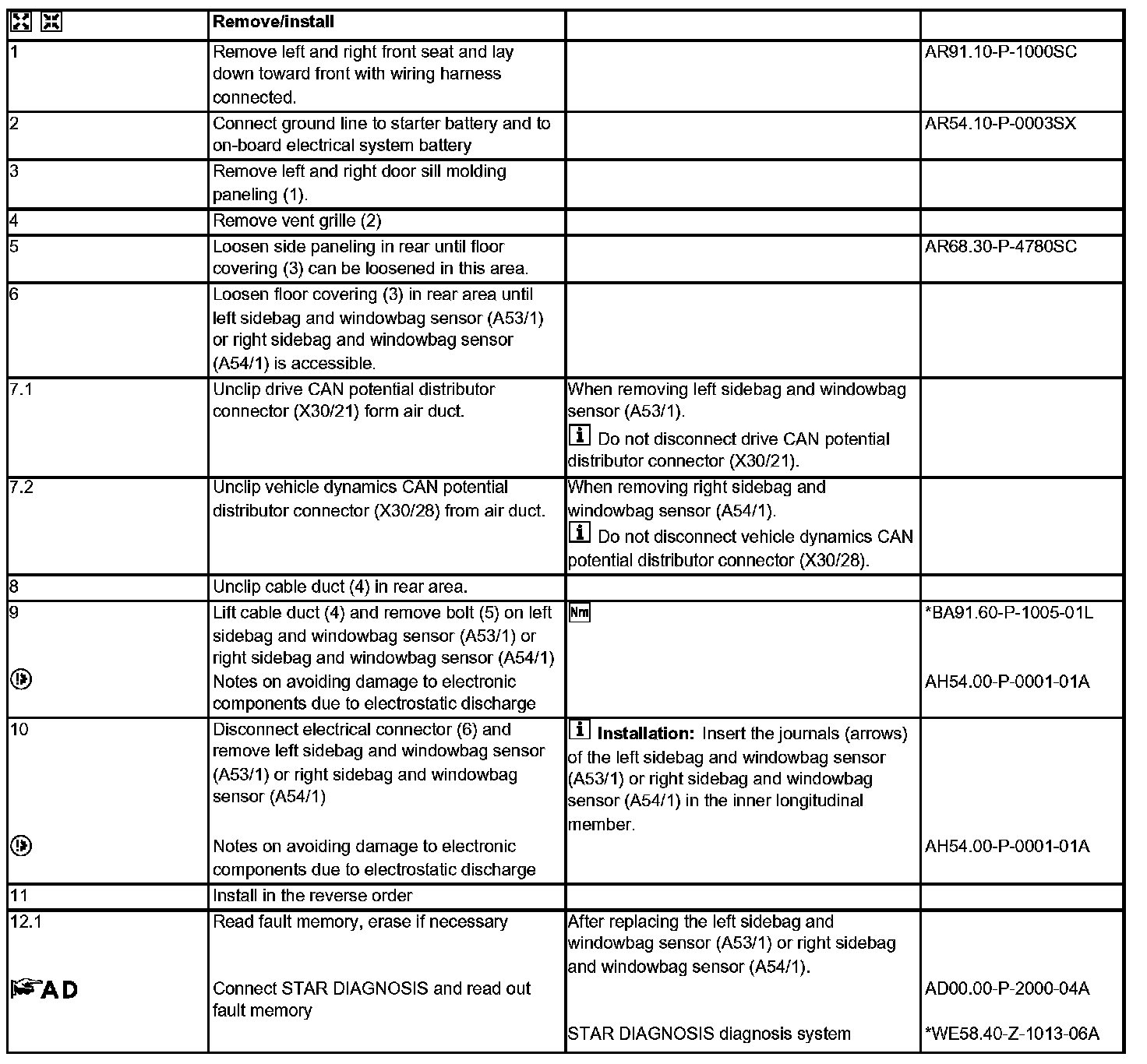

Steps 1-12.1:

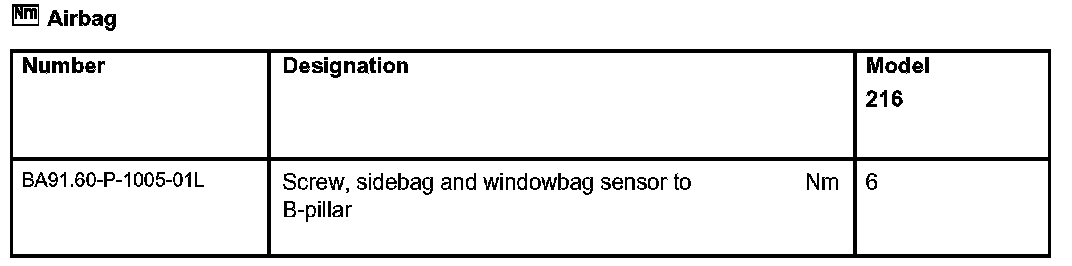

Airbag:
Workshop Equipment/MB Testers:
