AR91.40-P-1010SC Remove/Install Seat Belt (Front Seat)



AR91.40-P-1010SC Remove/install Seat Belt (front Seat)

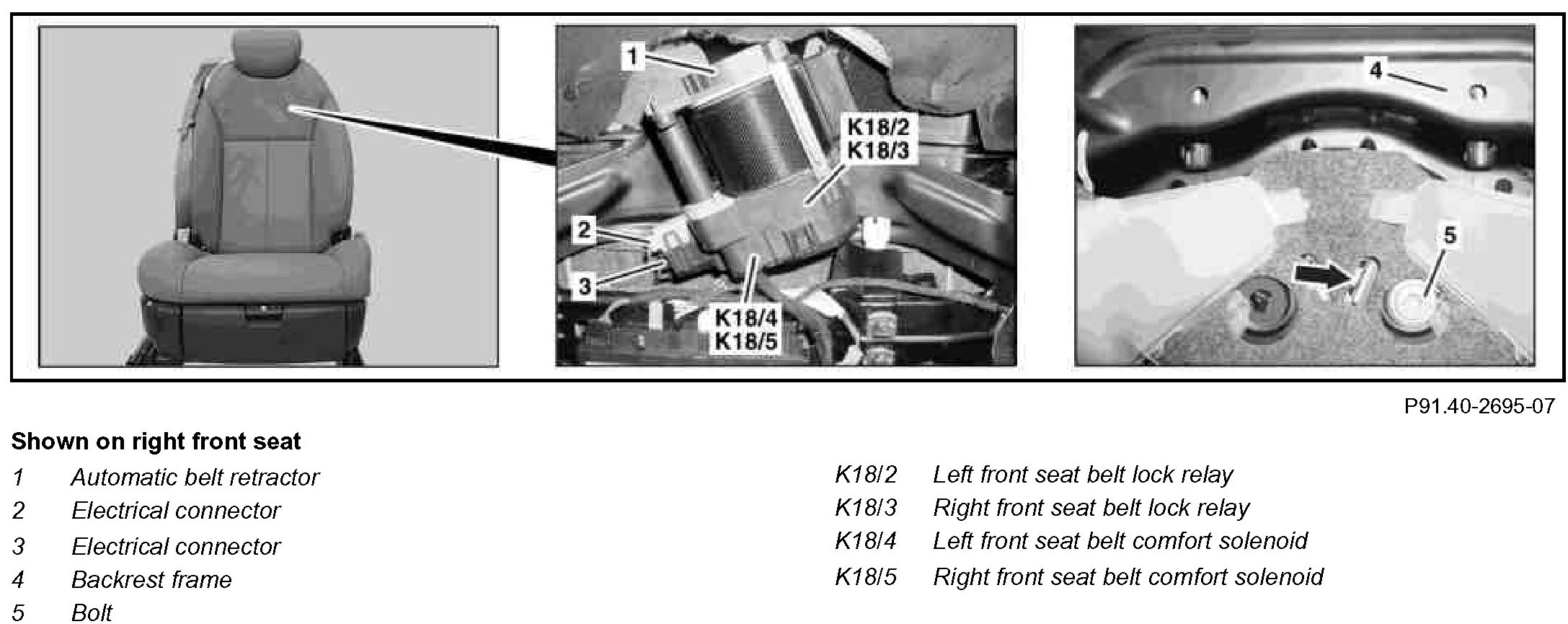

Component Identification:

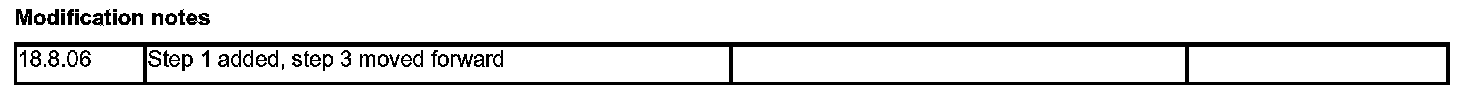

Modification Notes:

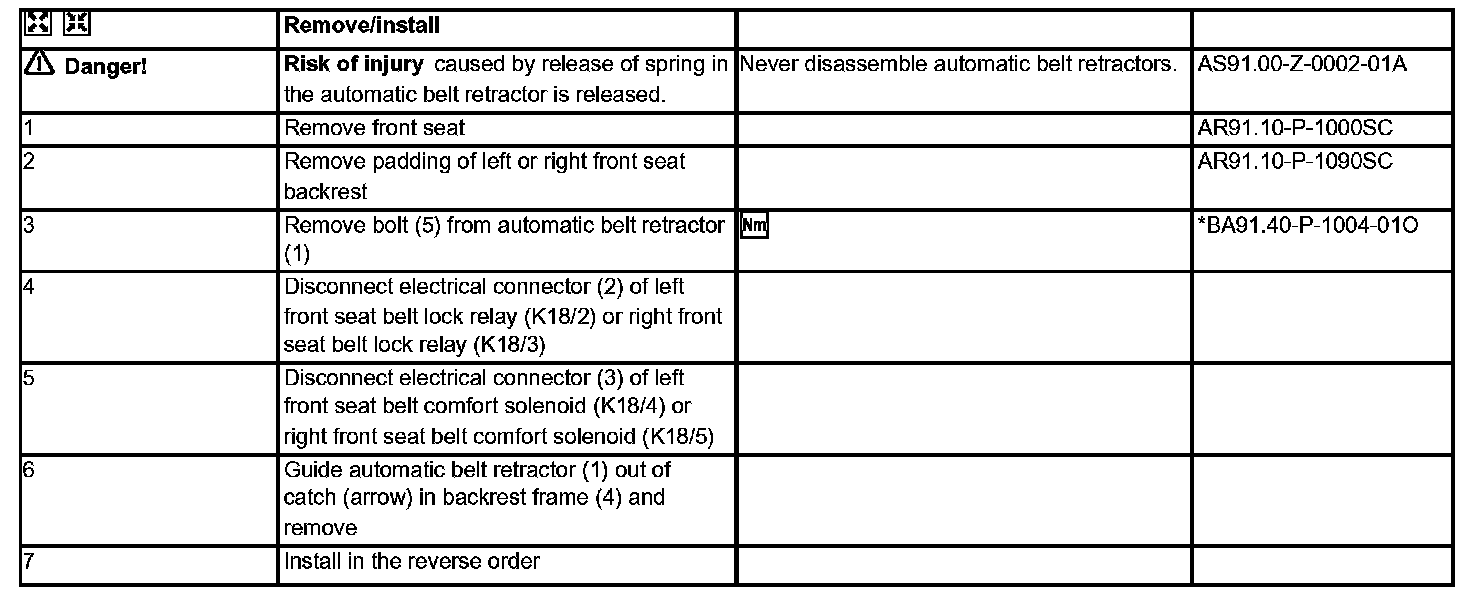

Steps 1-7:

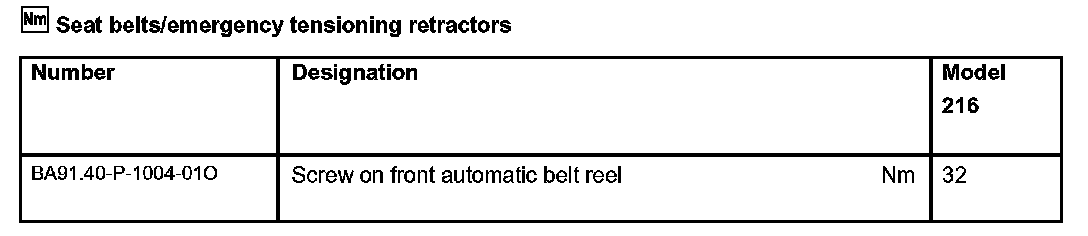

Seat Belts/Emergency Tensioning Retractors:
