AR91.40-P-0681SC Remove/Install Rear Seat Belts
AR91.40-P-0681SC Remove/Install Rear Seat Belts
AR91.40-P-0681SC Remove/install Rear
Seat Belts

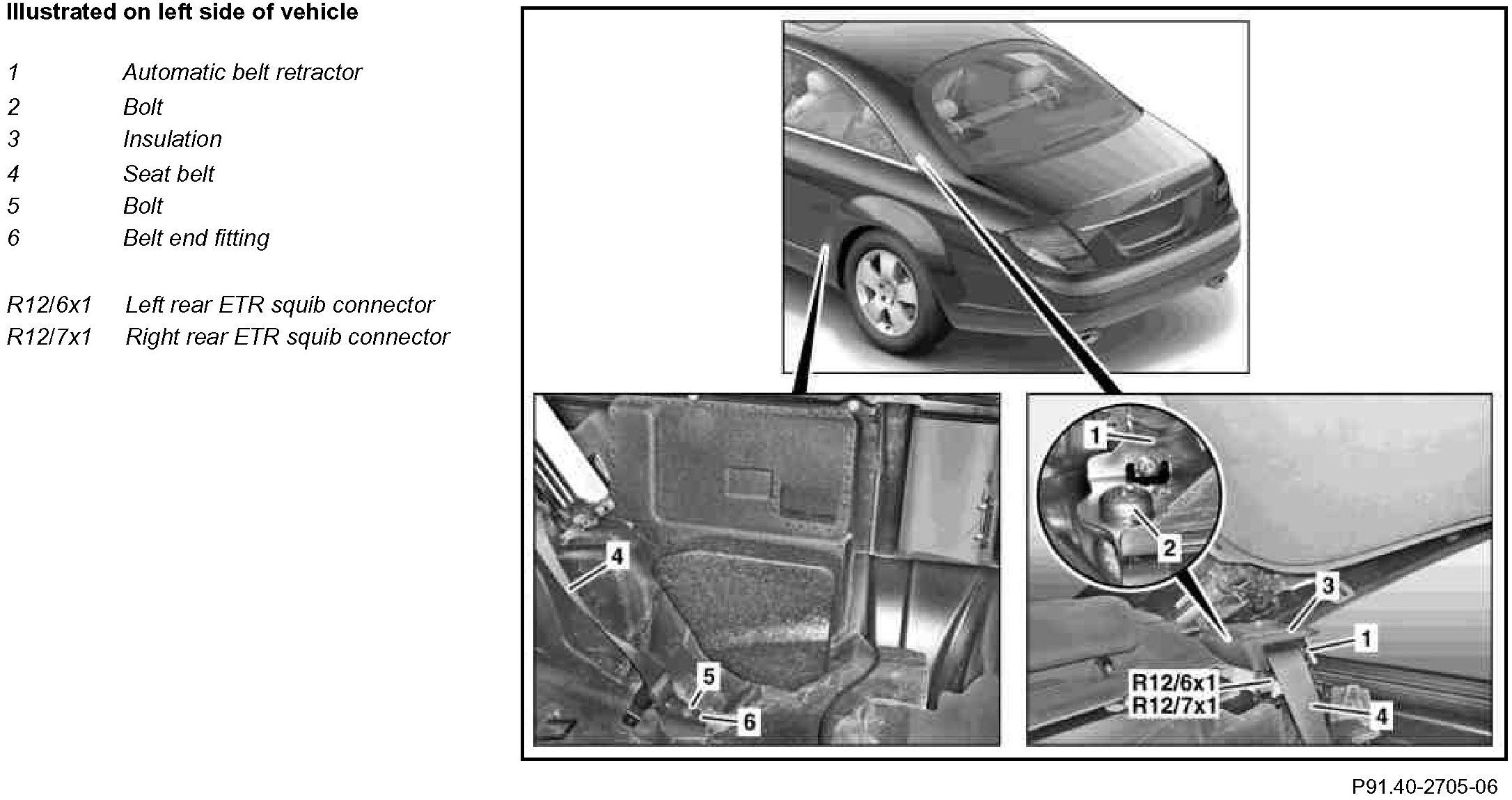

Component Identification:

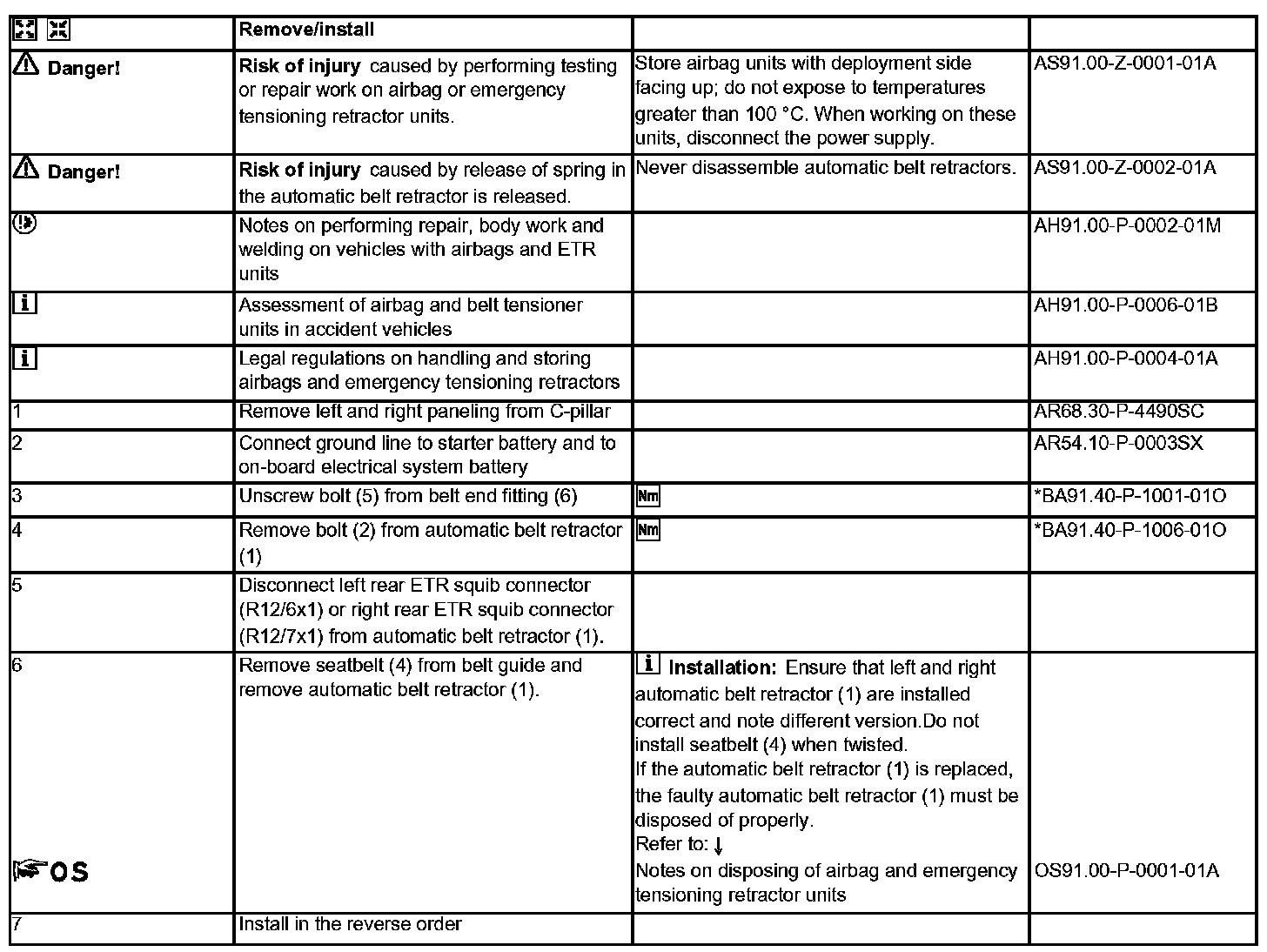

Steps 1-7:

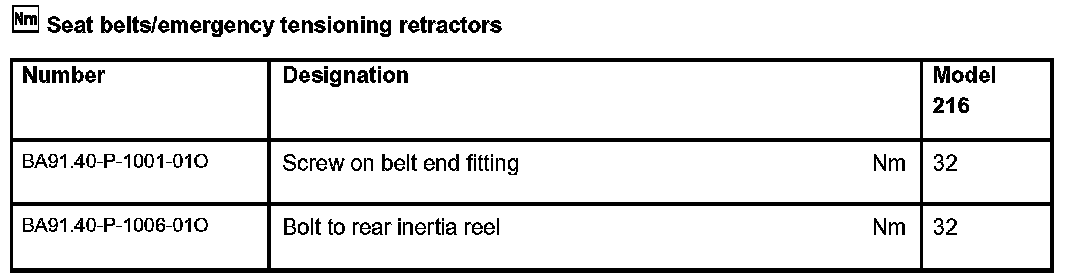

Seat Belts/Emergency Tensioning Retractors:
