AR91.40-P-1515SC Remove/Install Seat Belt Buckle (Front Seat)



AR91.40-P-1515SC Remove/install Seat Belt Buckle (Front Seat)

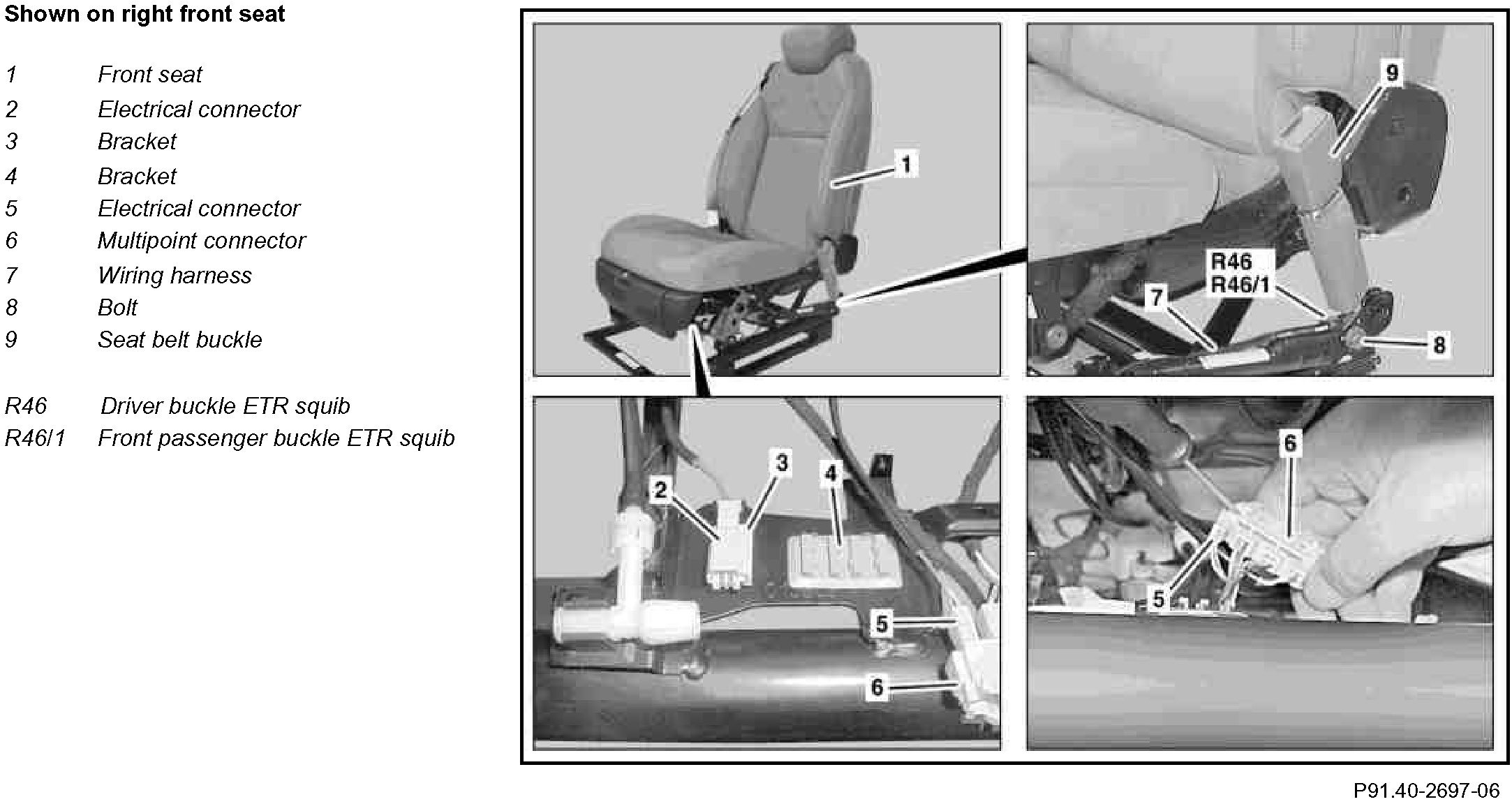

Component Identification:

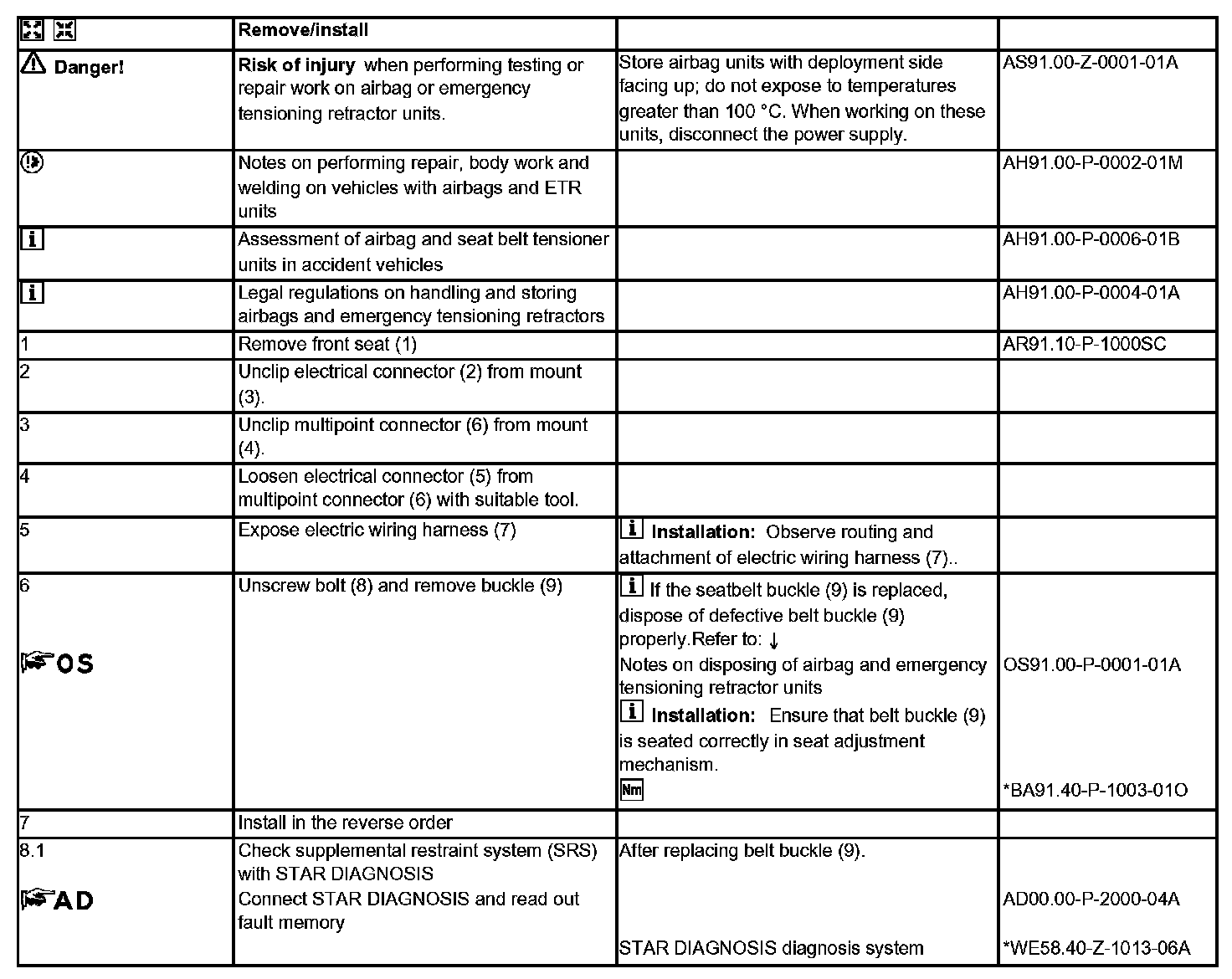

Steps 1-8.1:

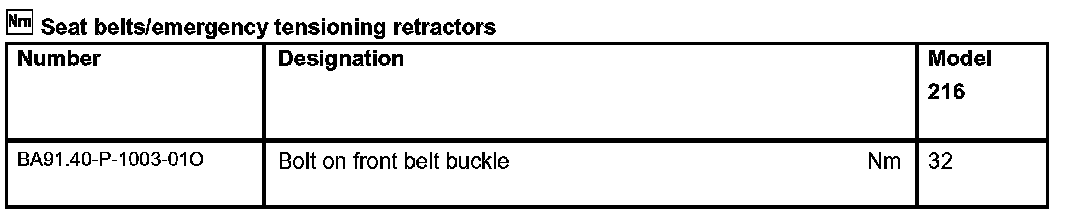

Seat Belts/Emergency Tensioning Retractors:

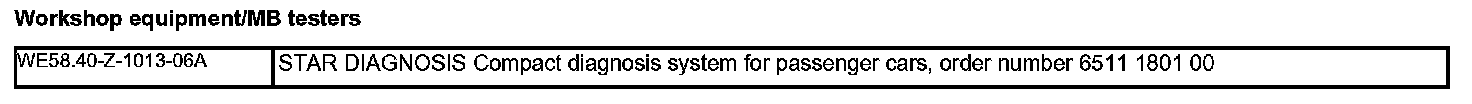

Workshop Equipment/MB Testers:
