Air Bag Control Module: Service and Repair
AR91.60-P-0624SX Remove/install Restraint Systems Control Unit
Component Identification:

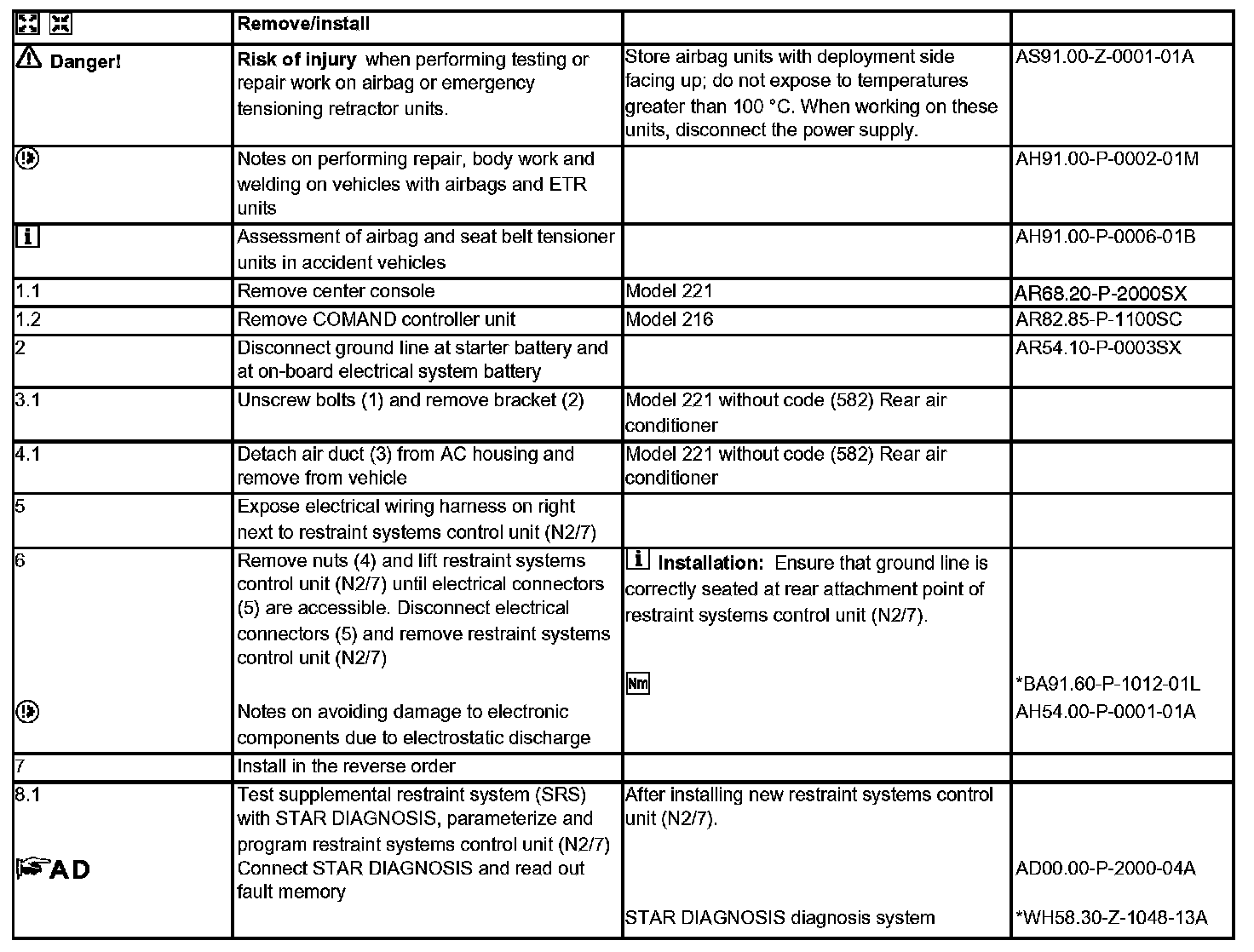

Steps 1-8.1:

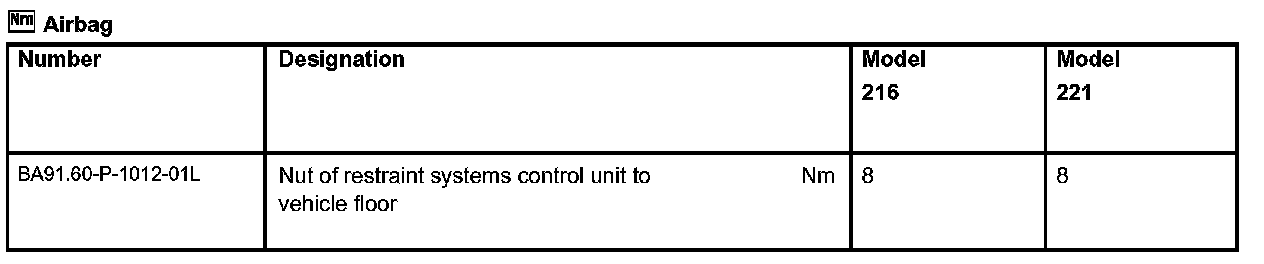

Airbag:

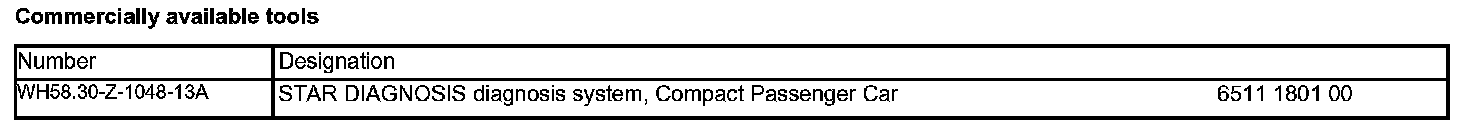

Commercially Available Tools:
