CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Description and Operation
>>

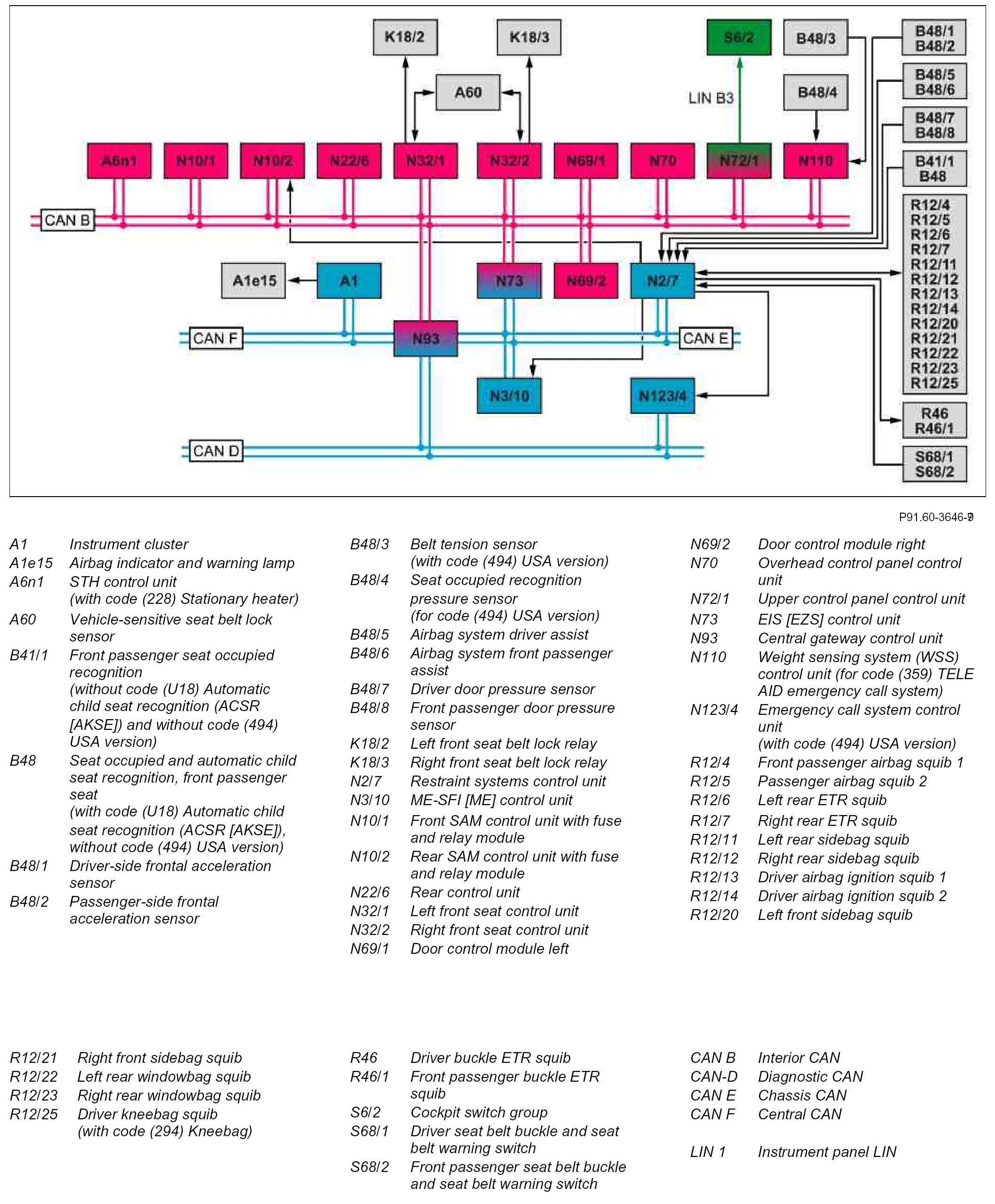

GF91.60-P-0002-03LA Supplemental Restraint System (SRS), Block Diagram
GF91.60-P-0002-03LA Supplemental Restraint System (SRS), Block Diagram
GF91.60-P-0002-03LA Supplemental Restraint System (SRS), Block Diagram
Component Identification:
