AR91.60-P-0694SX Remove/Install Sidebag Unit In the Rear



AR91.60-P-0694SX Remove/install Sidebag Unit In The Rear
- except CODE (Z07) Top protection [models 221]

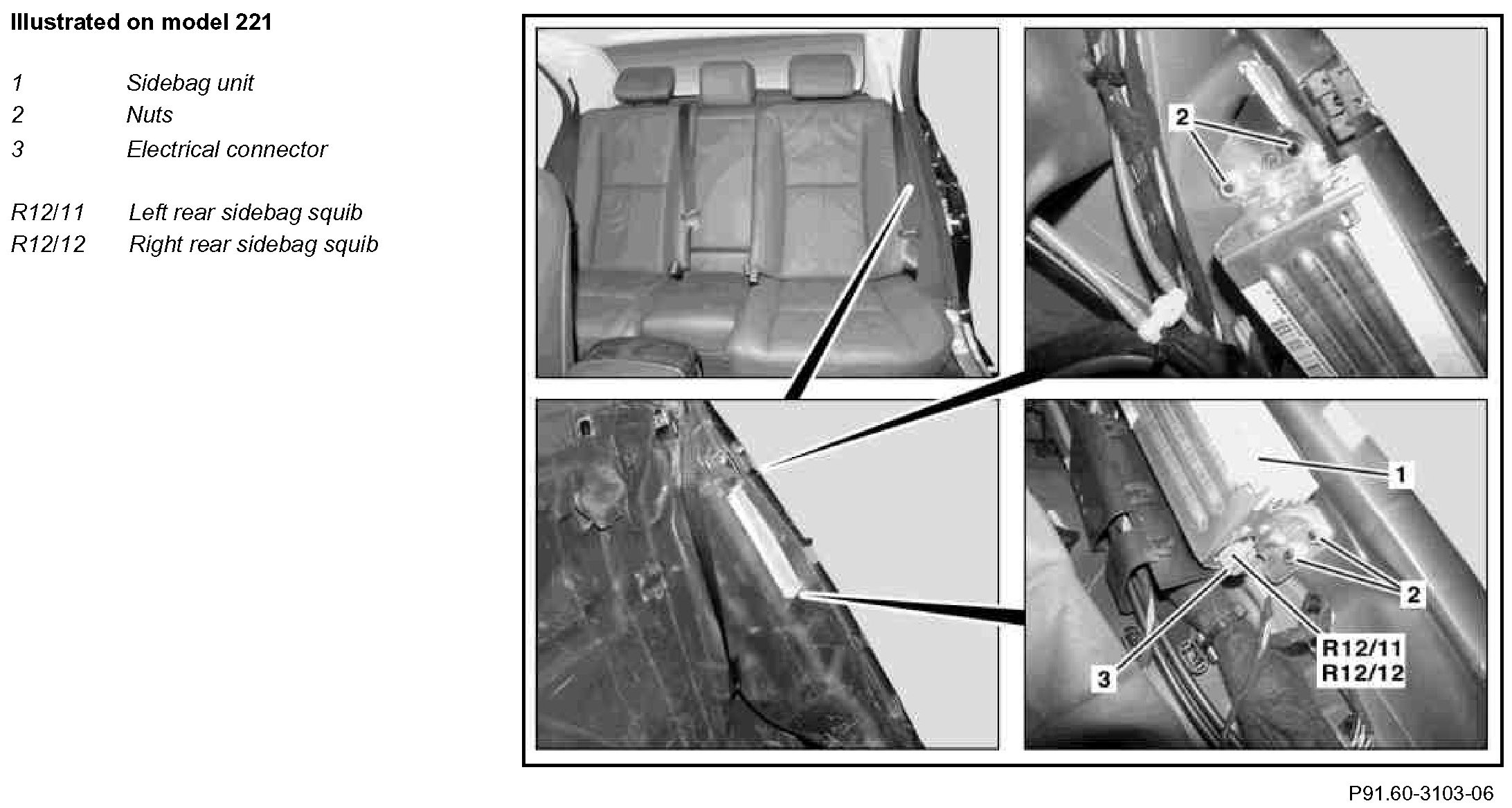

Component Identification:

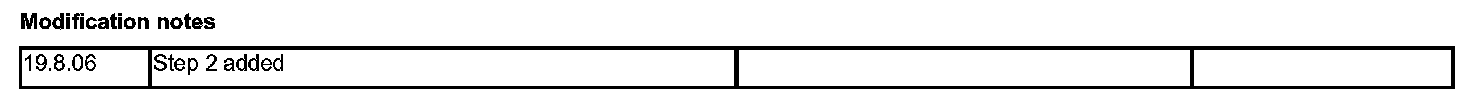

Modification Notes:

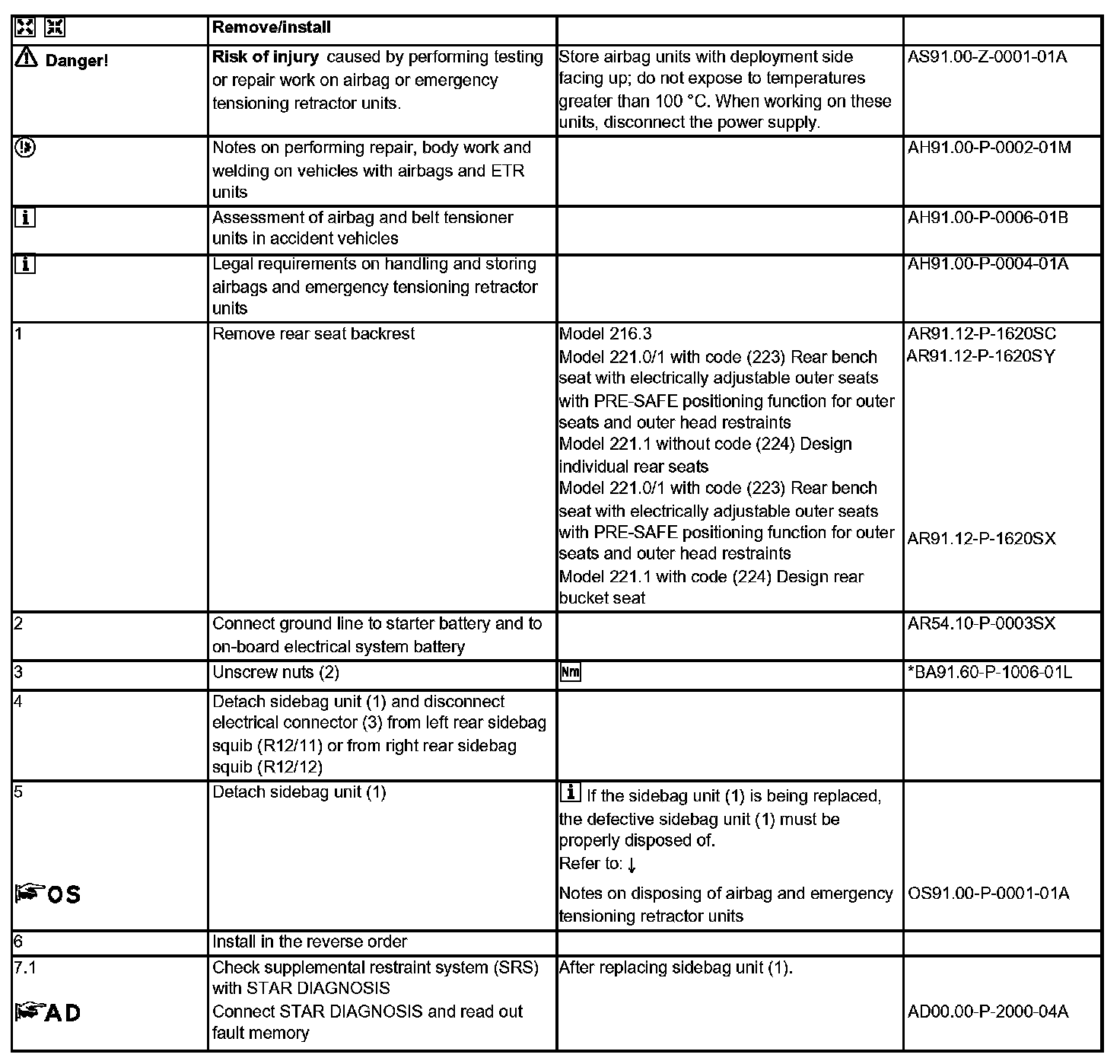

Steps 1-7.1:

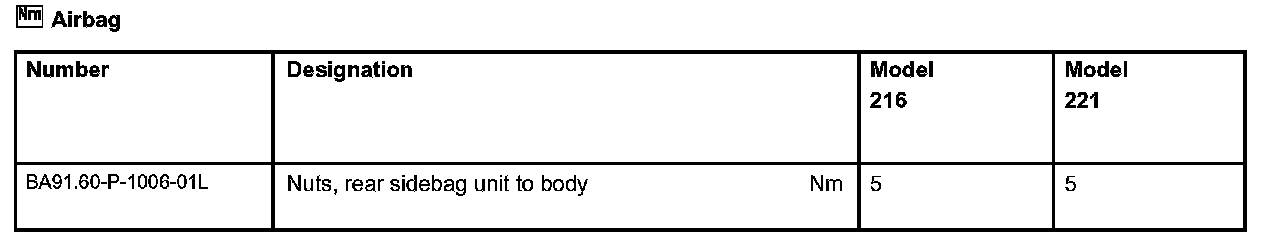

Airbag:
