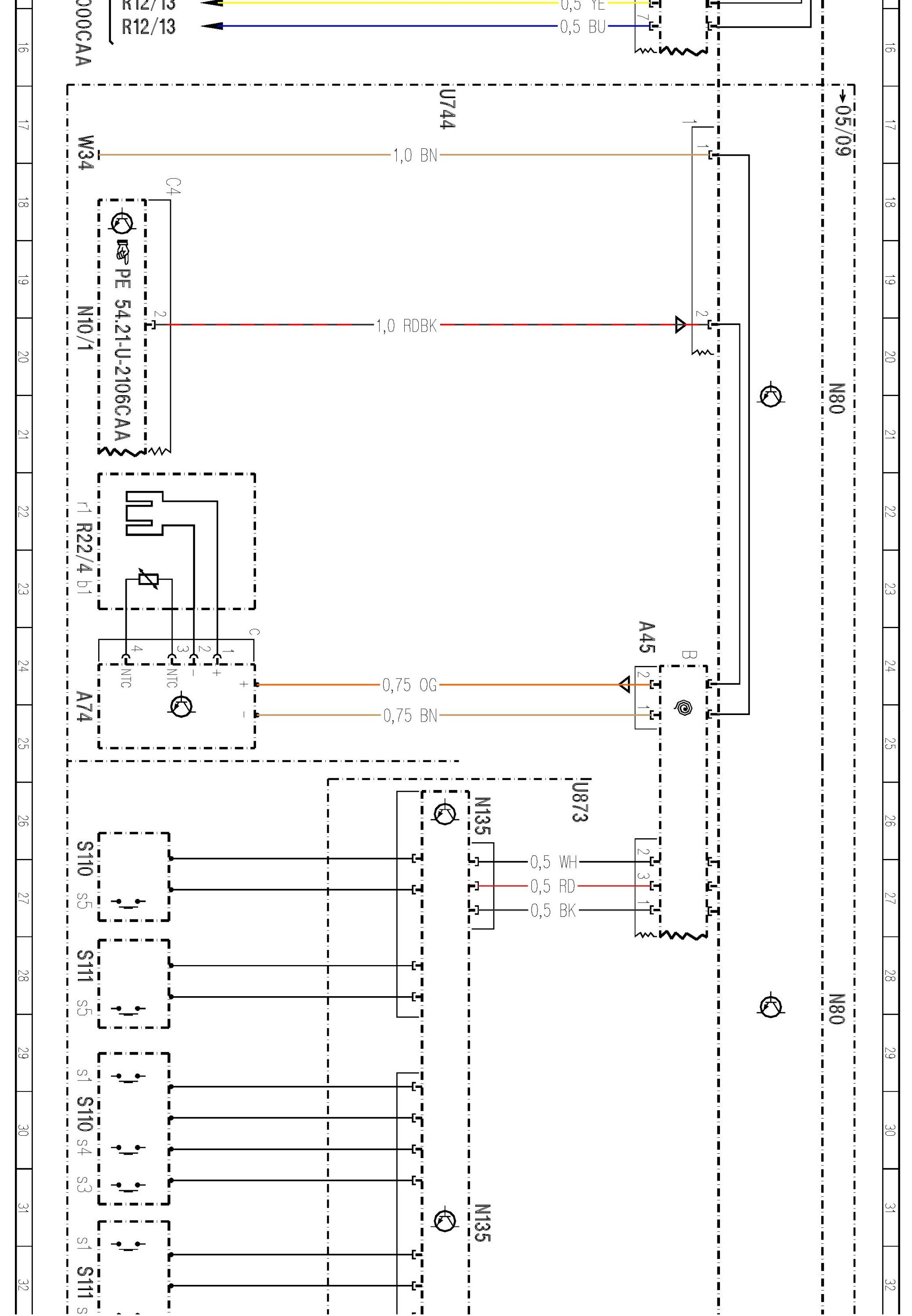

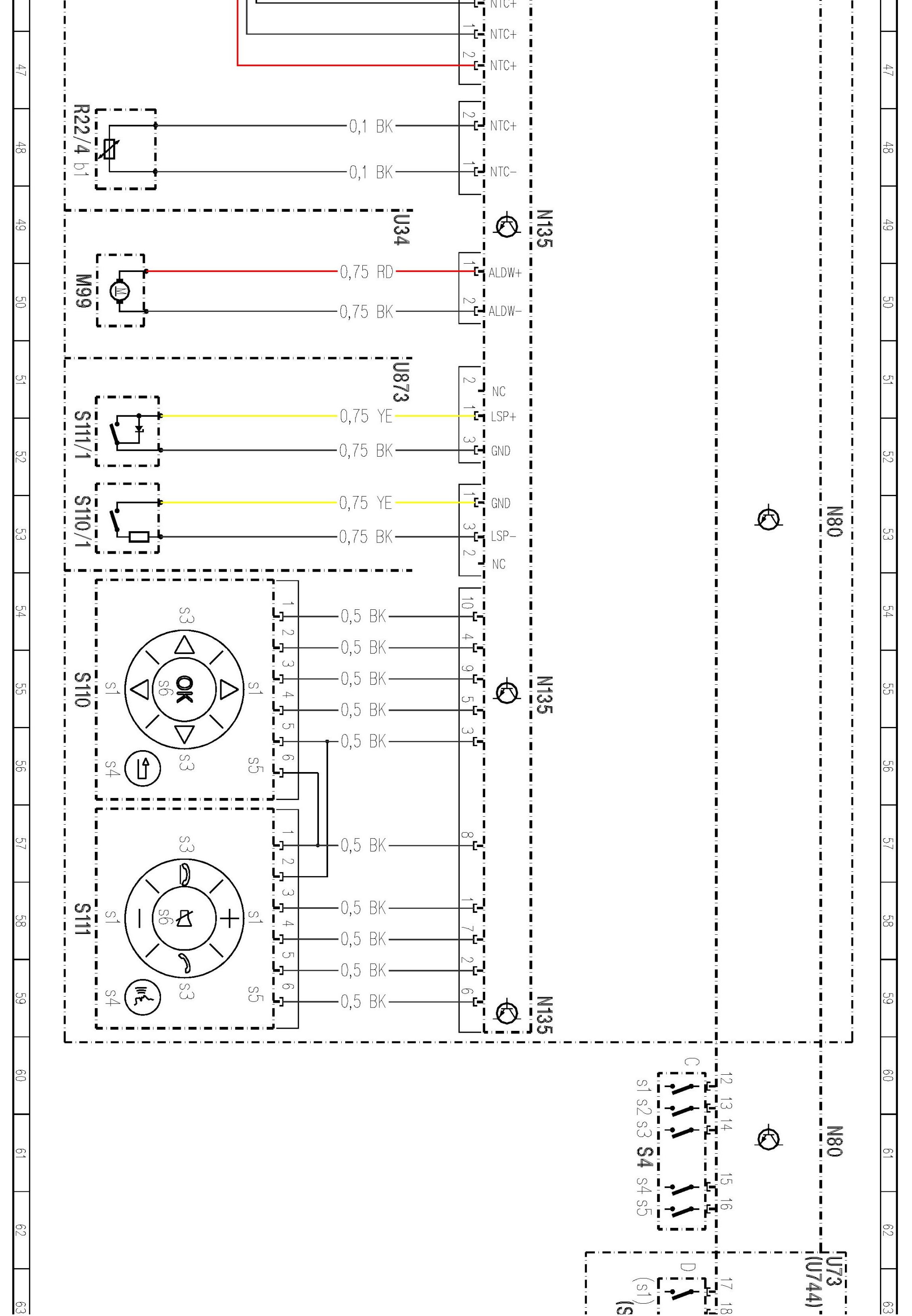

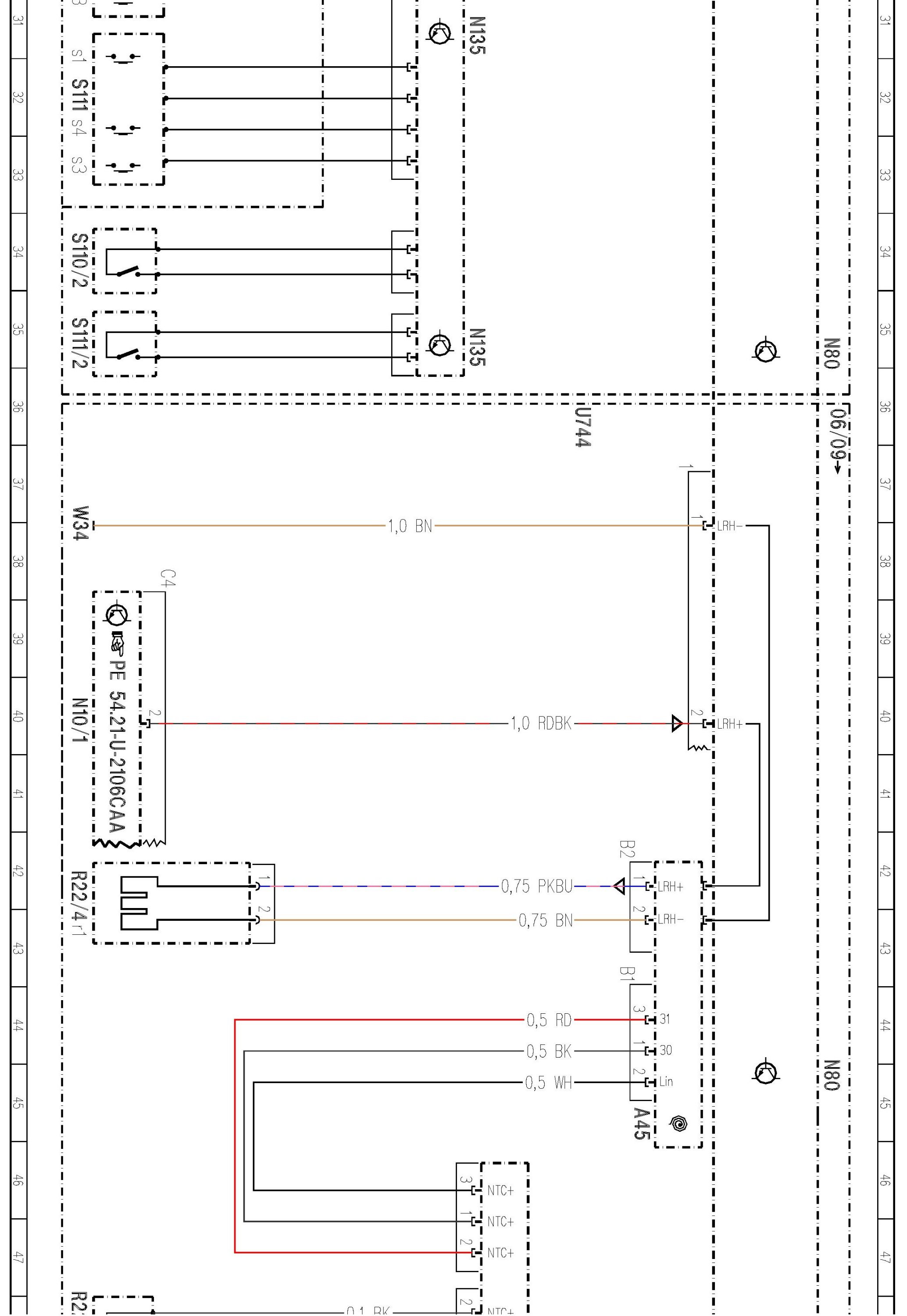

Steering Column Control Module: Diagrams

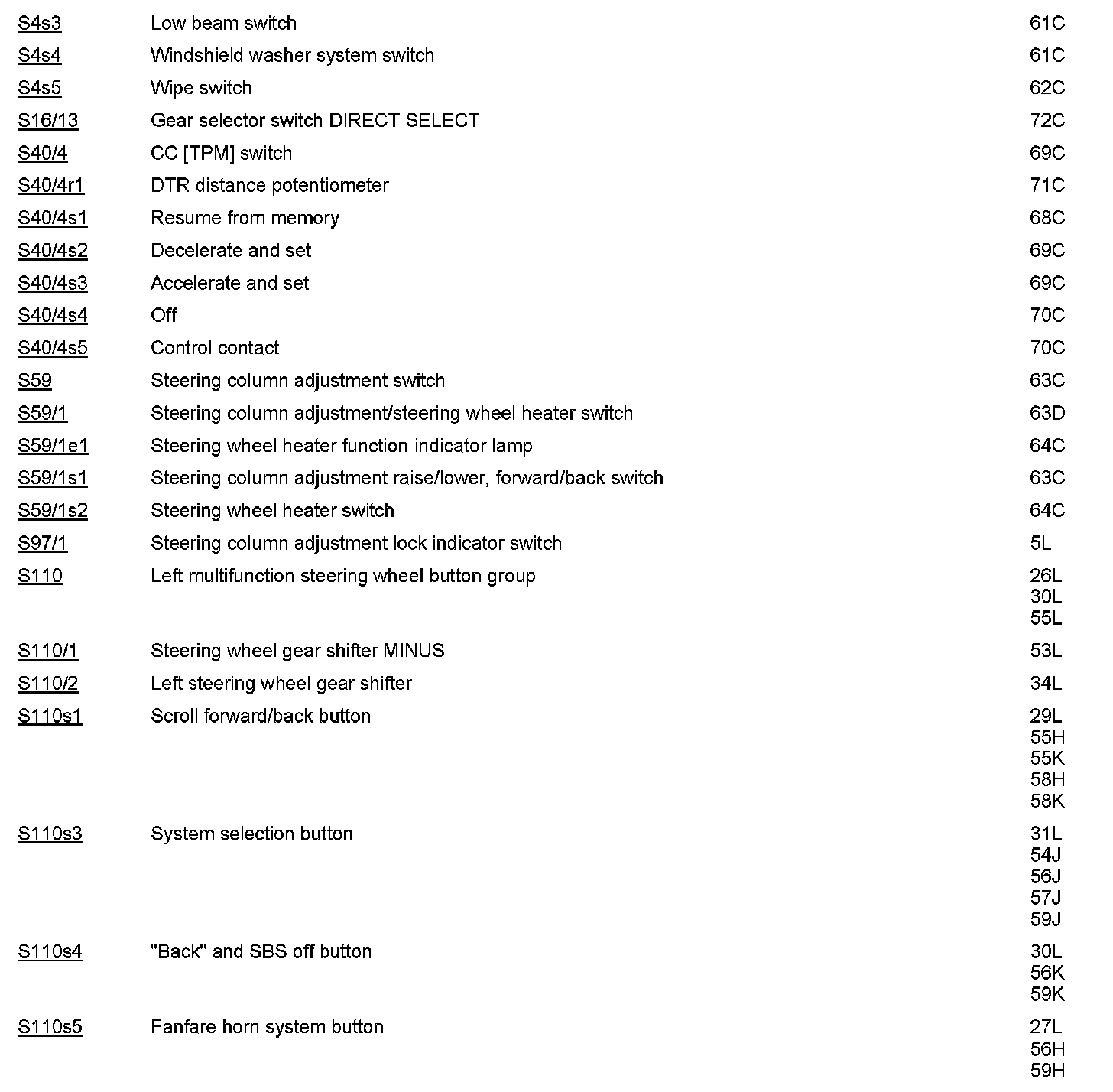

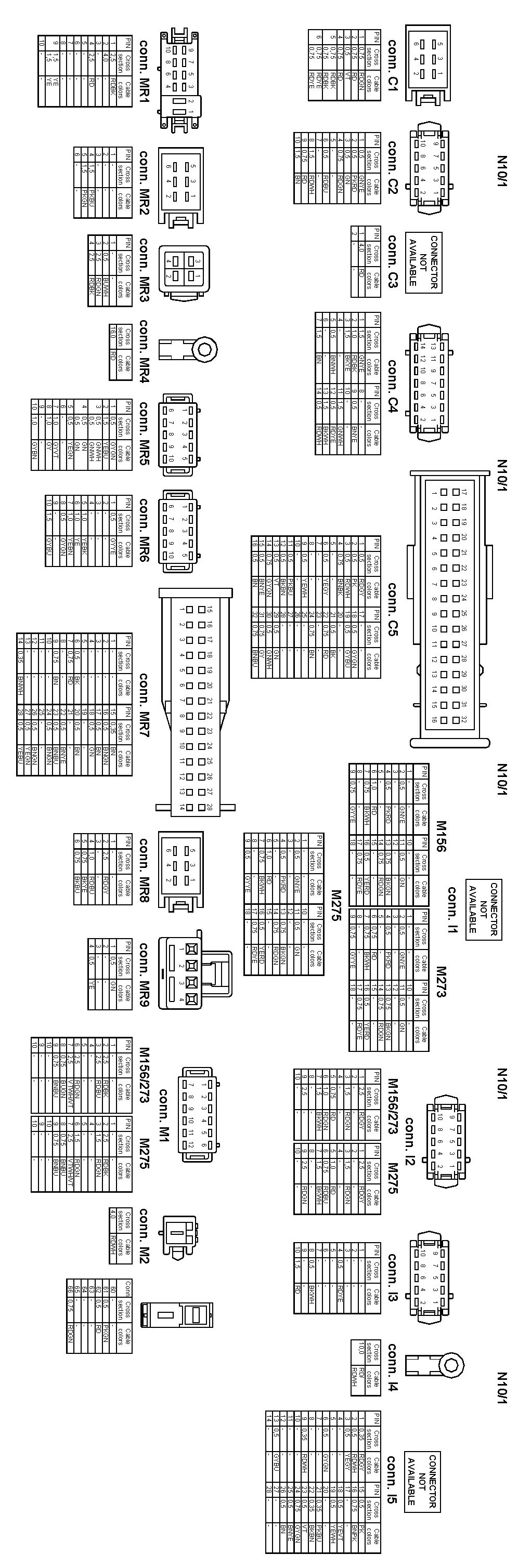

PE46.10-U-2101CAA Steering Column Module Control Module

MODEL 216

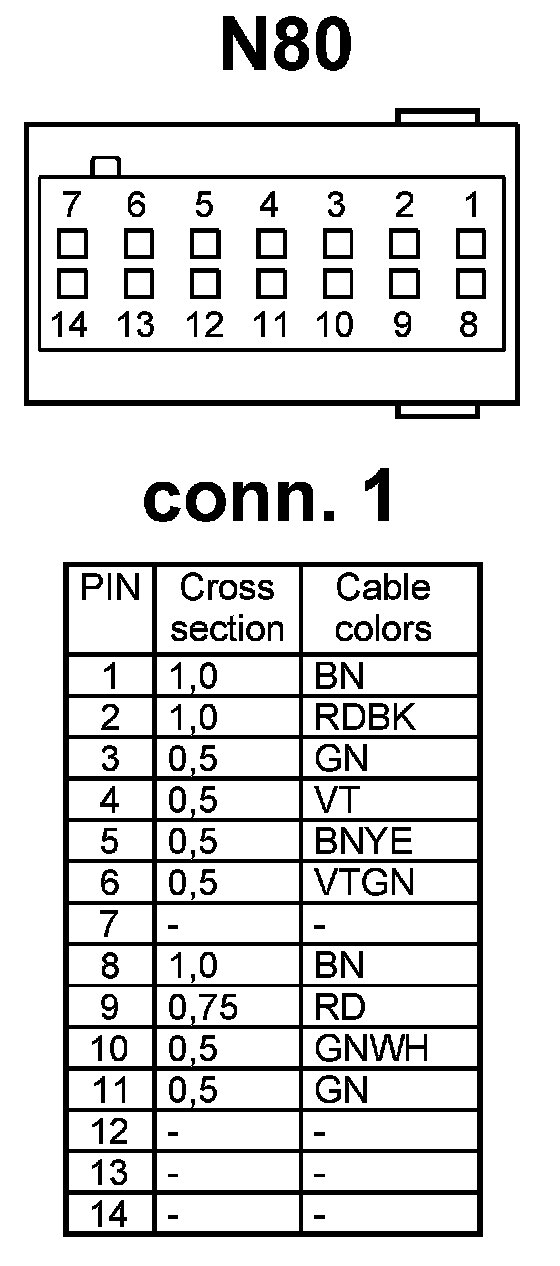

- Control unit N80



















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
