Headlamp Control Module: Service and Repair

AR82.10-P-4632SX Remove/Install Xenon Headlamp Control Unit
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination [model 221]
- with CODE (487) Active Body Control (ABC) [model 221]
- with CODE (614) Bi-xenon headlamp unit [model 221]
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination [model 221]

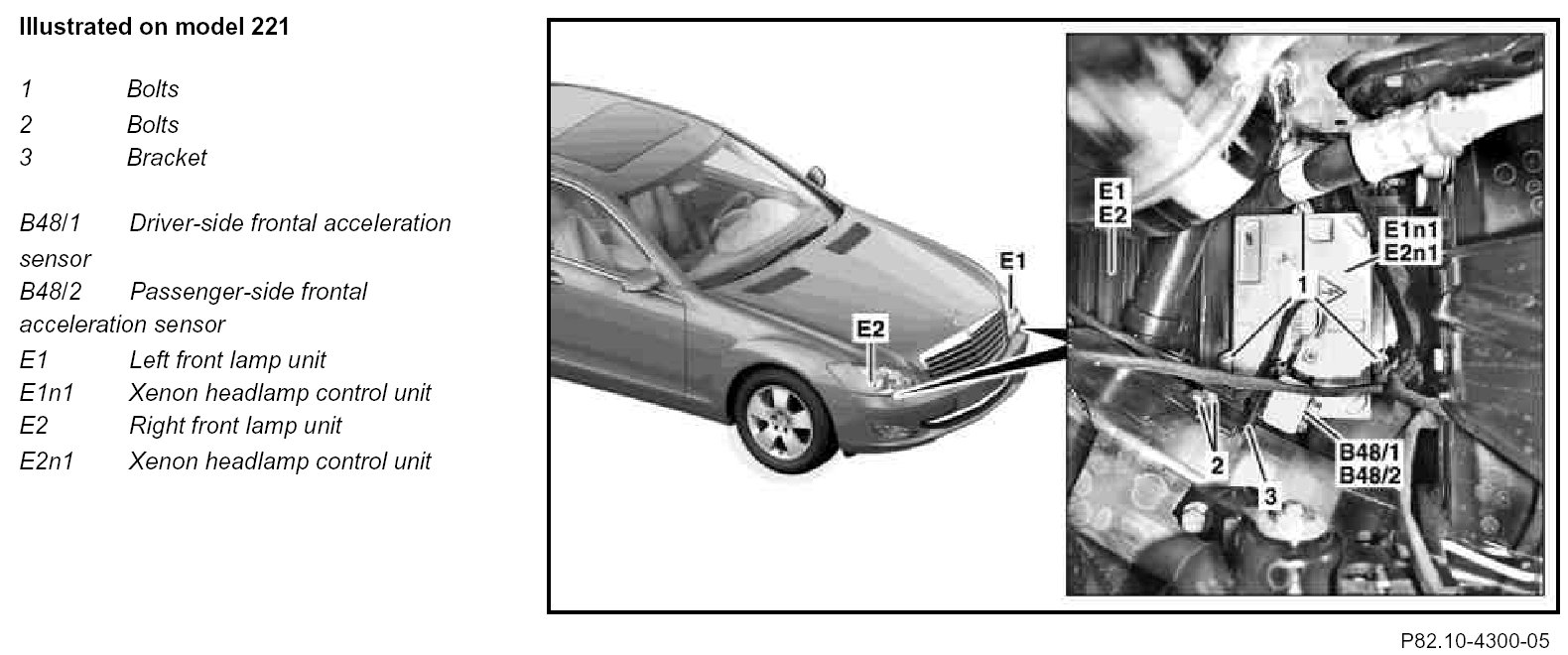

Component Identification:

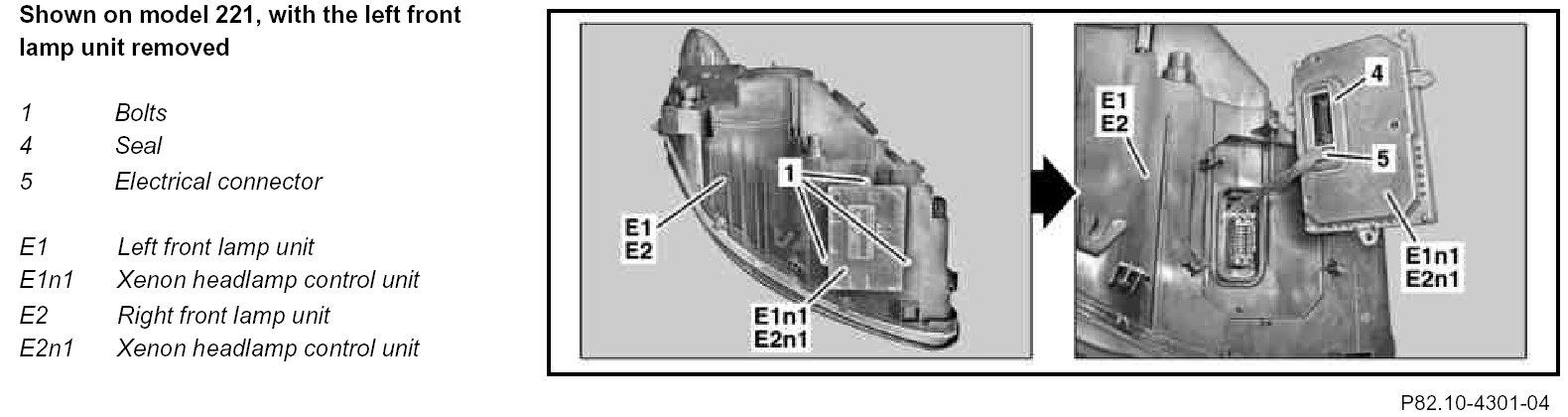

Component Identification:

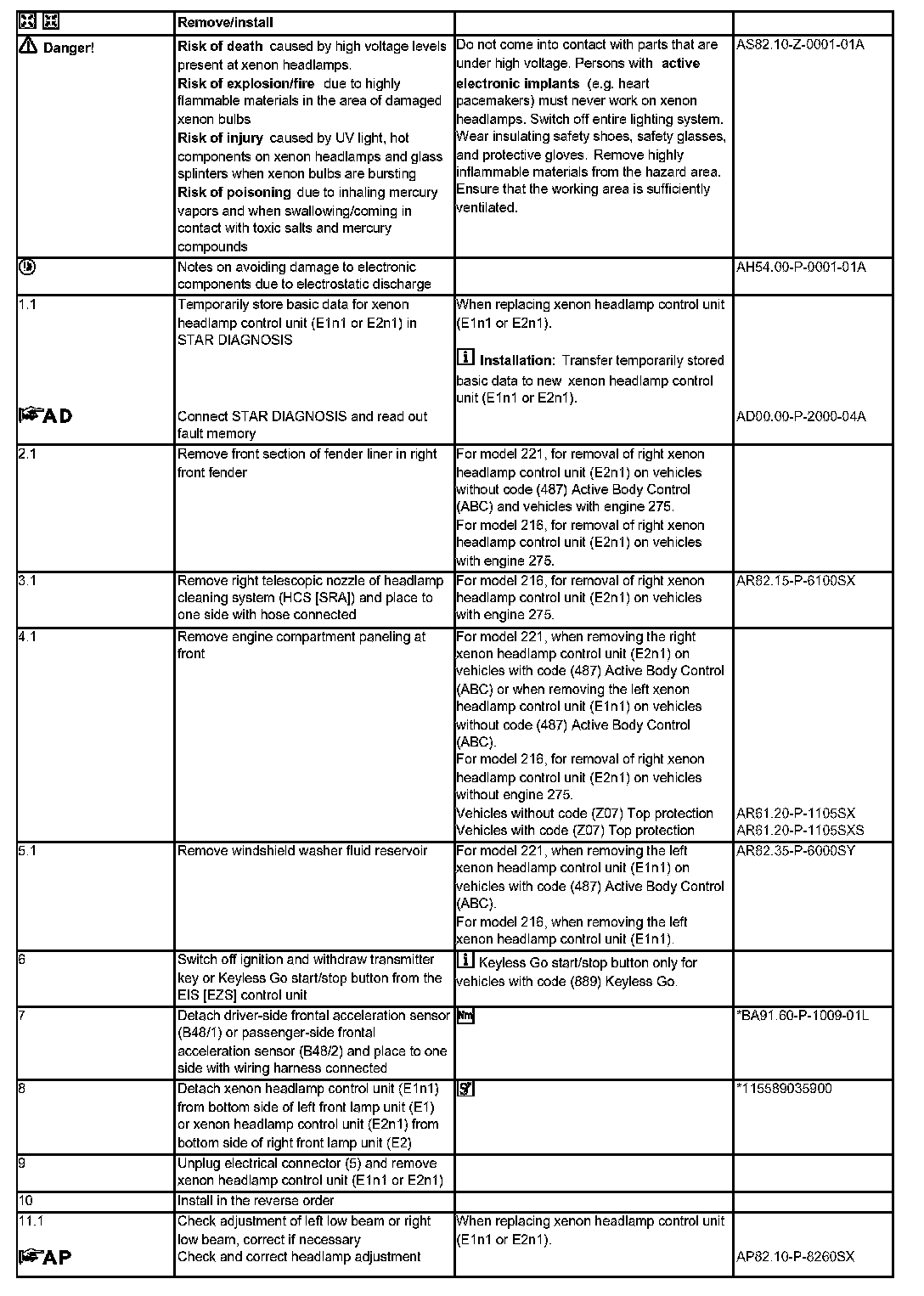

Steps 1.1 - 11.1:

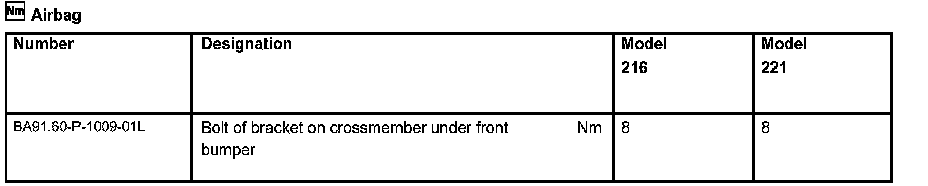

Airbag:

Special Tools:
