CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Body and Frame
>>
Power Seat Control Module
>>
Service and Repair
Power Seat Control Module: Service and Repair
AR91.29-P-1550SC Remove/install Front Seat Control Unit

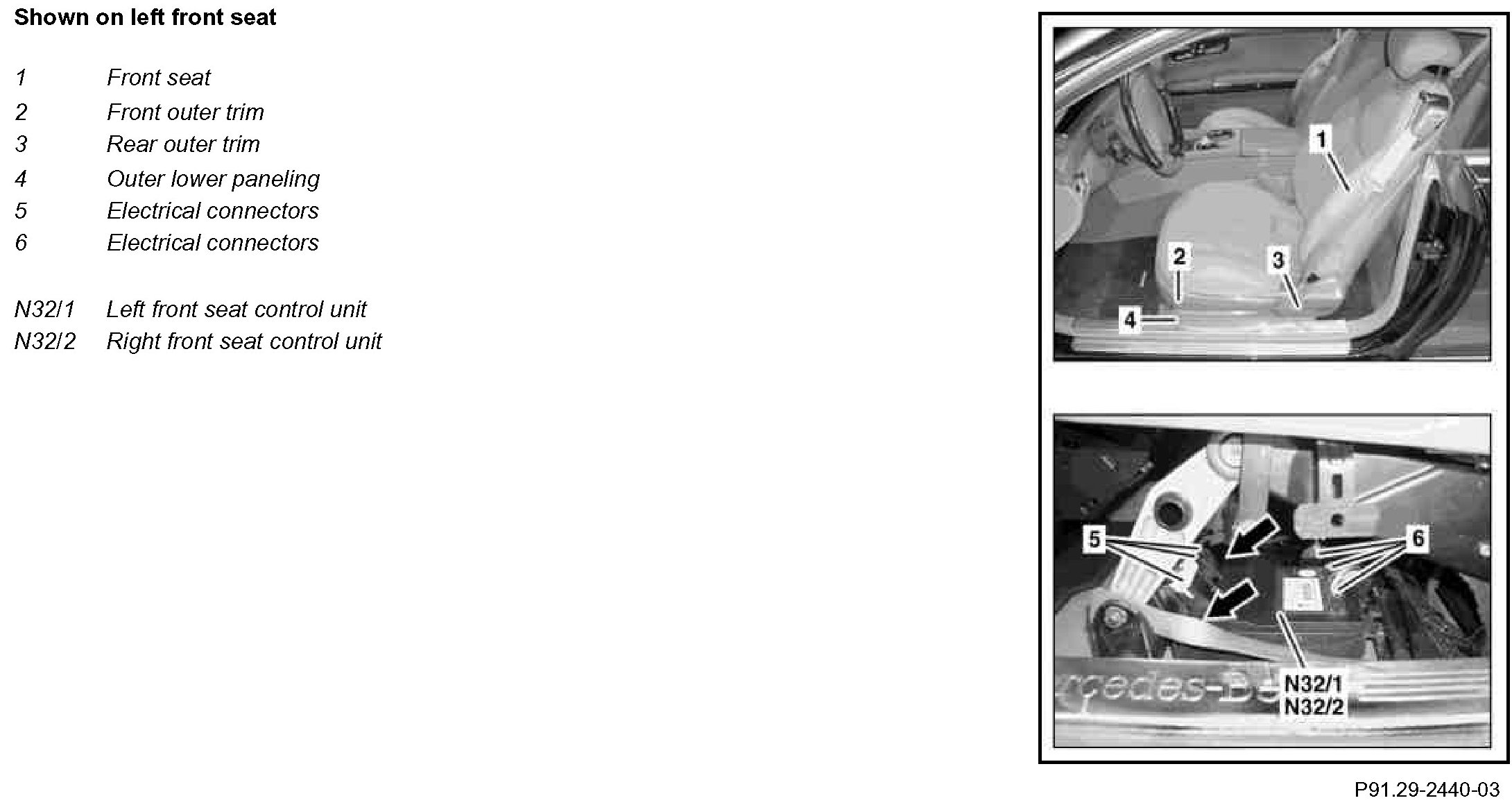

Component Identification:

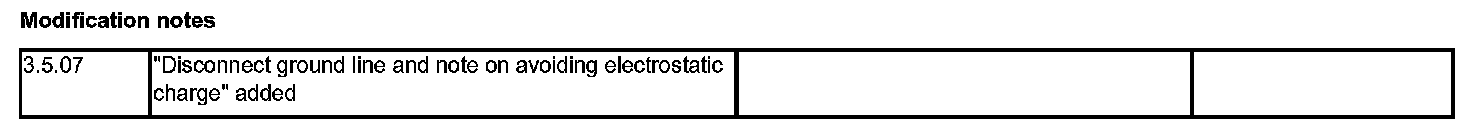

Modification Notes:

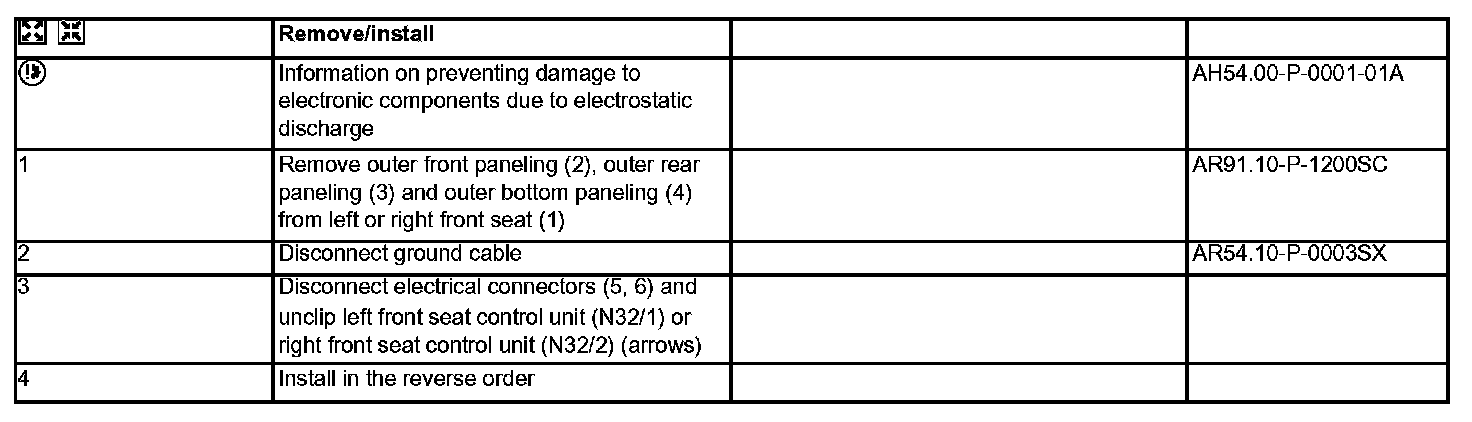

Steps 1-4:
