AR54.65-P-0040SC Remove/Install Radar Sensors Control Unit



AR54.65-P-0040SC Remove/Install Radar Sensors Control Unit
- with CODE (229) Park Assist
- with CODE (230) Advanced Parking Guidance
- with CODE (233) Distronic Plus
- with CODE (234) Blind Spot Assist

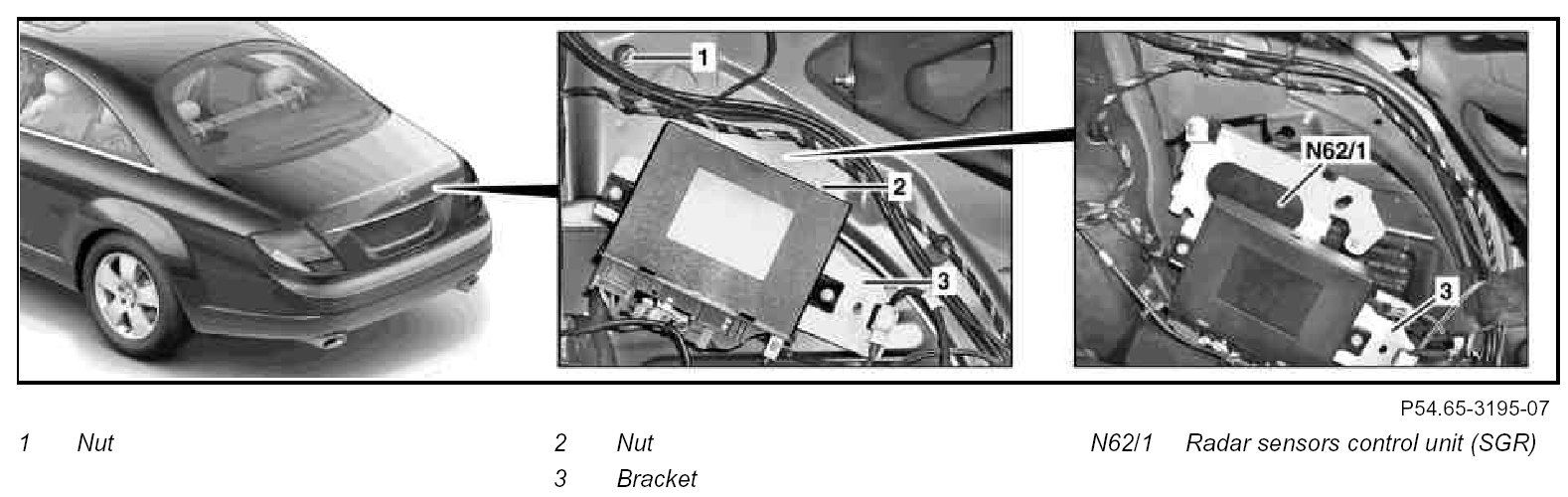

Component Identification:

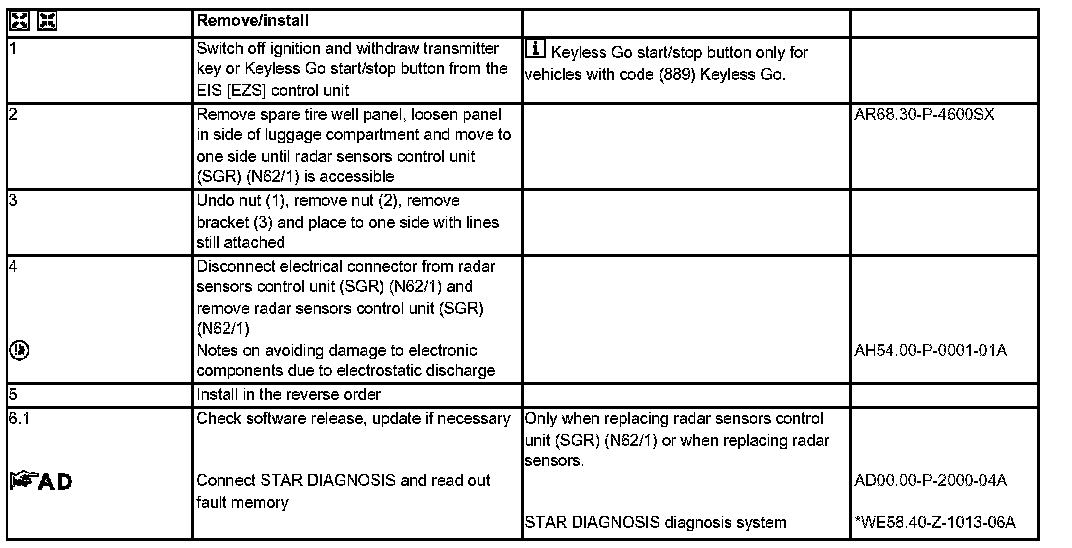

Steps 1 - 6.1:




Workshop Equipment/MB Testers:
