AR54.65-P-0006SC Remove/Install Parktronic System (PTS) Control Unit



AR54.65-P-0006SC Remove/Install Parktronic System (PTS) Control Unit

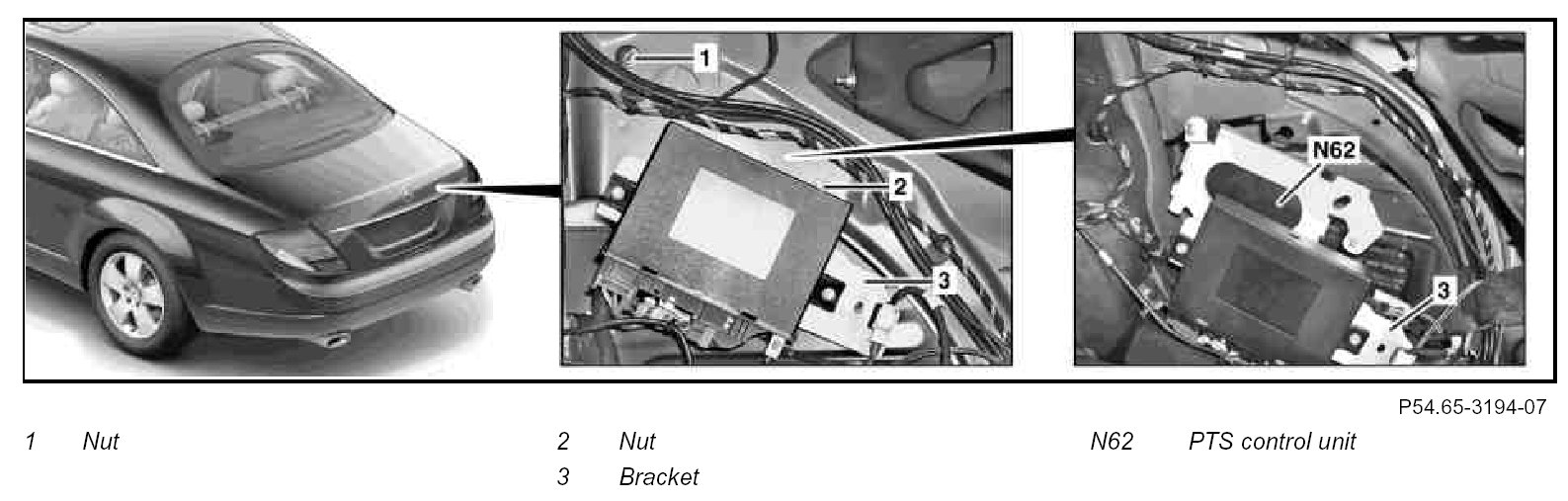

Component Identification:

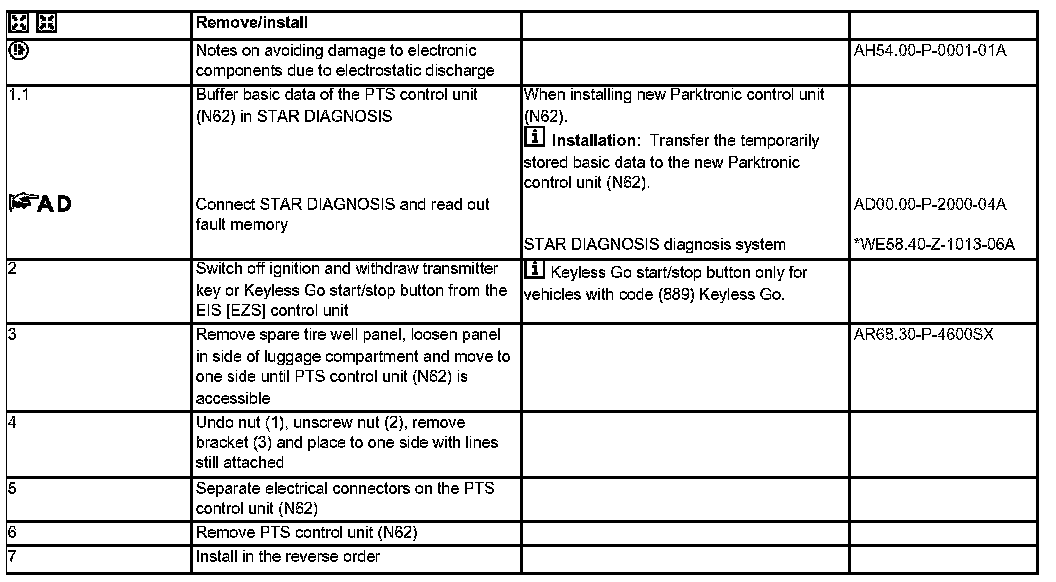

Steps 1.1 - 7:




Workshop Equipment/MB Testers:
