Electrical Diagrams

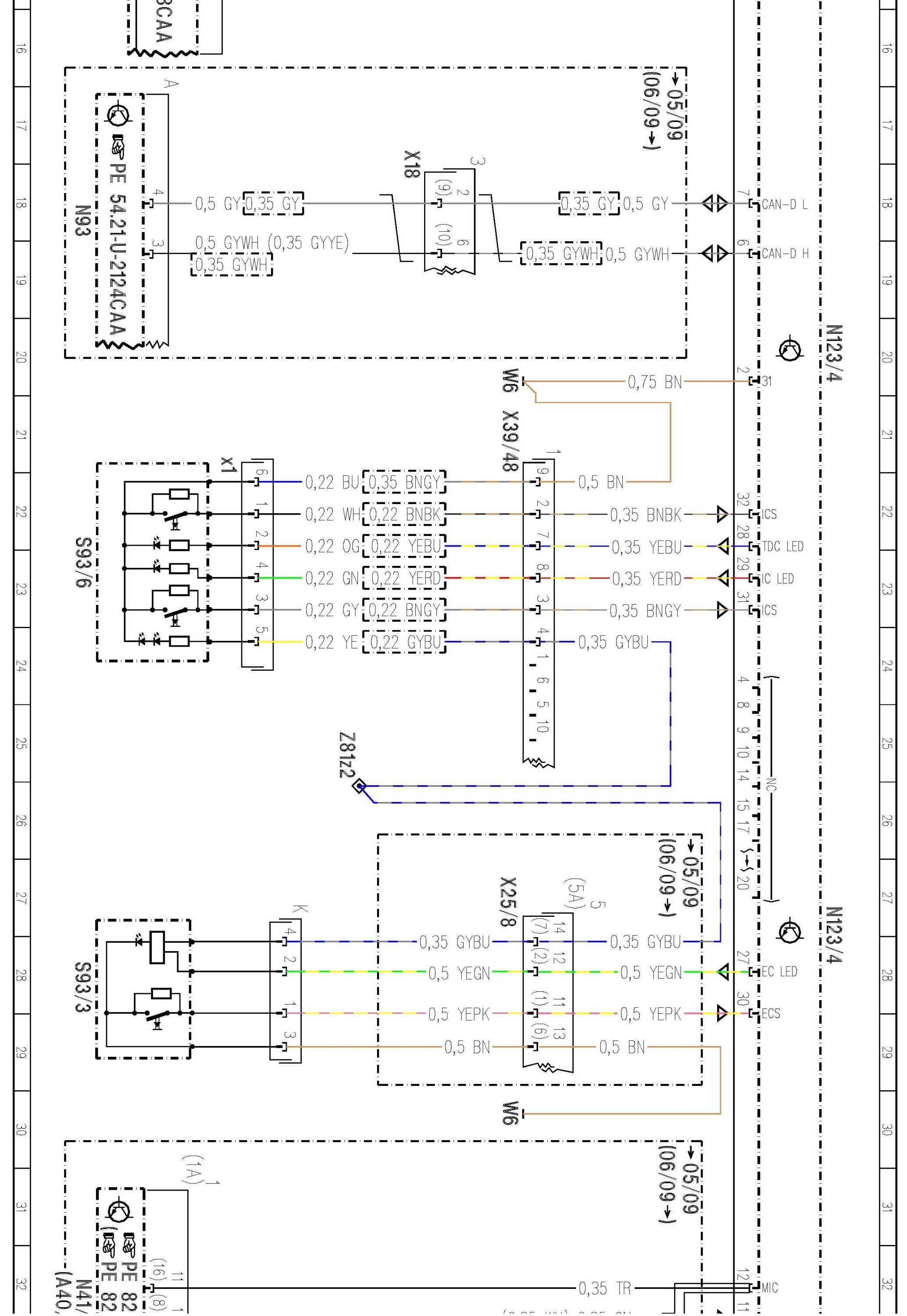

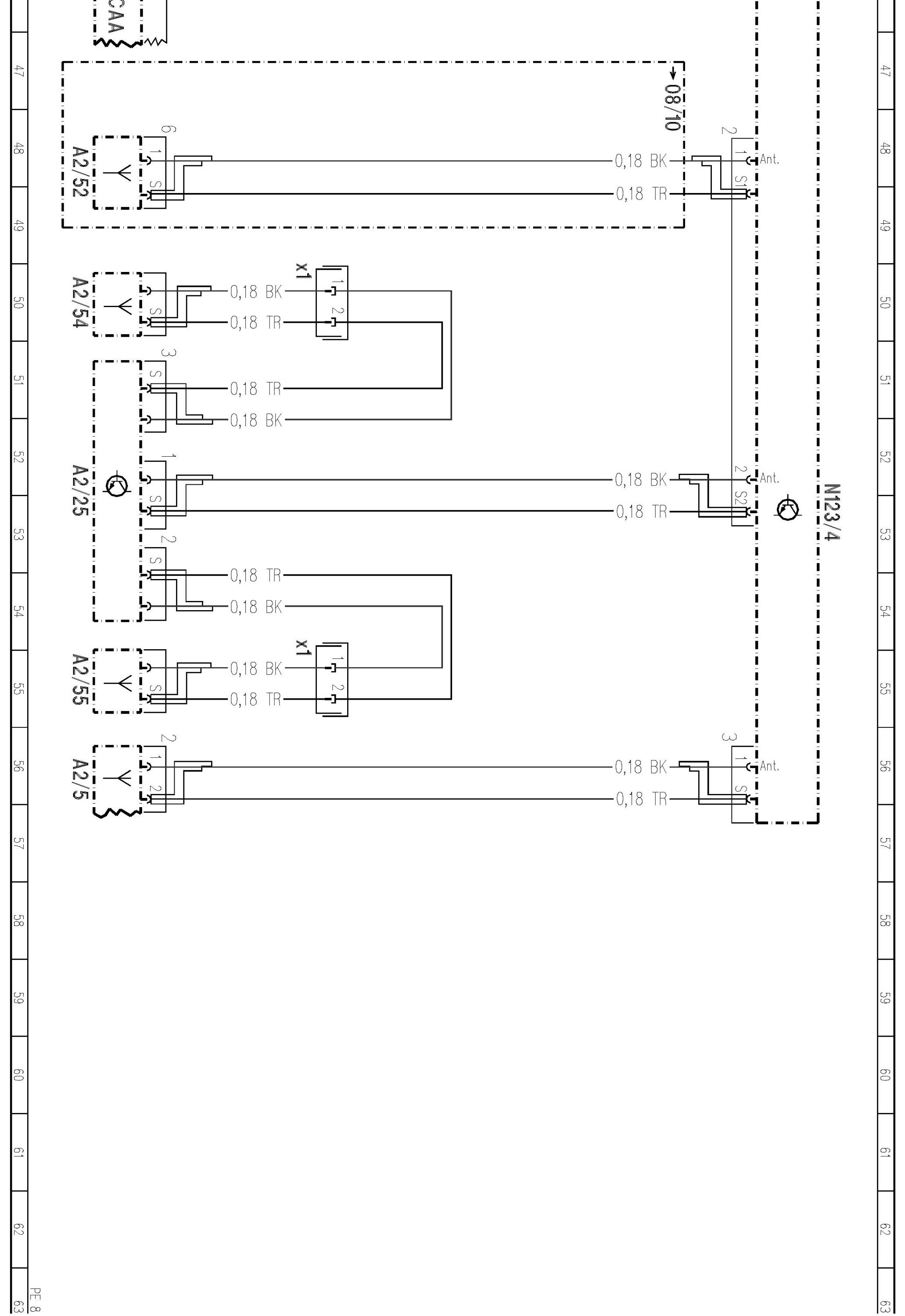

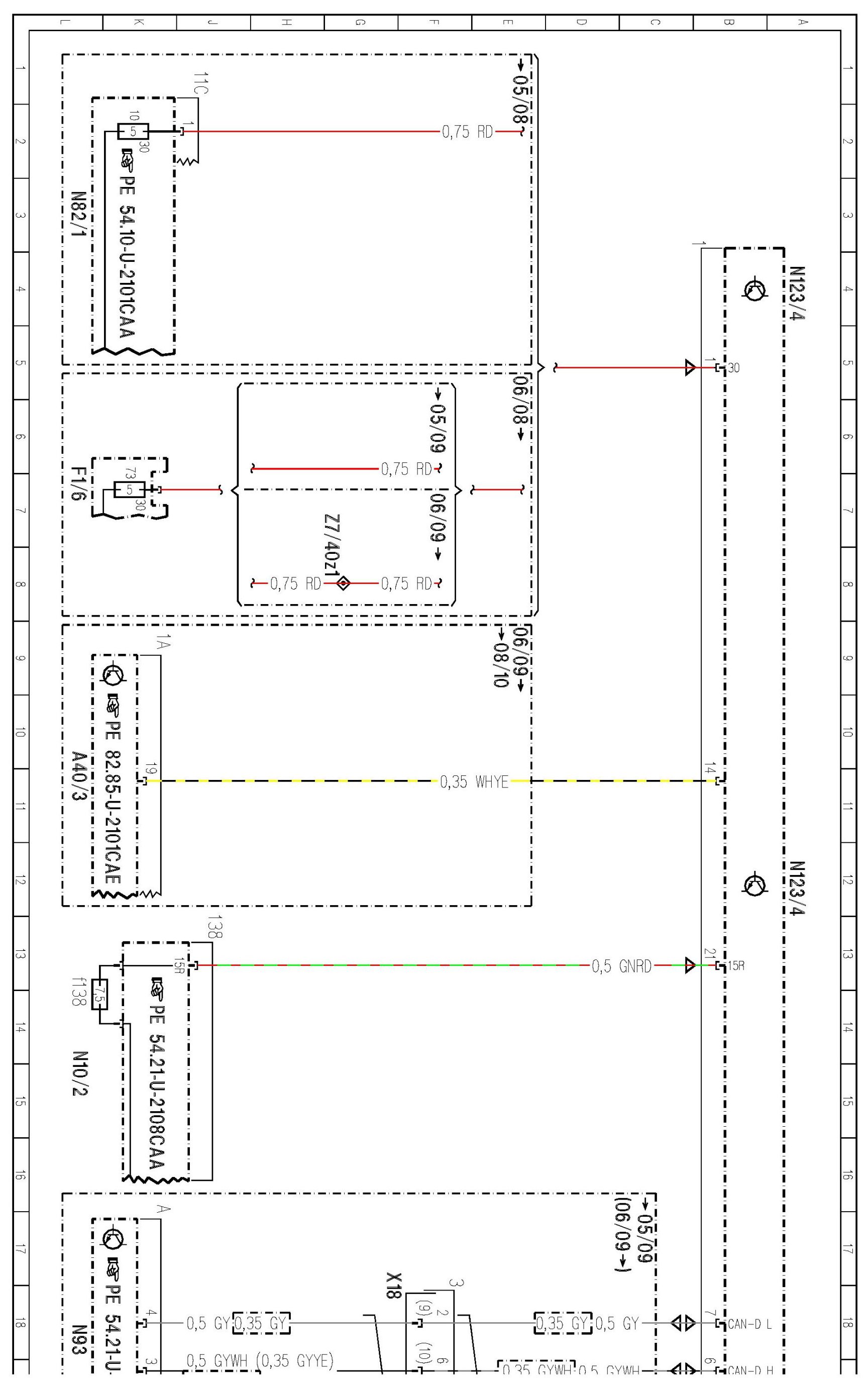

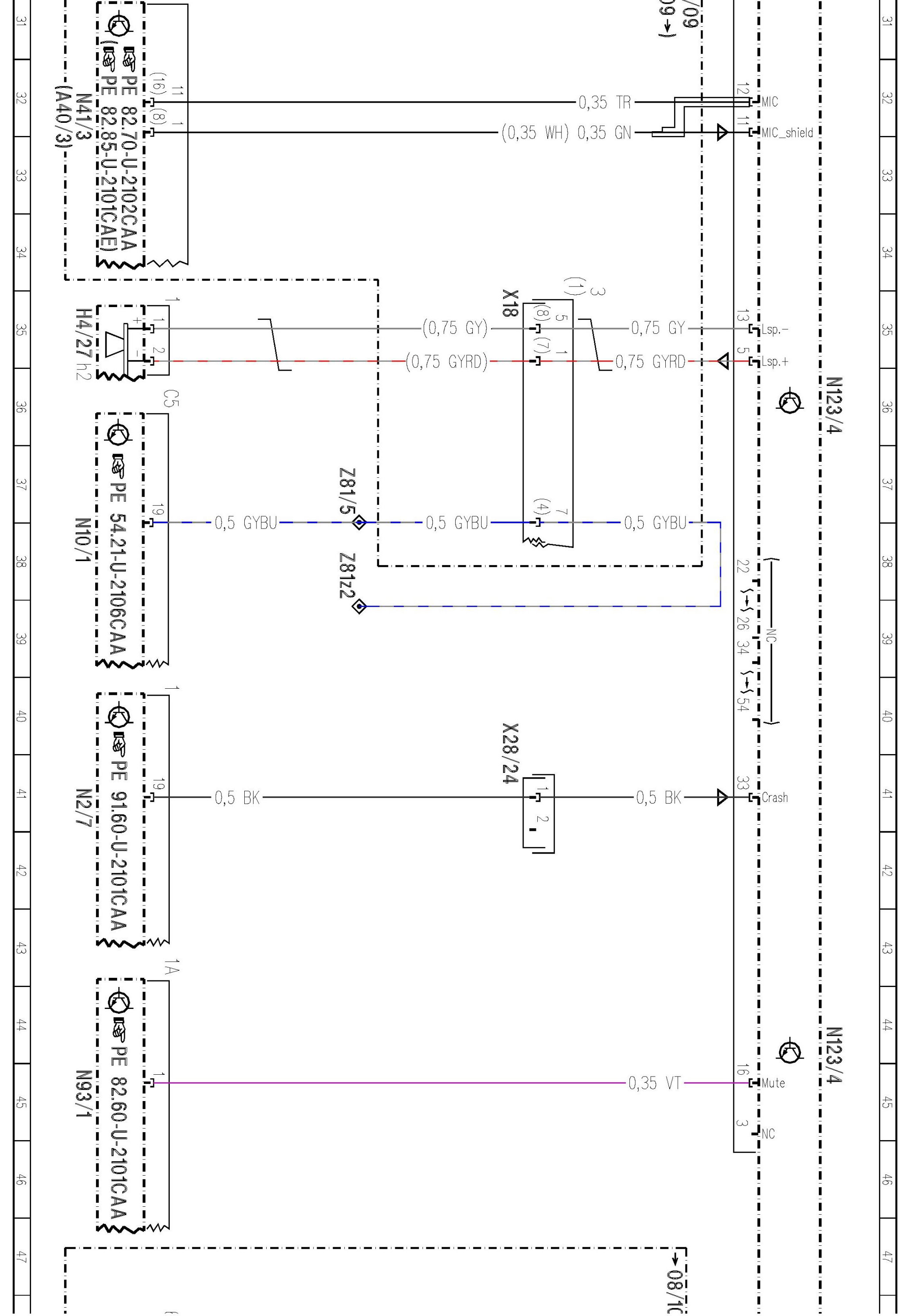

PE82.95-U-2101CAA Emergency Call System Control Module

MODEL 216
- with CODE (359) TELE AID emergency call system
- Control unit N123/4











































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
