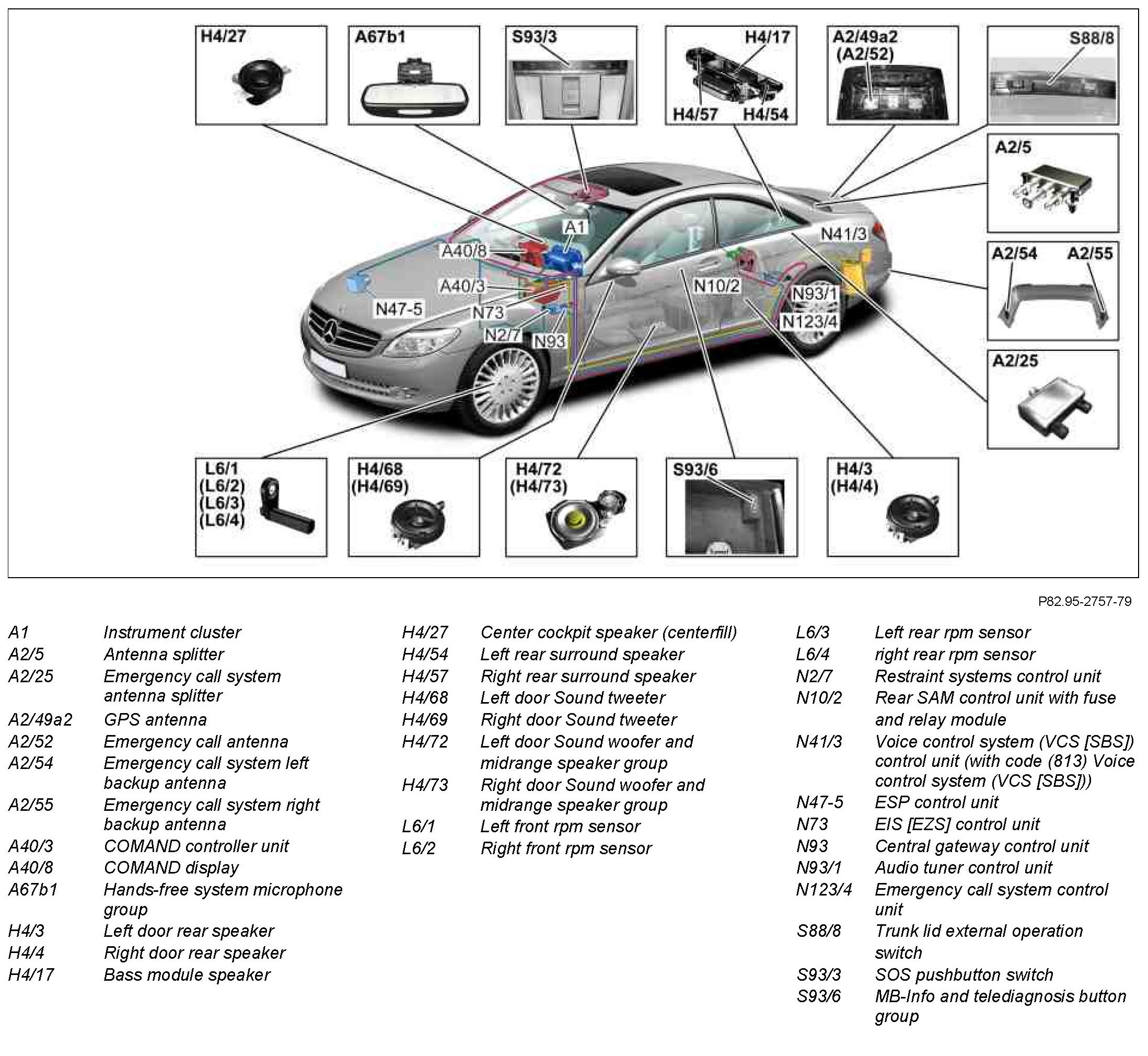

GF82.95-P-0004-01LAU Emergency Call System, Location Of Components



GF82.95-P-0004-01LAU Emergency Call System, Location Of Components
- with CODE (359) TELE AID emergency call system

Component Identification:
