CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Tune-up and Engine Performance Checks
>>
Compression Check
>>
Testing and Inspection
>>
AR01.00-P-1200SX Test Compression Pressure
AR01.00-P-1200SX Test Compression Pressure
AR01.00-P-1200SX Test compression pressure

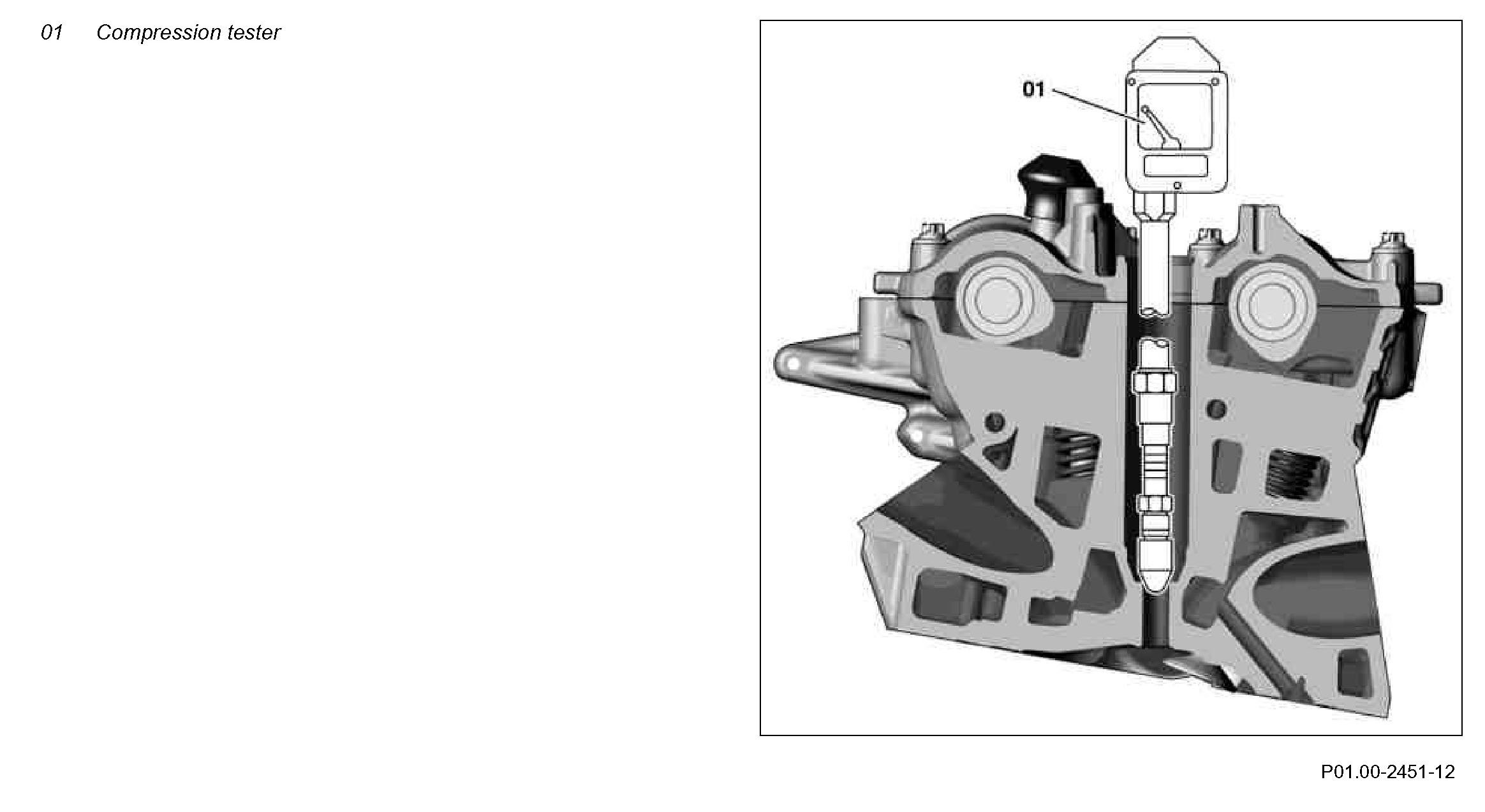

Component Identification:

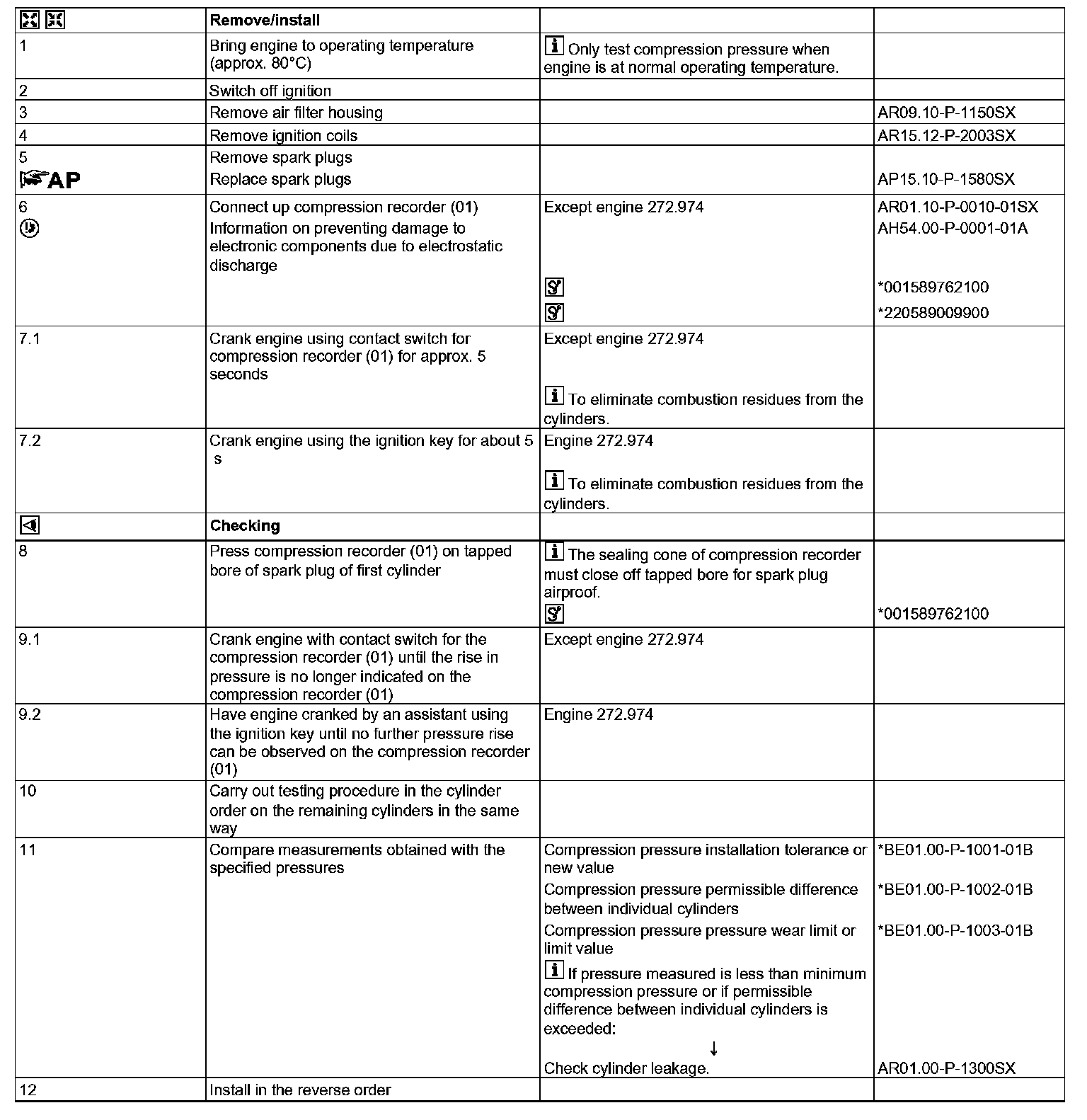

Steps 1-12:

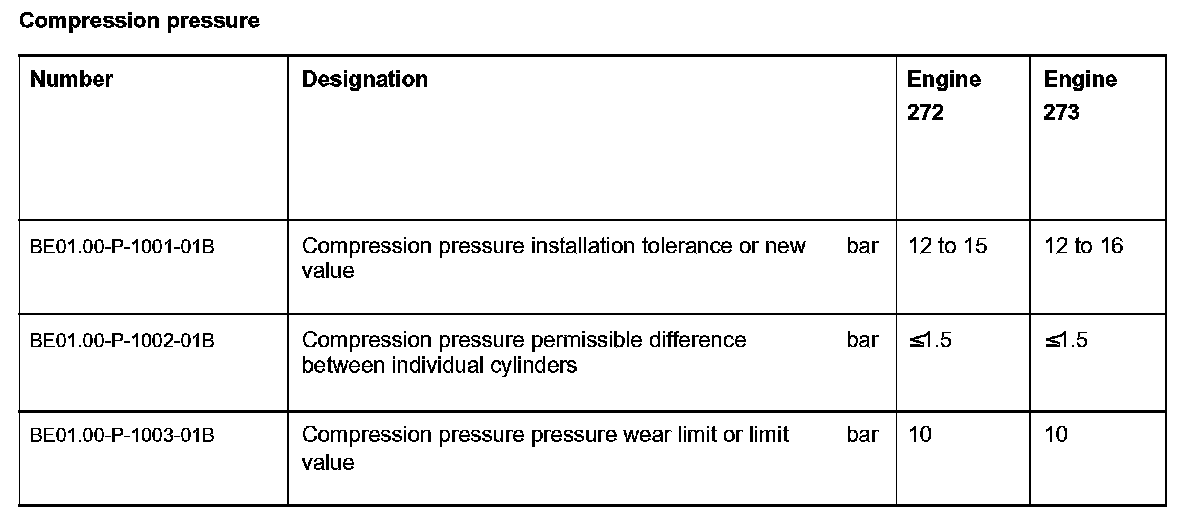

Compression pressure:

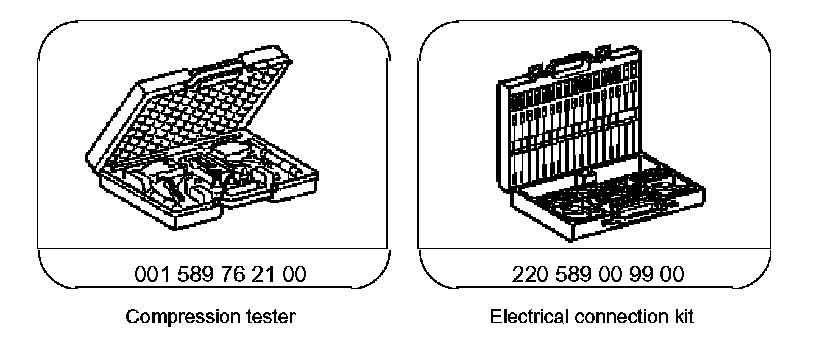

Special Tools:
