CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Tune-up and Engine Performance Checks
>>
Compression Check
>>
Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>

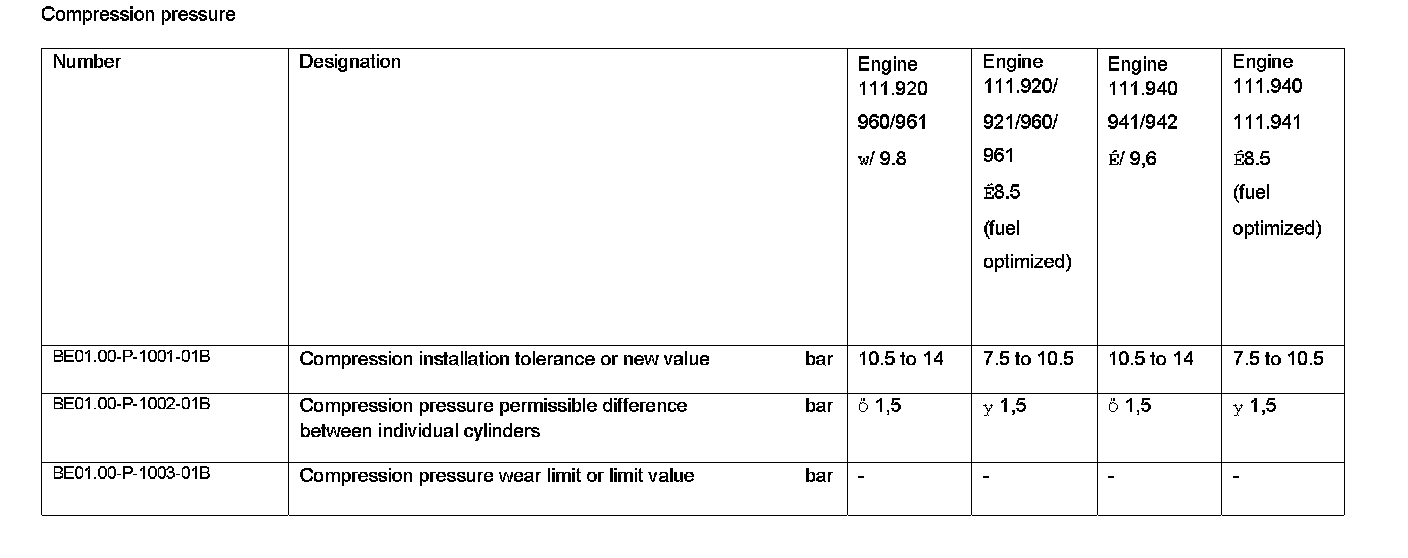

BE01.00-P-1000-01B Compression Pressure

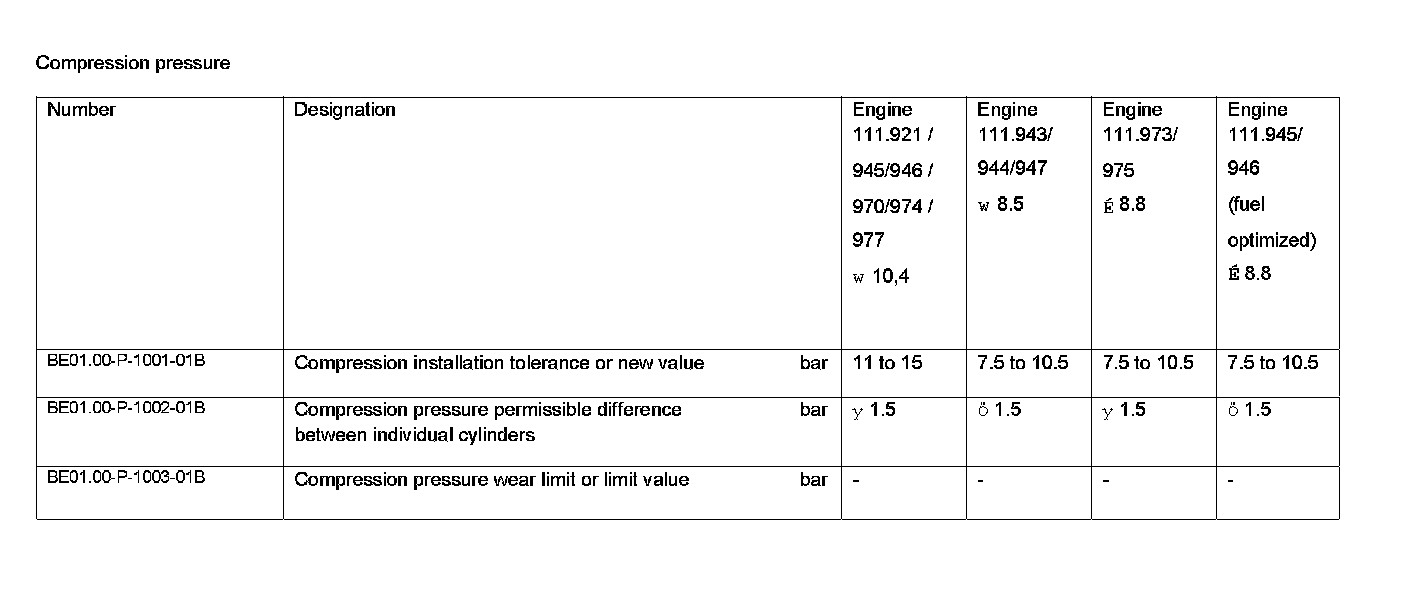

BE01.00-P-1000-01B Compression Pressure

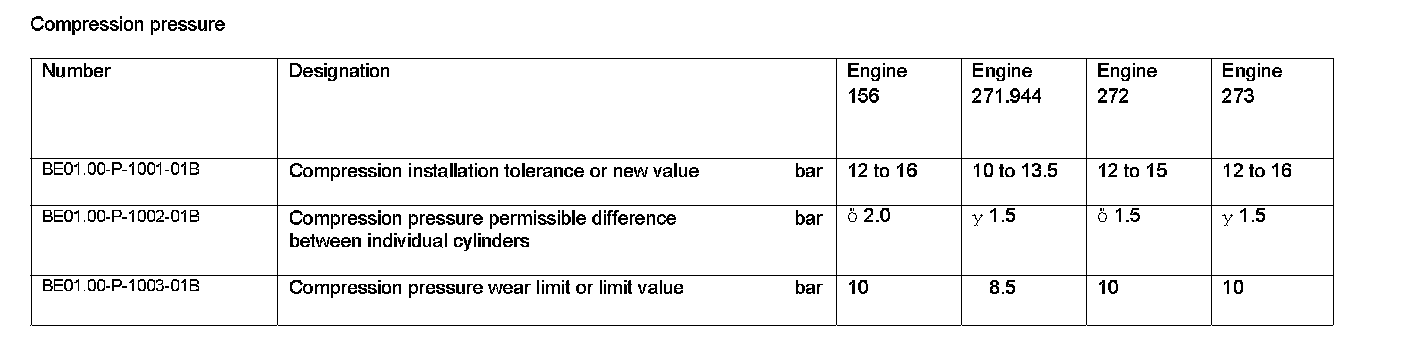

BE01.00-P-1000-01B Compression Pressure
Modification:
Compression Pressure:
Compression Pressure:
Compression Pressure:
