Fuel Level Sensor: Service and Repair
AR47.10-P-7000SX Remove/Install
Fuel Level Sensor

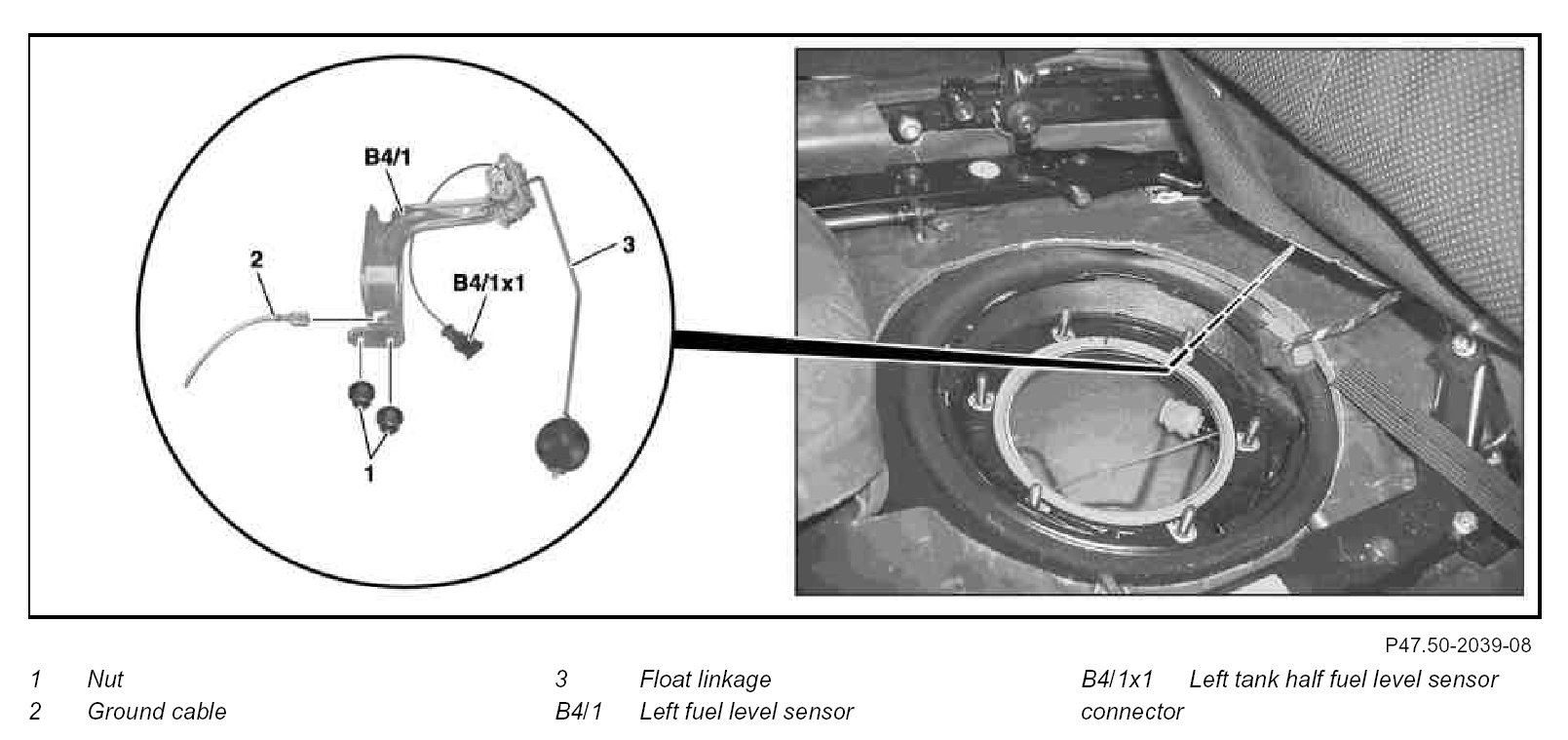

Component Identification:

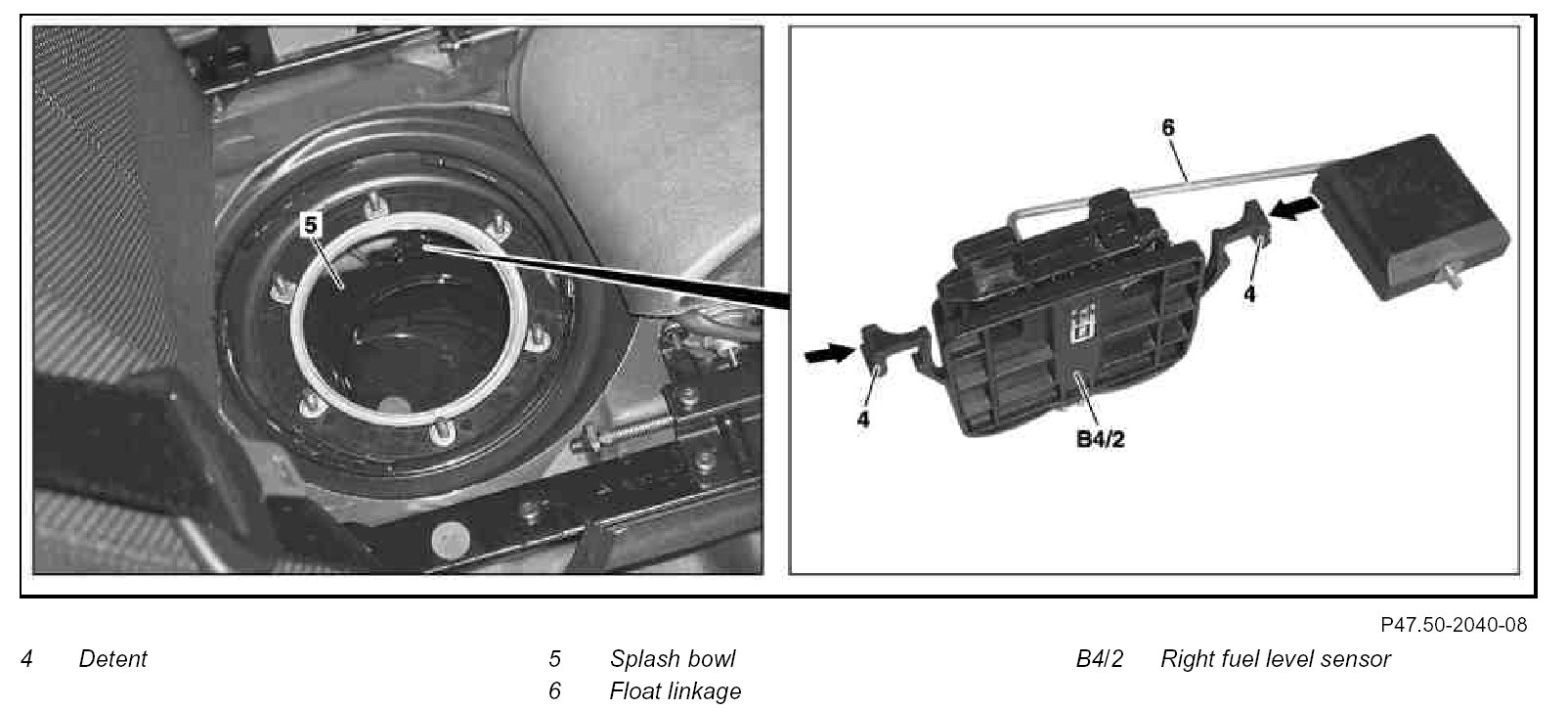

Component Identification:

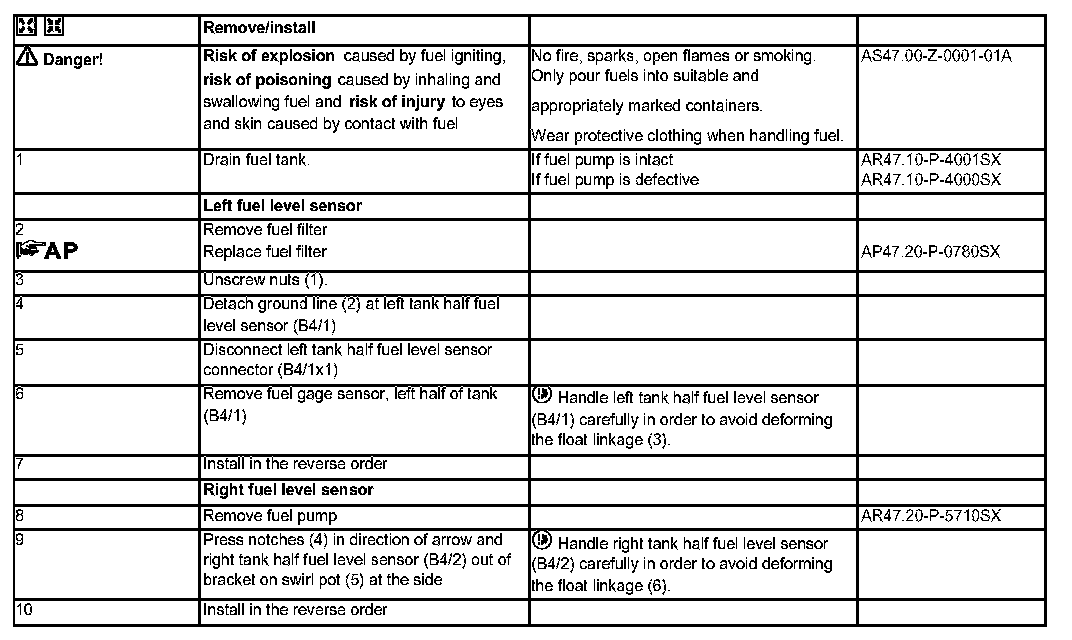

Steps 1 - 10:
