Ignition Coil: Service and Repair

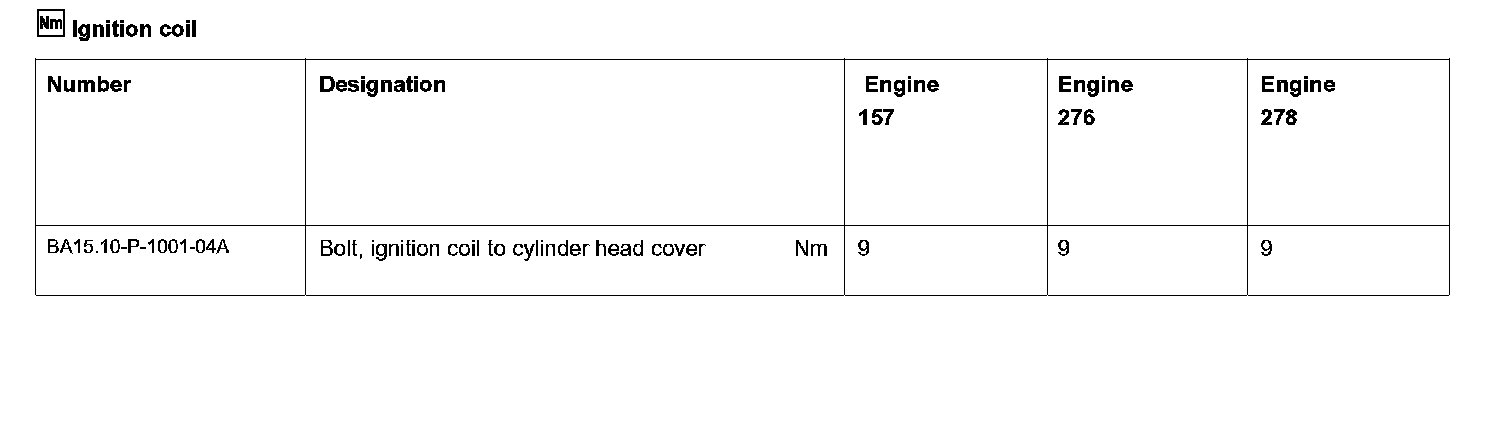

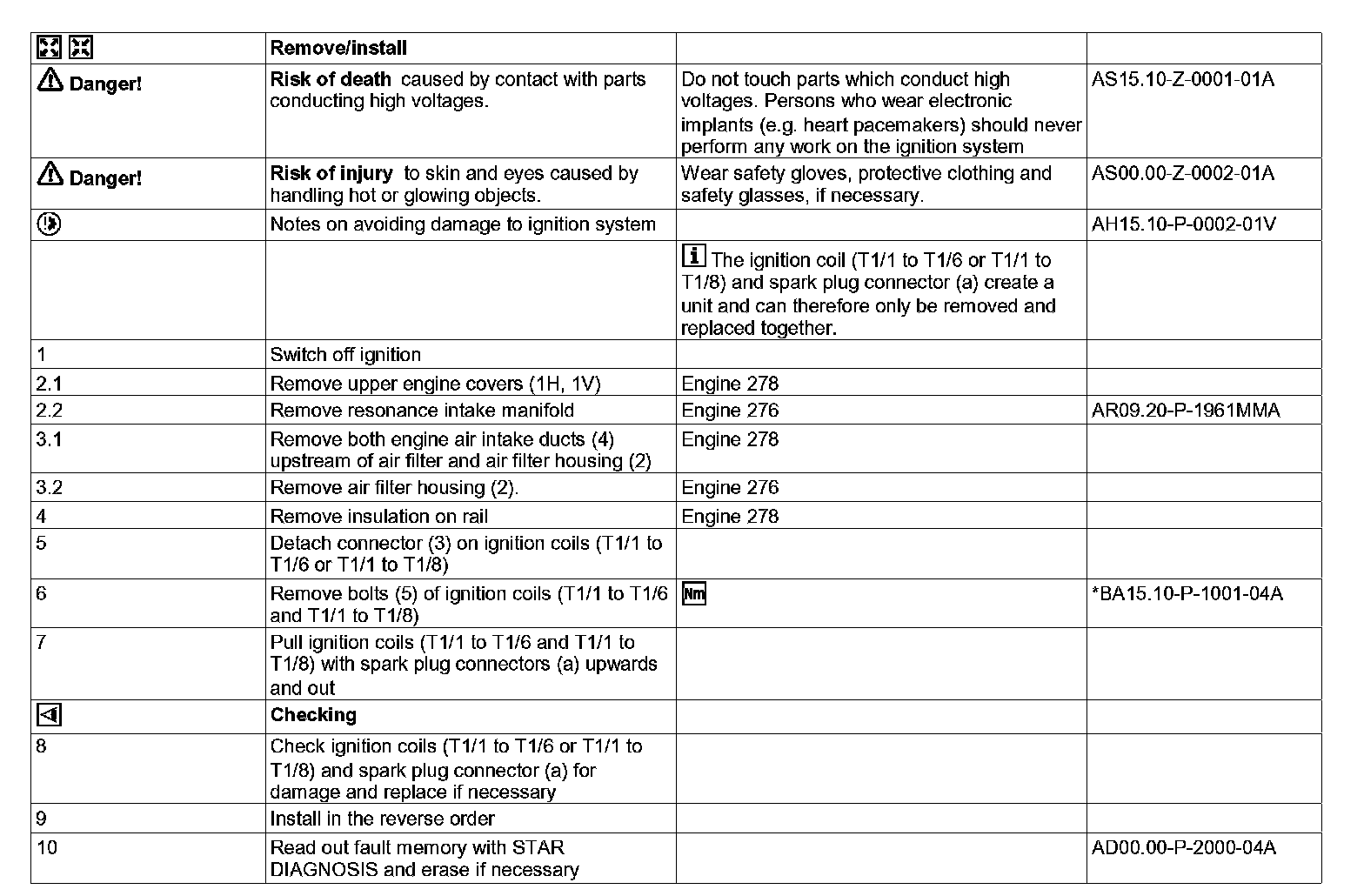

AR15.12-P-2003MM Remove/Install Ignition Coils
-ENGINES 157, 278 in MODEL 216
-ENGINES 157, 276, 278 in MODEL 221

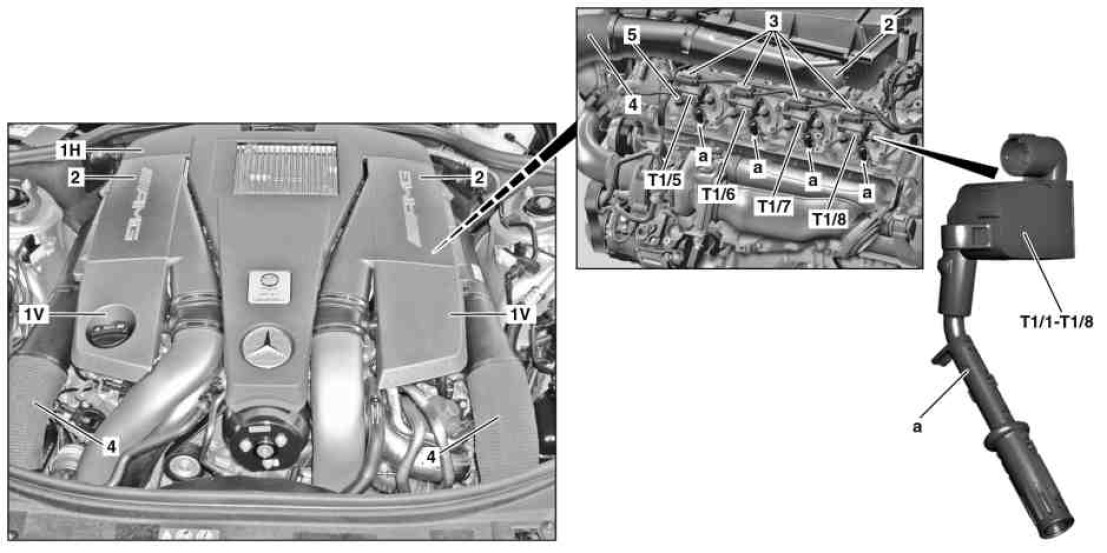

Shown on engine 157

1H Rear section of engine cover
1V Front section of engine cover
2 Air cleaner housing
3 Connector
4 Engine air intake duct
5 Screw
a Spark plug connector

T1/1 Cylinder 1 ignition coil
T1/2 Cylinder 2 ignition coil
T1/3 Cylinder 3 ignition coil
T1/4 Cylinder 4 ignition coil
T1/5 Cylinder 5 ignition coil
T1/6 Cylinder 6 ignition coil
T1/7 Cylinder 7 ignition coil
T1/8 Cylinder 8 ignition coil
