Boost Solenoid: Service and Repair

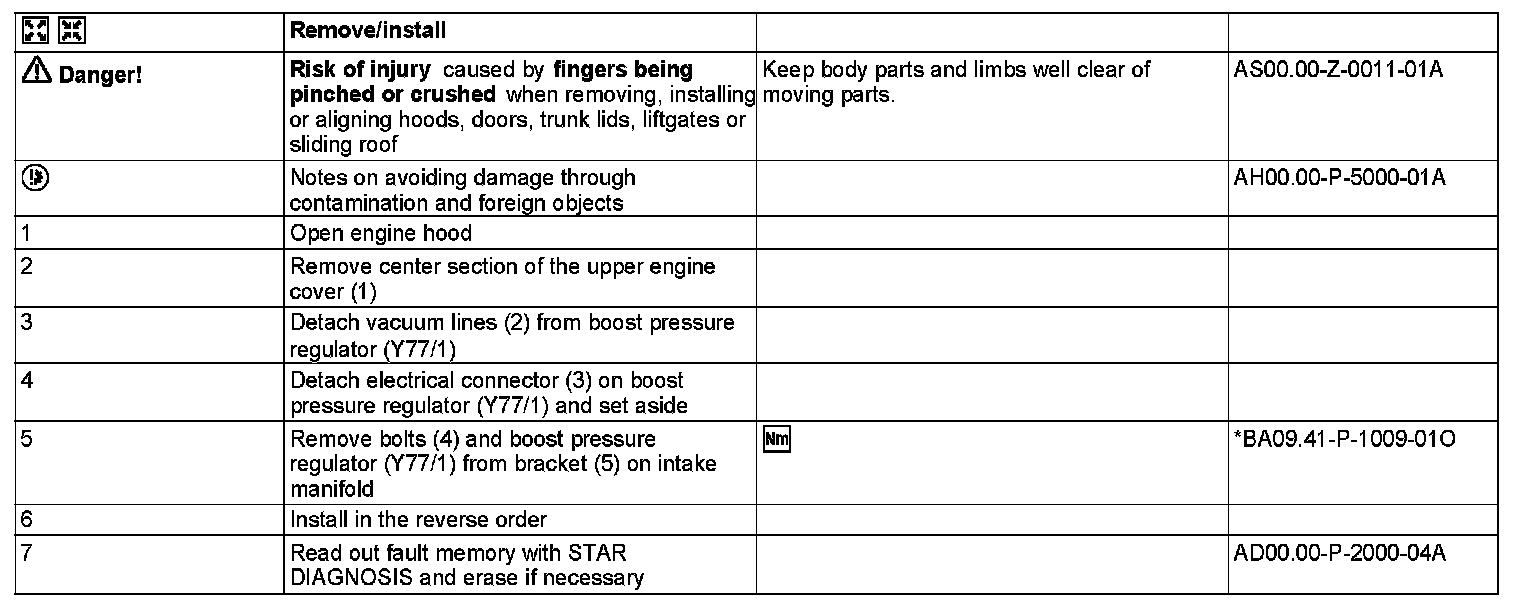

AR07.17-P-7002MMB Remove/install Pressure Transducer For Boost Pressure Control
- ENGINES 157, 278 in MODEL 216, 221

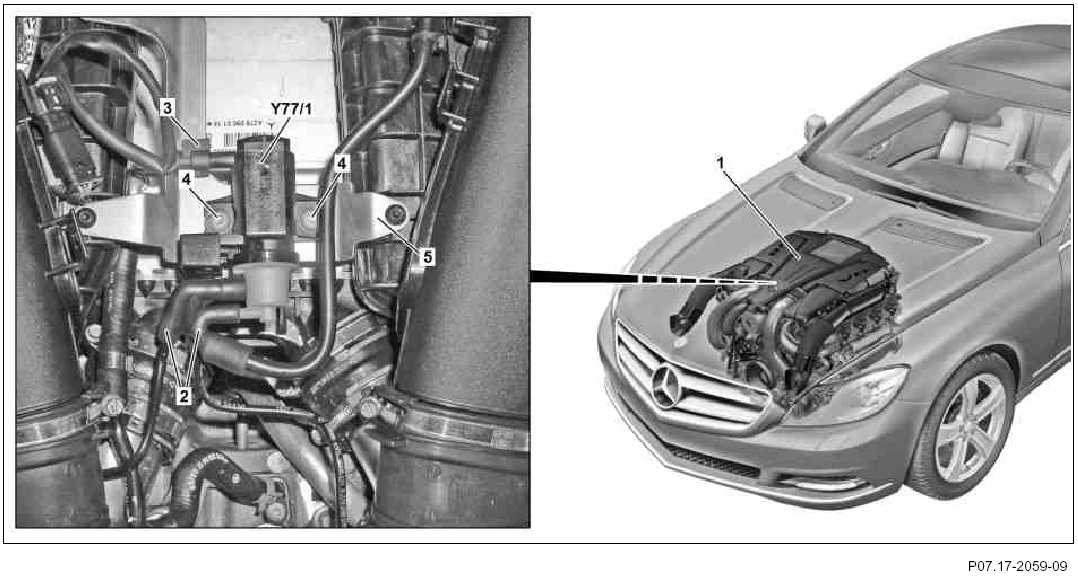

Shown on model 216 with engine 278







1 Engine cover
2 Vacuum line
3 Electrical connector
4 Bolt
5 Bracket
Y77/1 Charge pressure positioner
