AR47.10-P-4001SX Empty/Fill Fuel Tank



AR47.10-P-4001SX Empty/Fill Fuel Tank

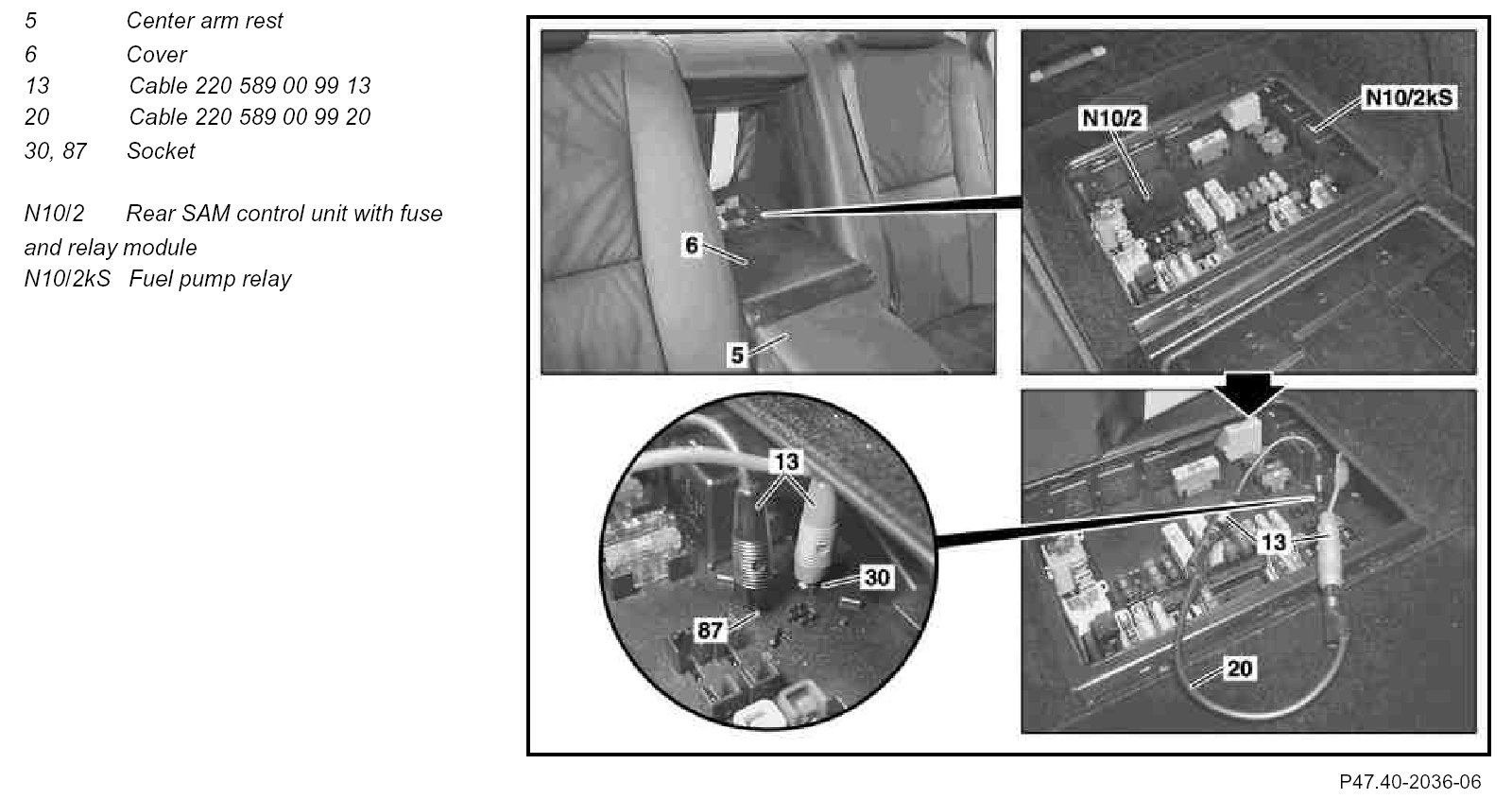

Component Identification:

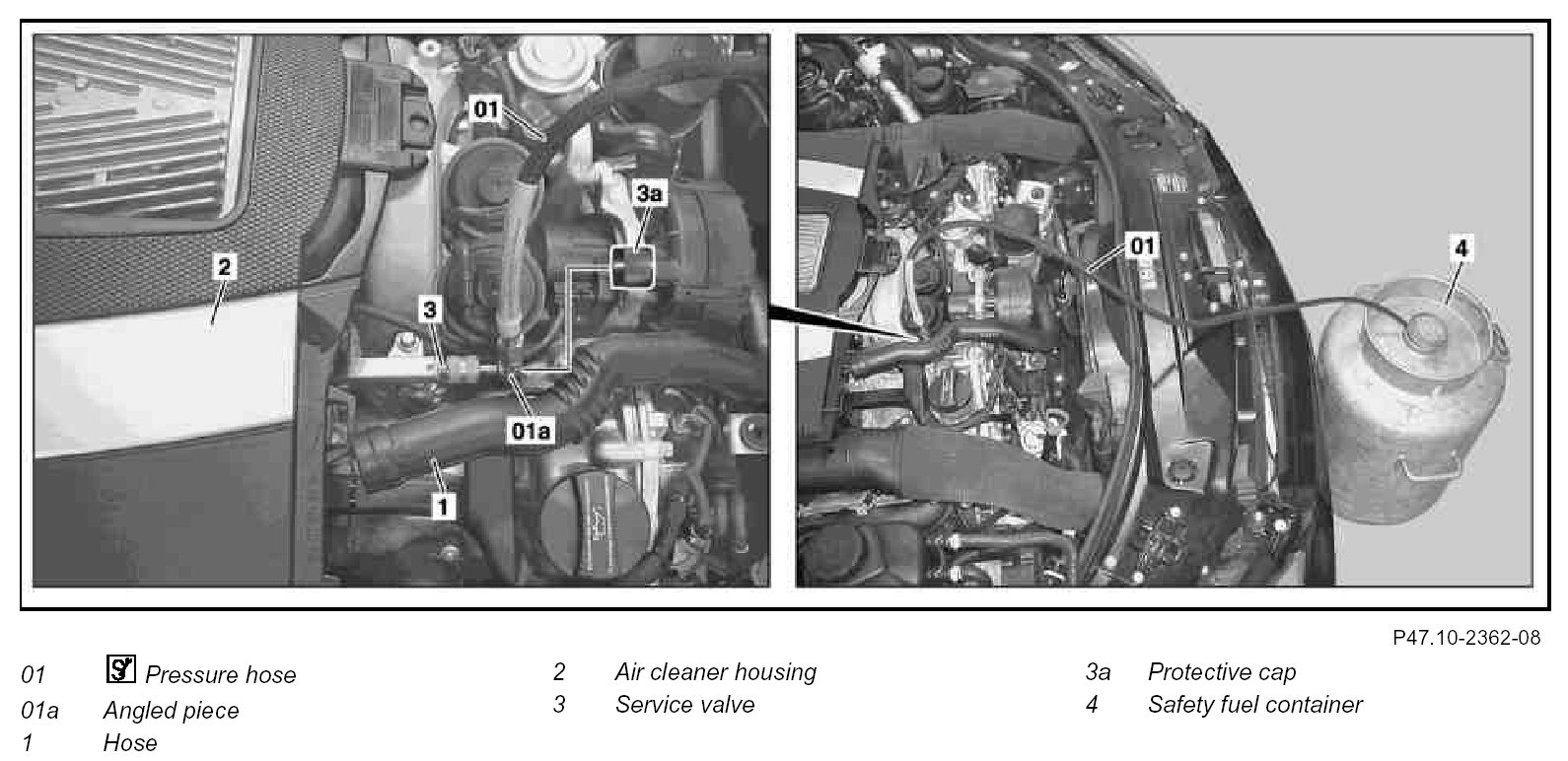

Component Identification:

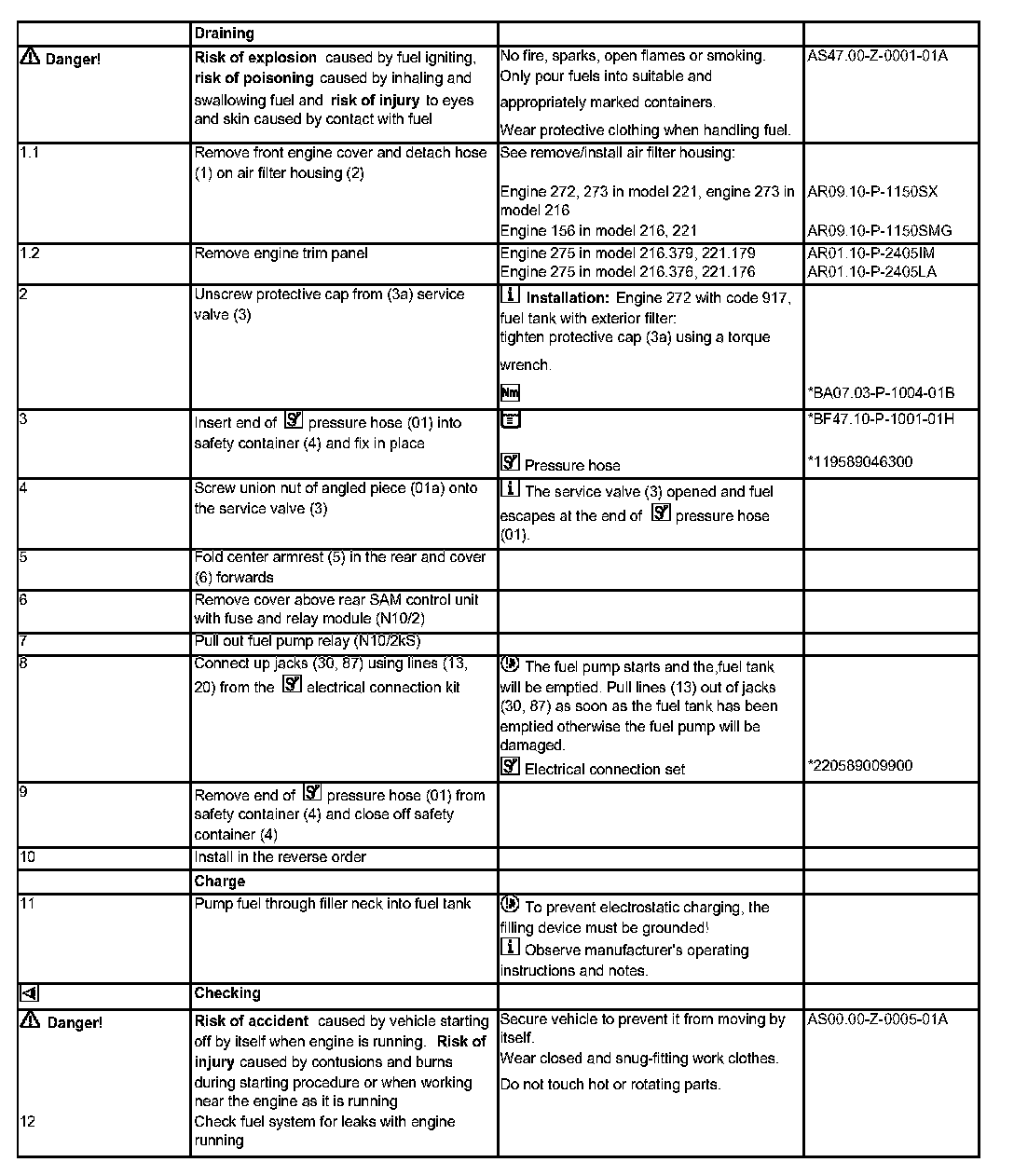

Steps 1.1 - 12:

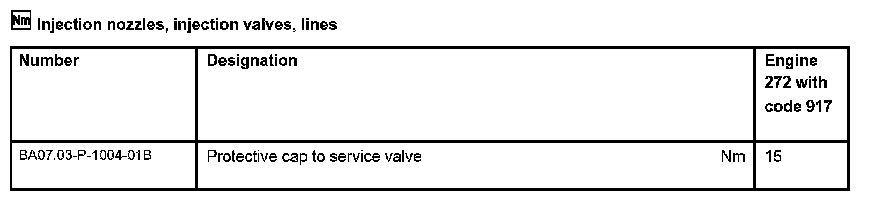

Injection Nozzles, Injection Valves, Lines:




Fuel Tank:




Special Tools:




Special Tools:
