Fuel Rail: Service and Repair

AR07.03-P-1010MMB Remove/Install Rail
ENGINES 157, 278 in MODEL 216, 221

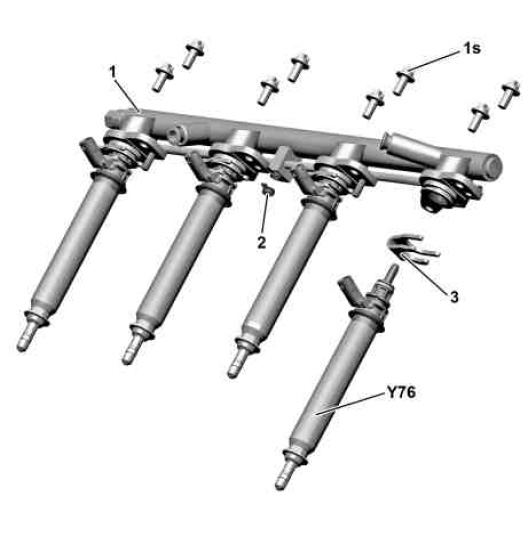

1 Rail
1s Bolts
2 Gasket
3 Holddown device

Y76 Fuel injectors























119 589 04 63 00
Pressure hose





278 589 00 15 00
Drift





278 589 00 33 00
Puller
