Evaporative Emission Control Canister: Service and Repair
AR47.30-P-8212SX Remove/Install Activated Charcoal Canister

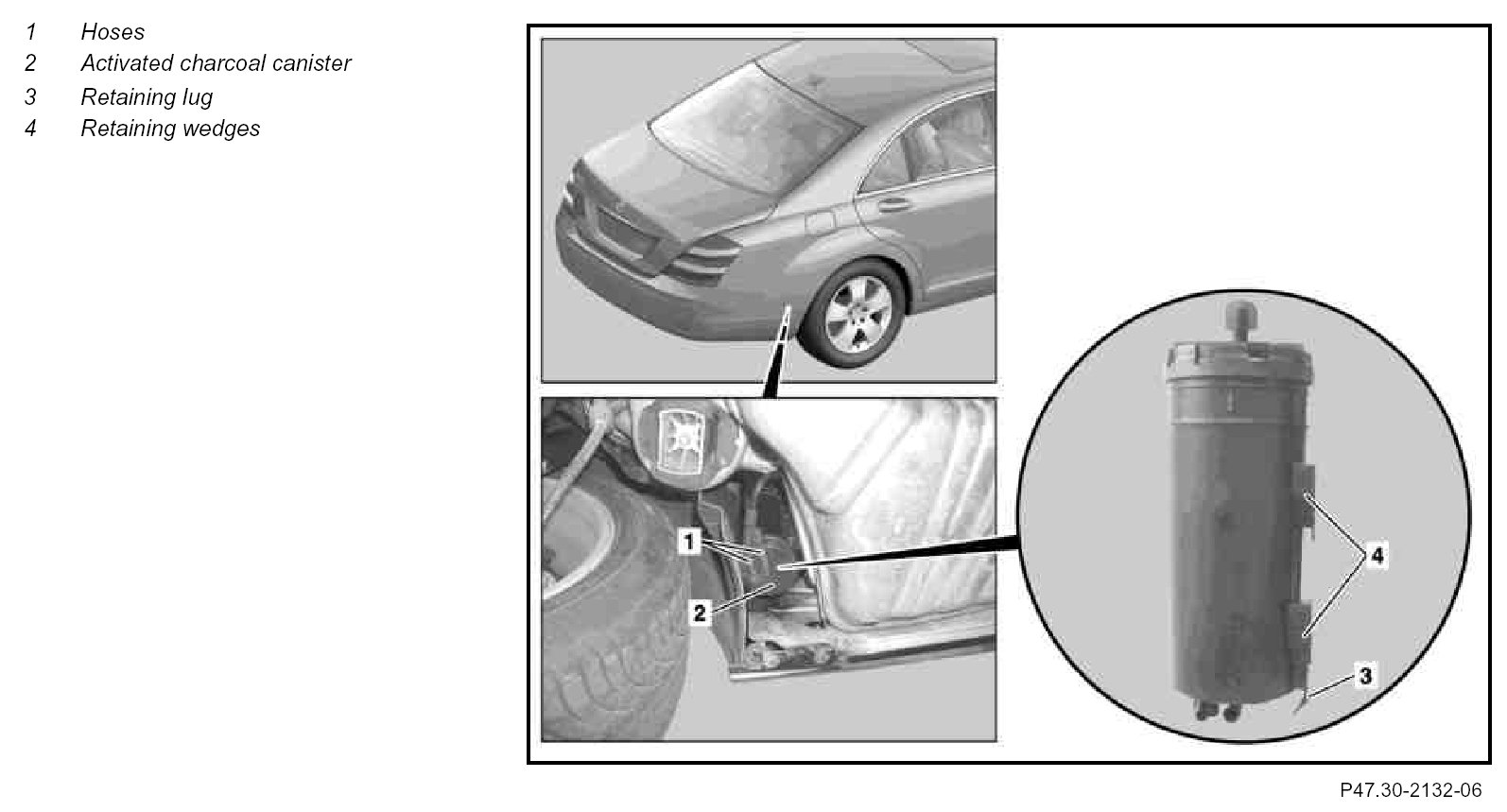

Component Identification:

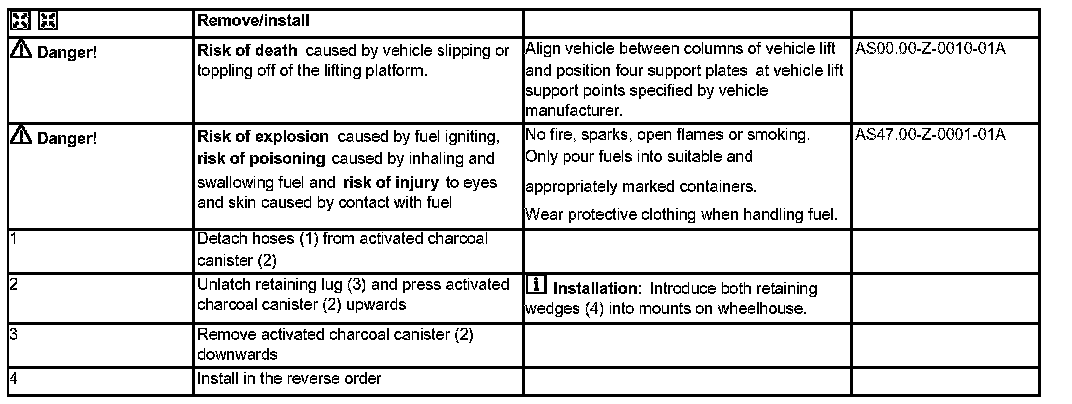

Steps 1 - 4:
