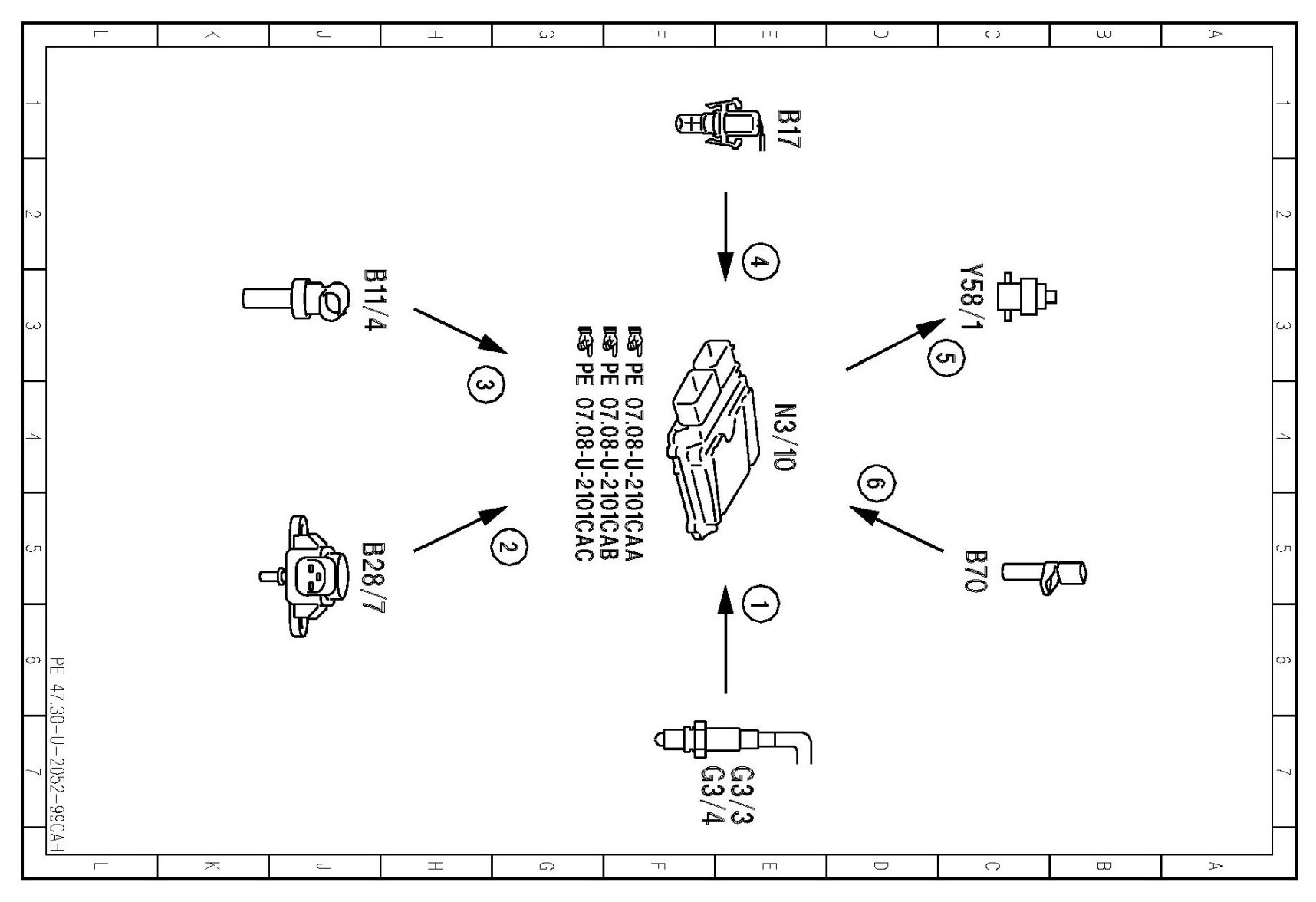

PE47.30-U-2052CAH Electrical Function Schematic For Purge Control

PE47.30-U-2052CAH Electrical Function Schematic For Purge Control

MODEL 216
- with ENGINE 157, 278



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
