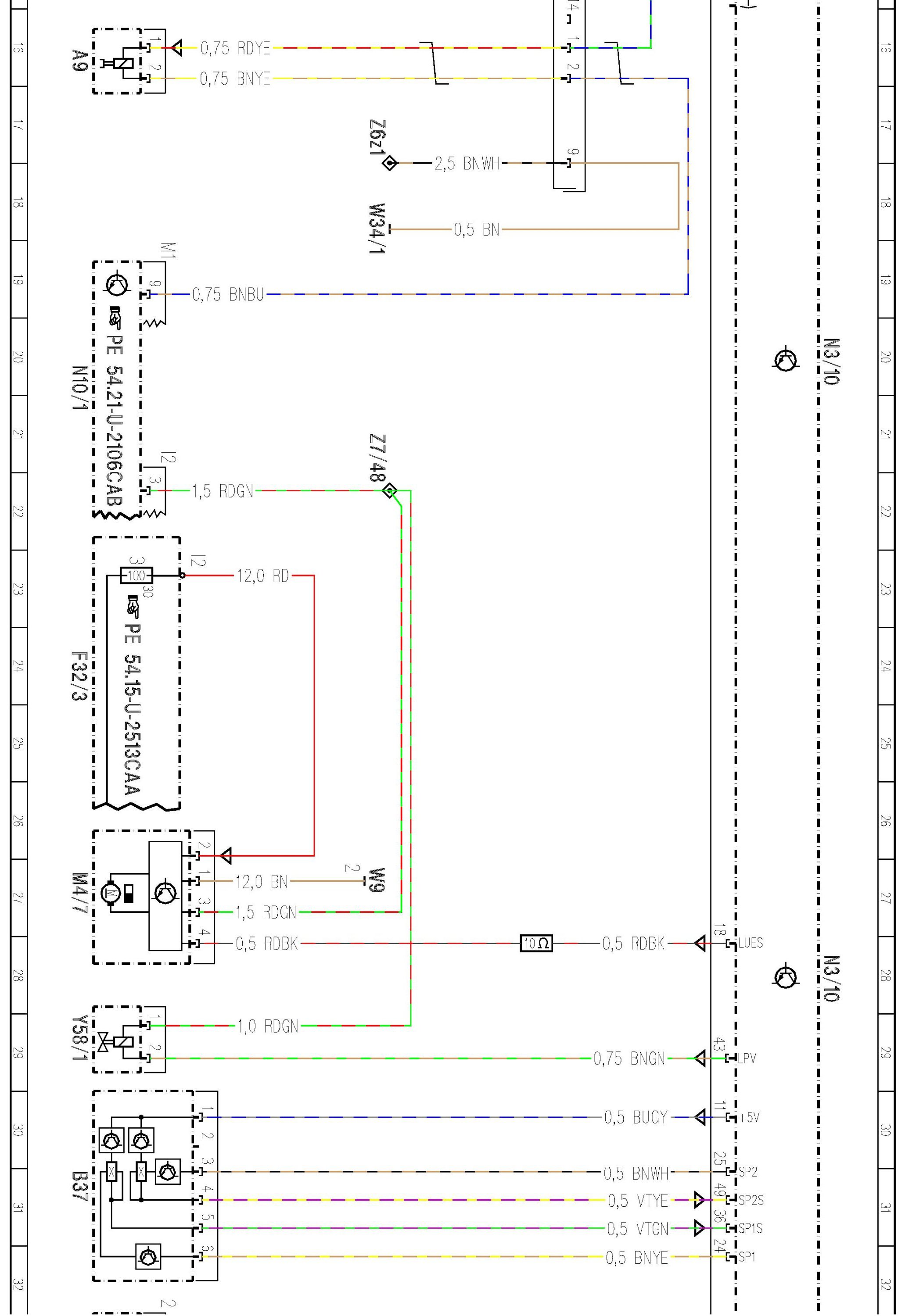

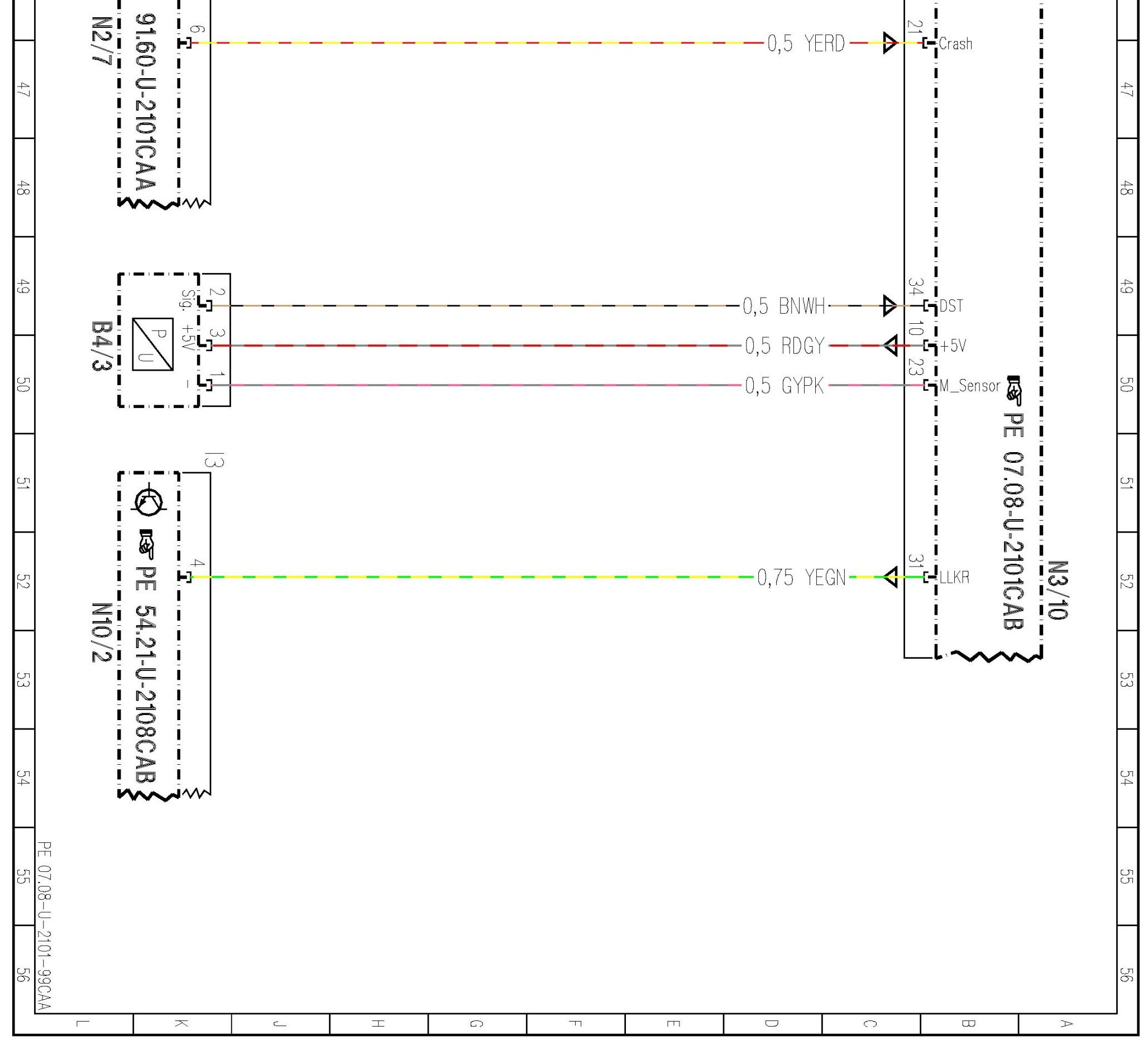

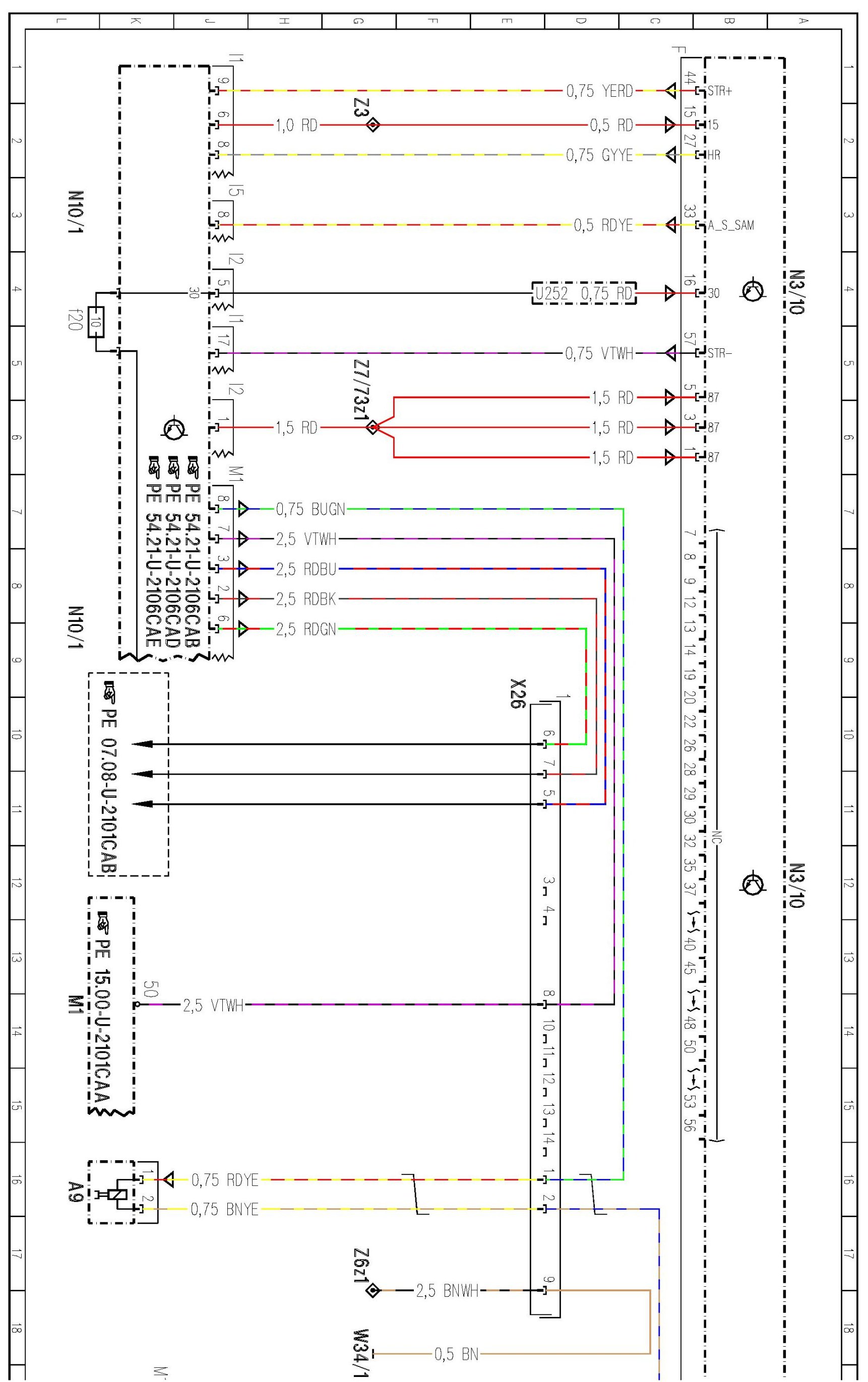

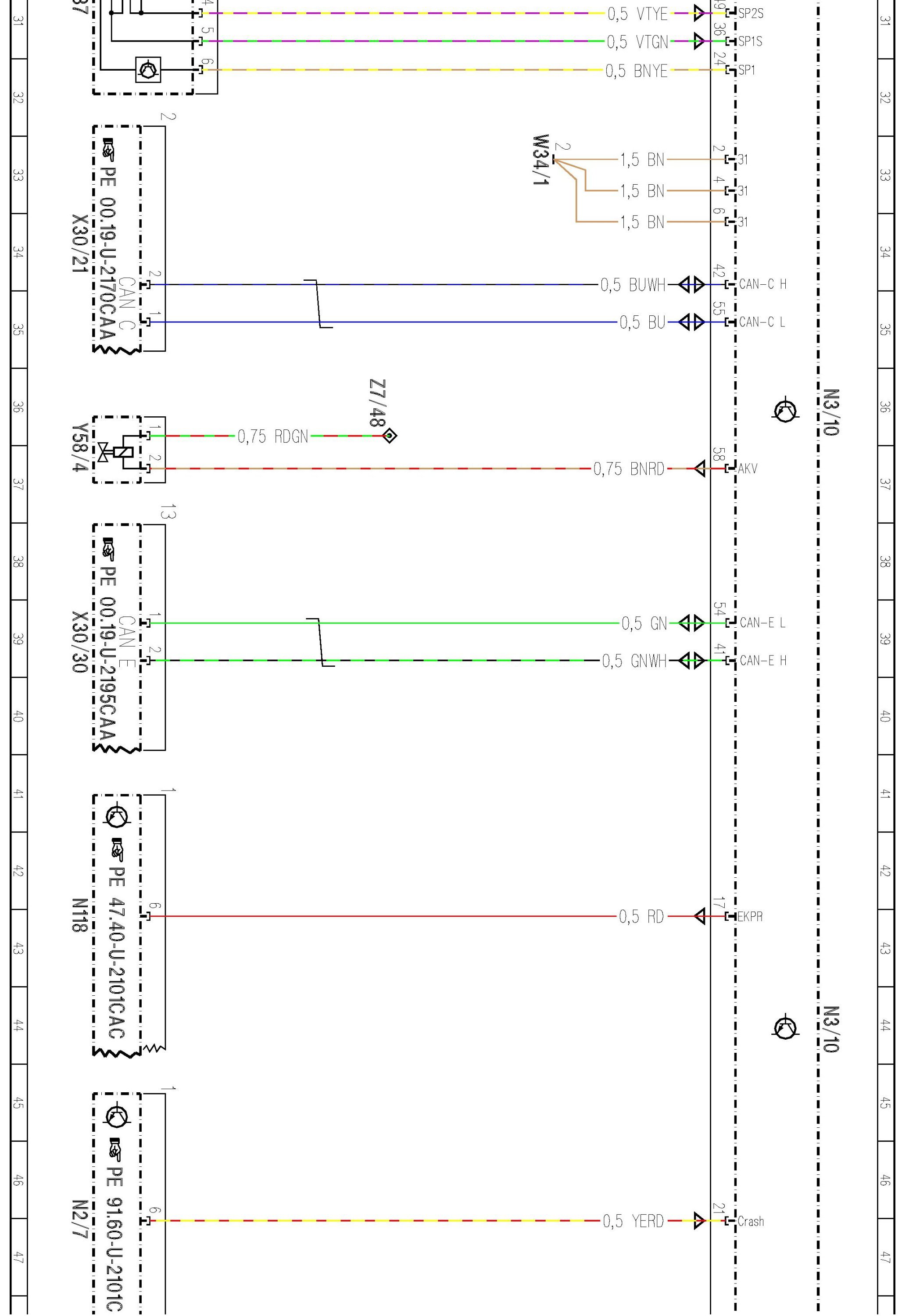

PE07.08-U-2101CAA Gasoline Direct Injection System Control Unit

PE07.08-U-2101CAA Gasoline Direct Injection System Control Unit

ENGINE 157, 278 in MODEL 216

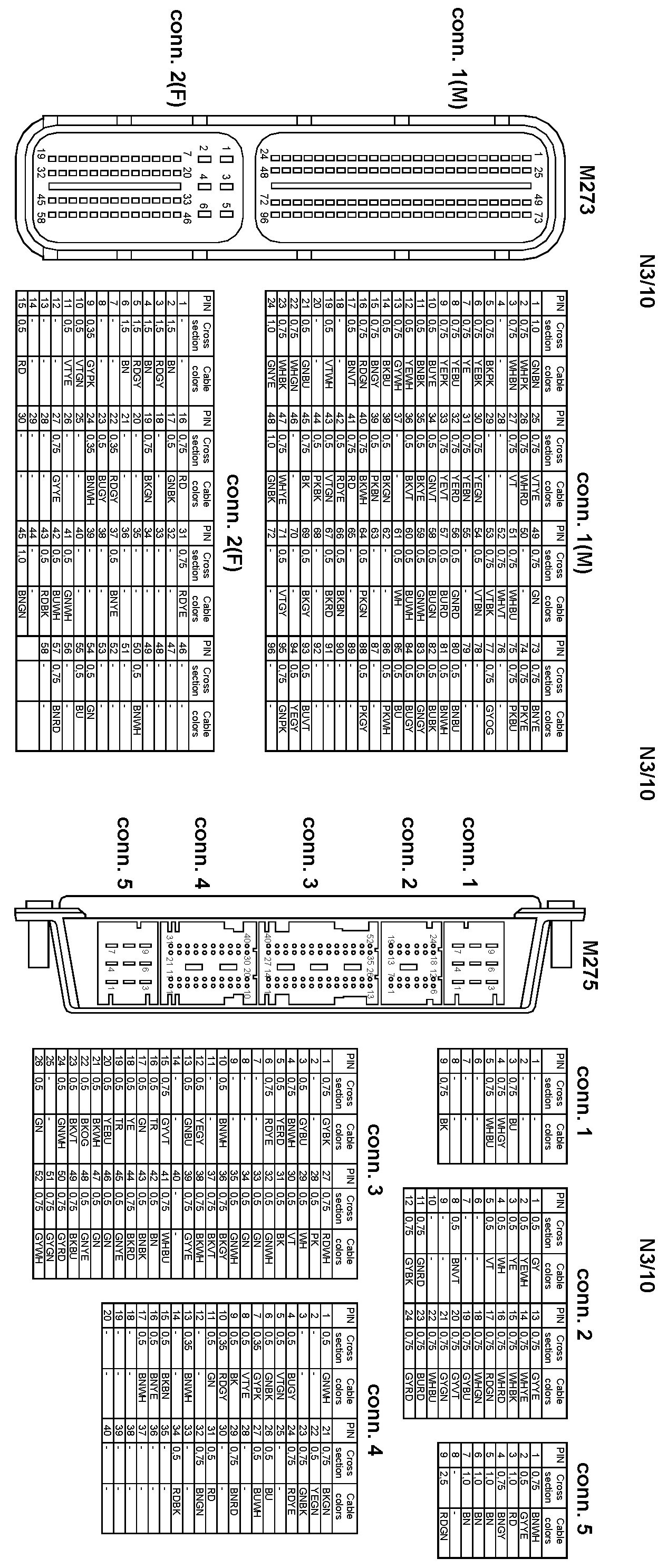

- Control unit N3/10, vehicle side















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
