Variable Valve Timing Solenoid: Service and Repair

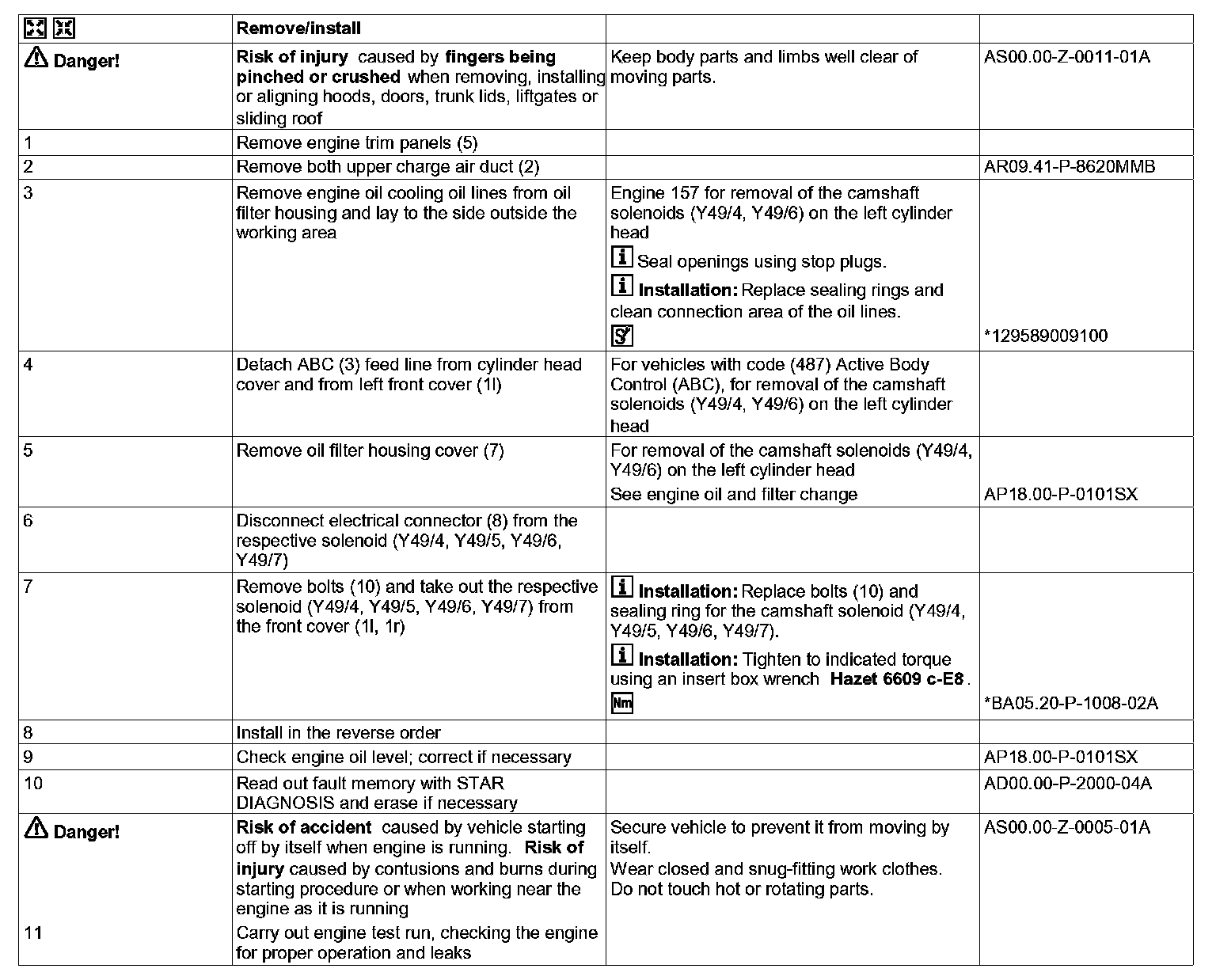

AR05.20-P-7295MMB Remove/Install Solenoid Camshaft
-ENGINES 157, 278 in MODEL 216, 221

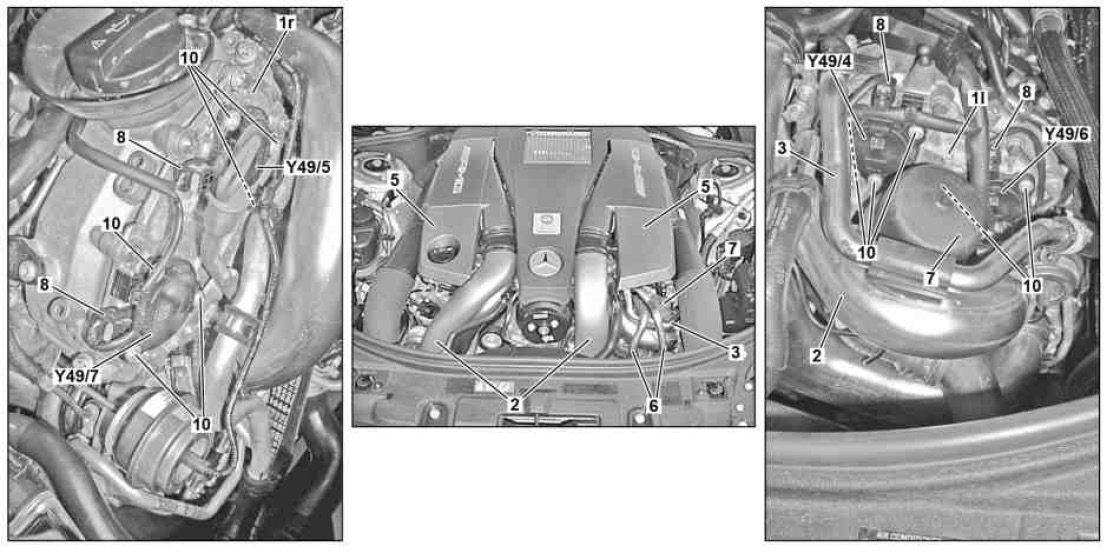

1l Front cover on the left
1r Front cover on the right
2 Upper charge air duct
3 Active Body Control (ABC) feed line
5 Engine cover
6 Engine oil cooling oil line
7 Oil filter housing cap
8 Electrical connector
10 Screw

Y49/4 Left intake camshaft solenoid
Y49/5 Right intake camshaft solenoid
Y49/6 Left exhaust camshaft solenoid
Y49/7 Right exhaust camshaft solenoid











129 589 00 91 00
Set of stop plugs
