Air Temperature Sensor ( Ambient / Intake ): Service and Repair

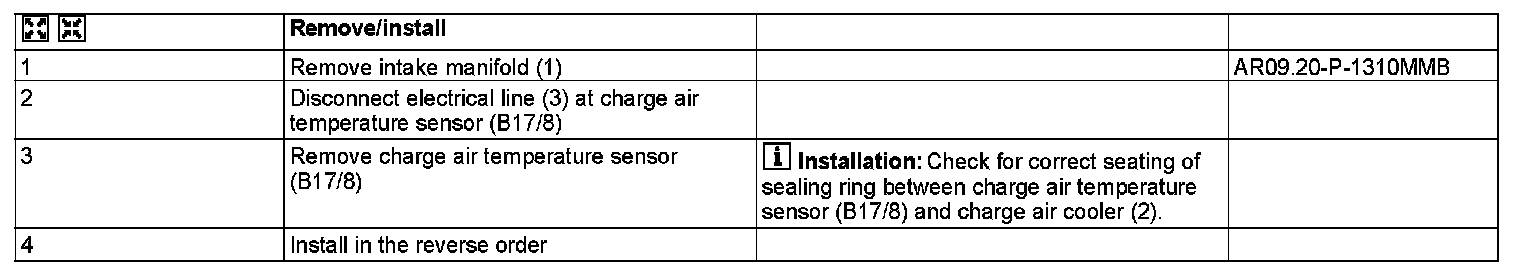

AR07.52-P-1466MMB Remove/install Charge Air Temperature Sensor
- ENGINES 157, 278 in MODEL 216, 221

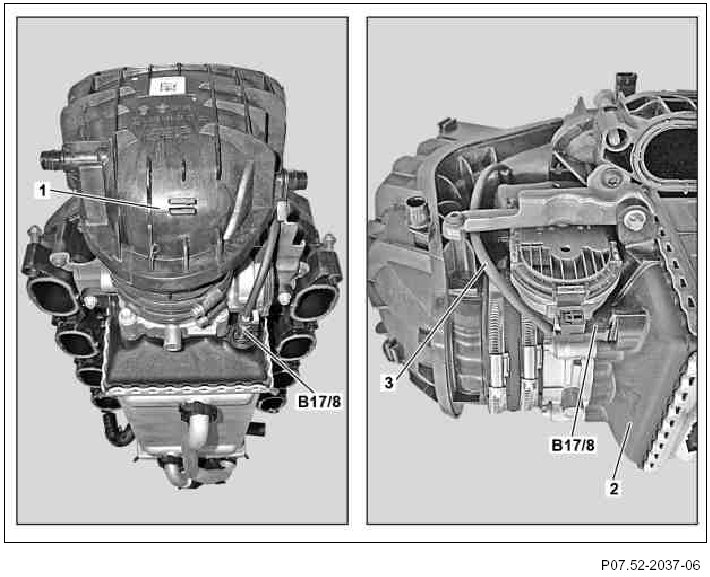

1 Intake manifold
2 Charge air cooler
3 Electrical line
B17/8 Charge air temperature sensor
