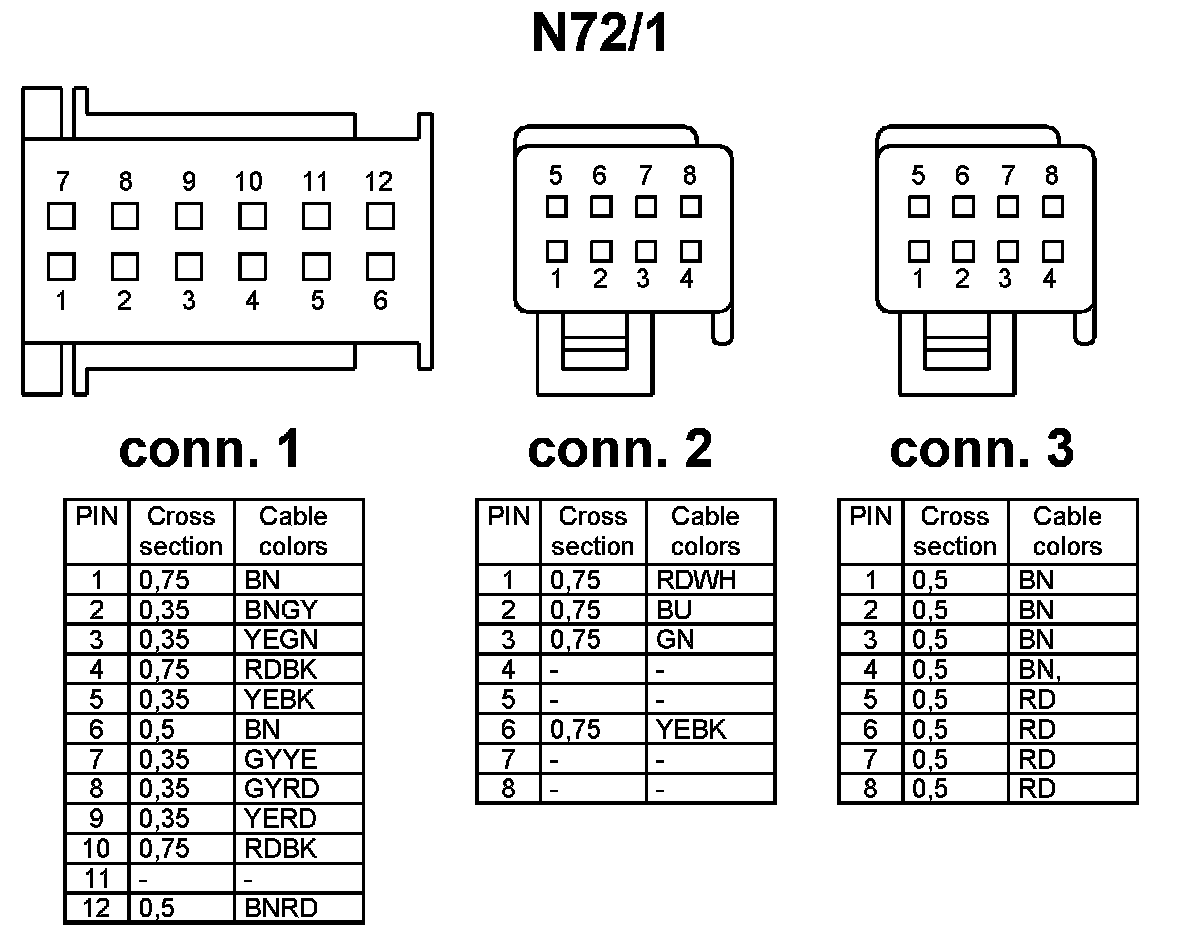

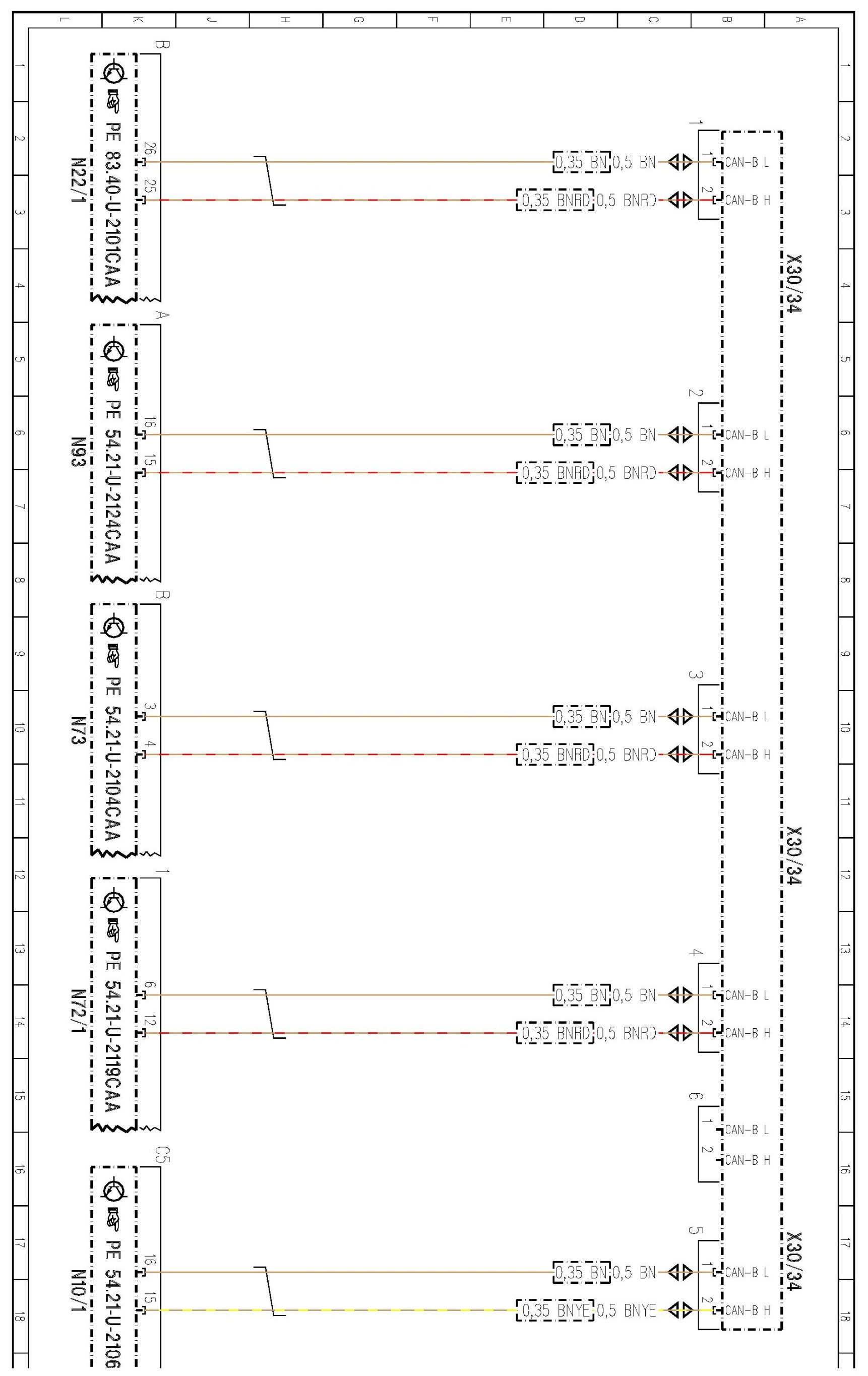

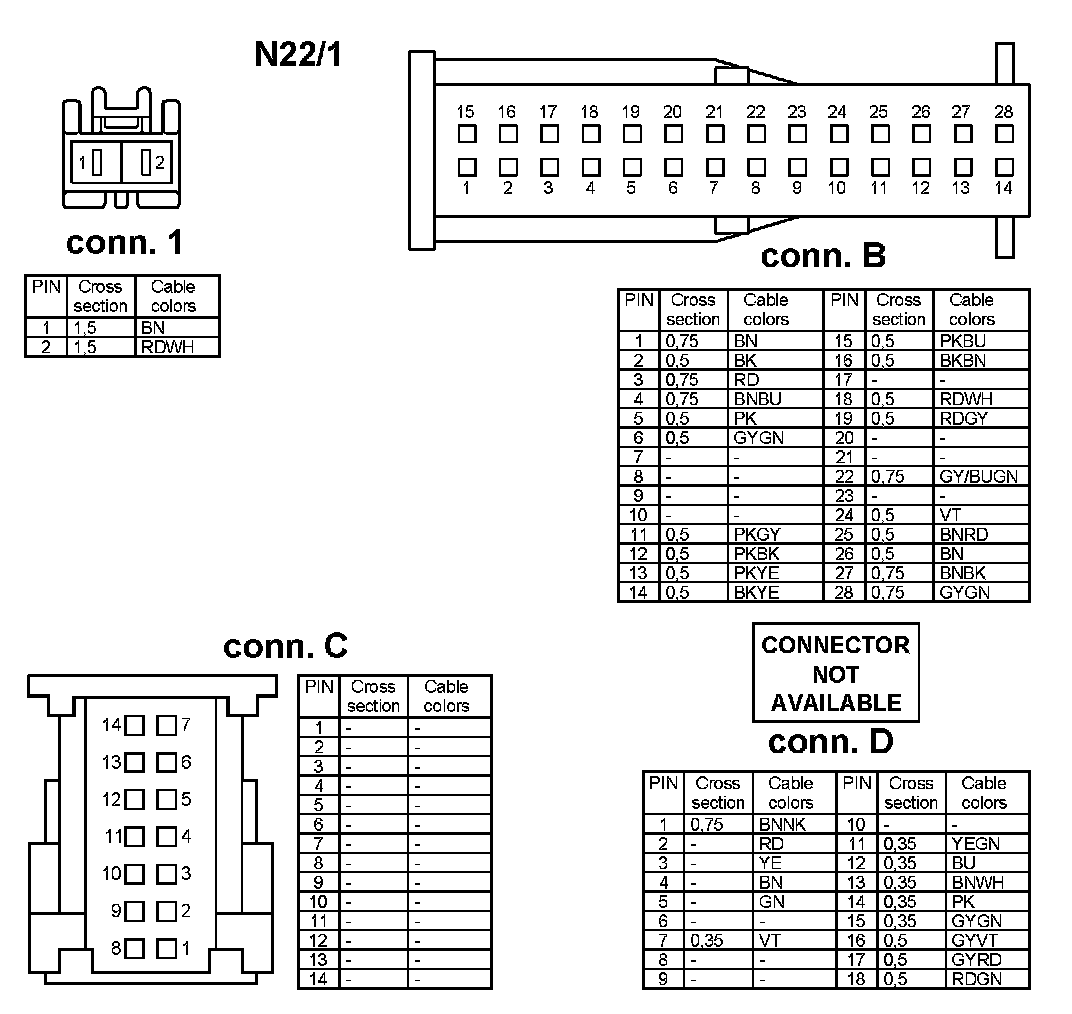

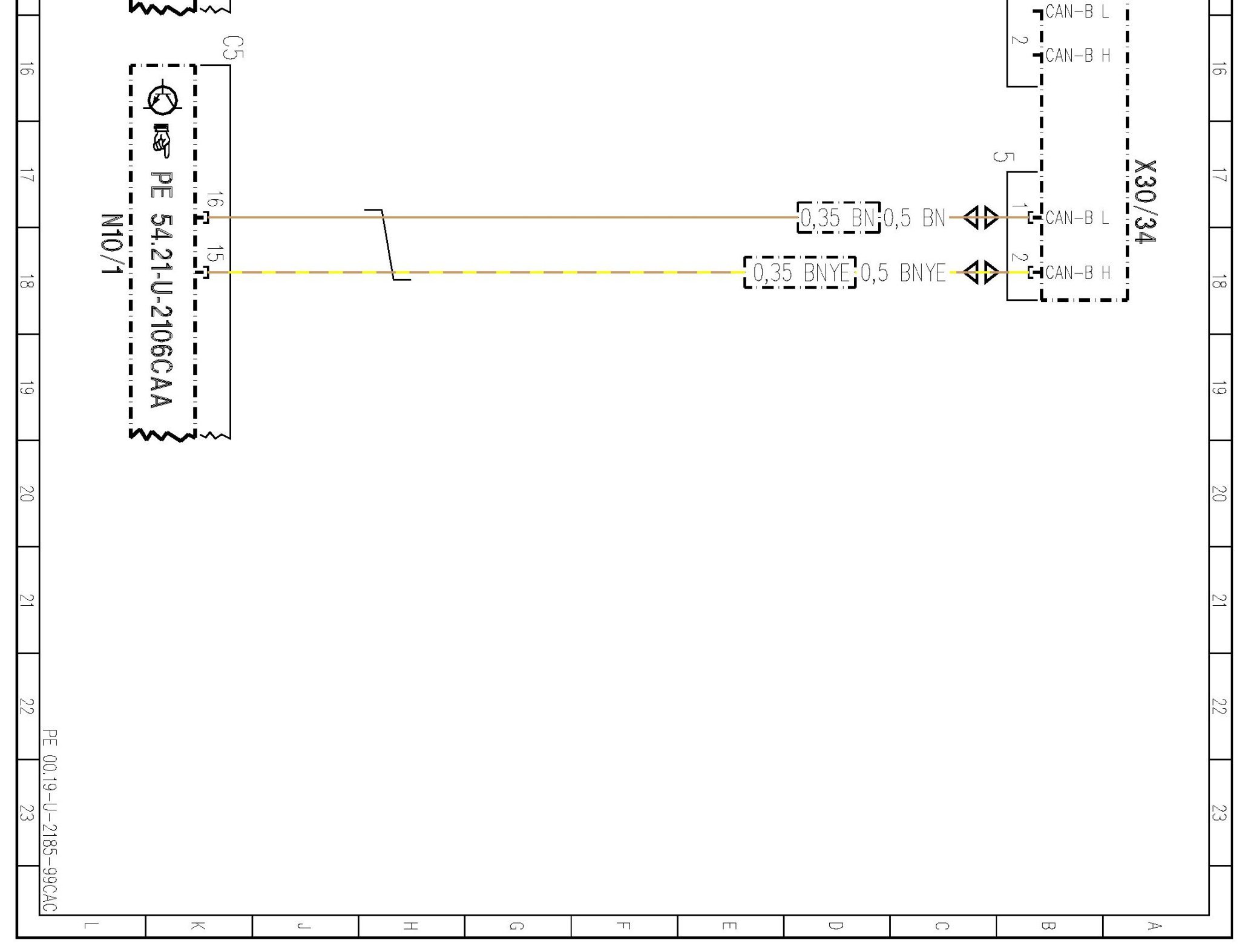

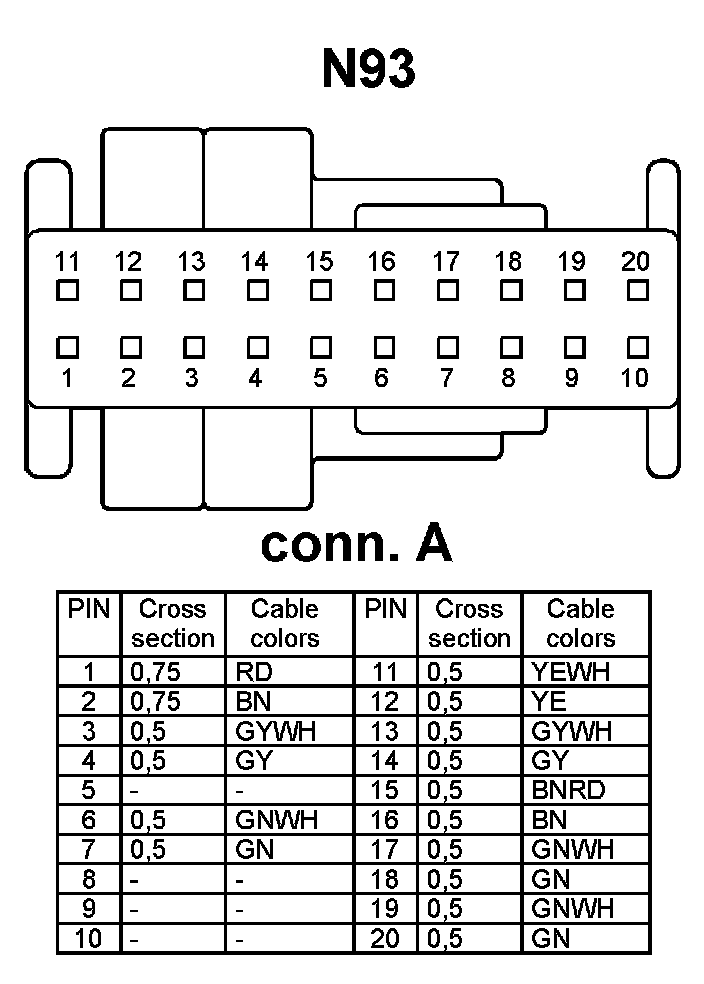

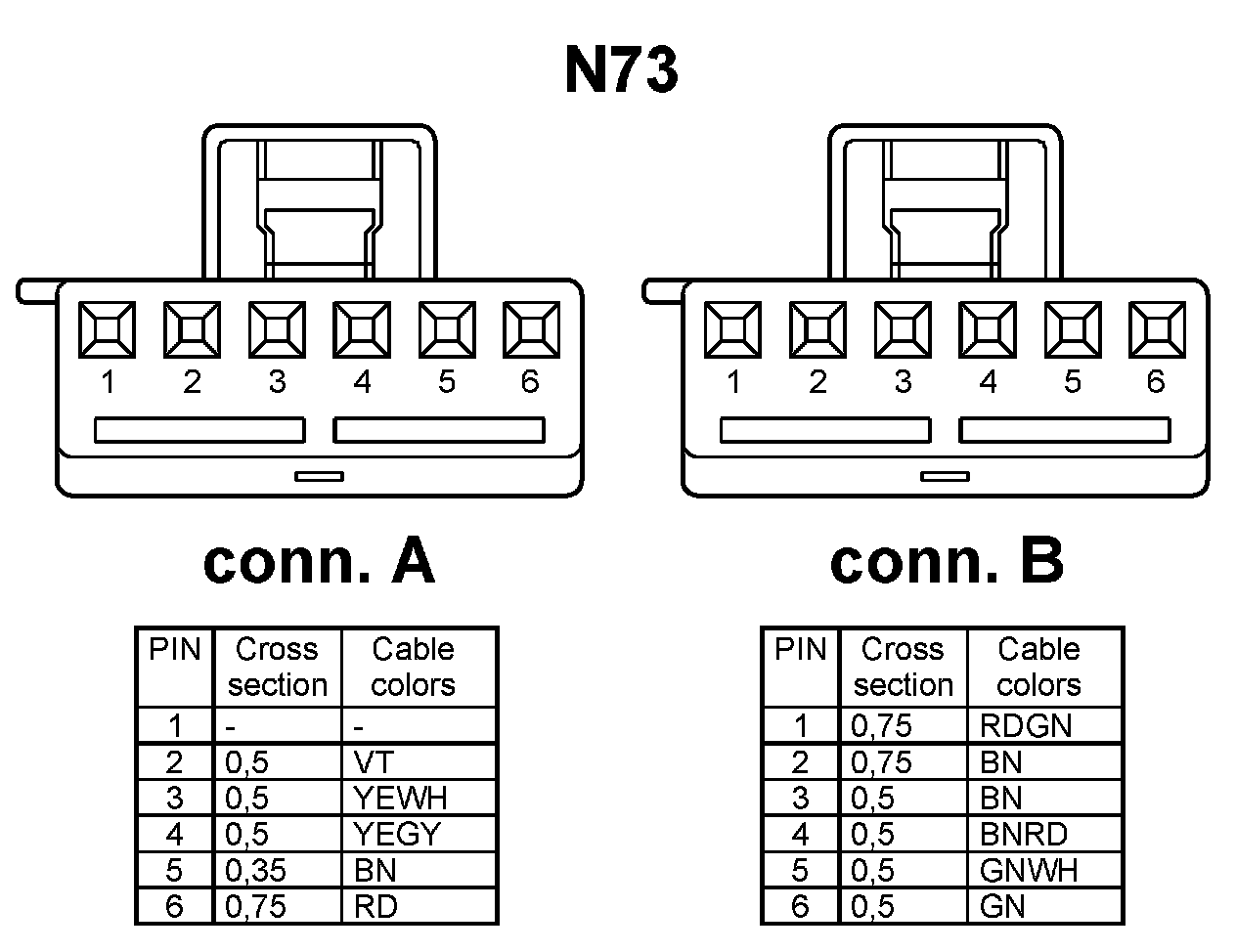

PE00.19-U-2185CAC Interior CAN



PE00.19-U-2185CAC Interior CAN

MODEL 216

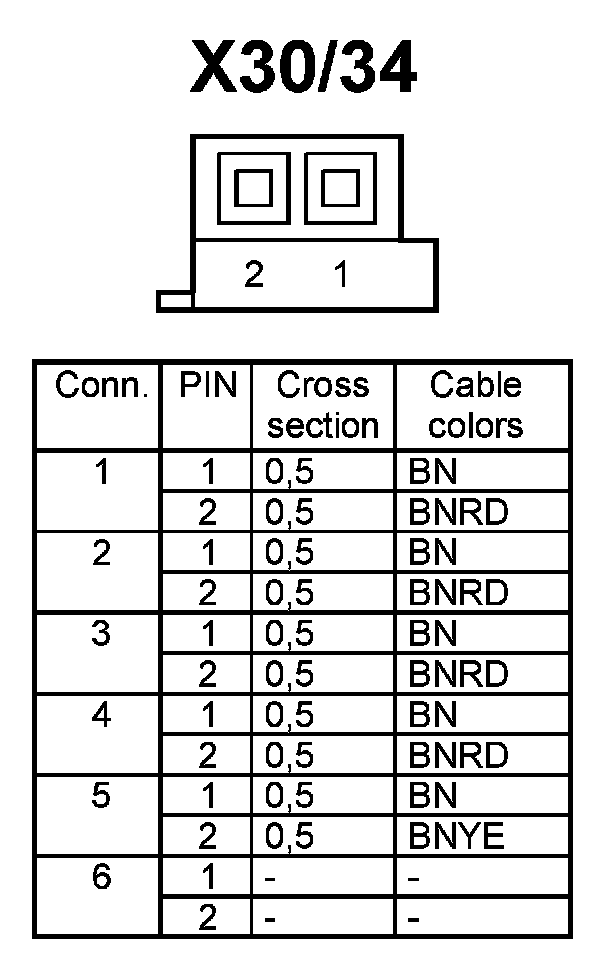

- Voltage distributor X30/34







































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
