GF00.19-P-0800LA Can Electrical Connector, As-Built Configuration

GF00.19-P-0800LA CAN Electrical Connector, As-built Configuration
- MODEL 216.3 as of model year 2009 /YoM 08

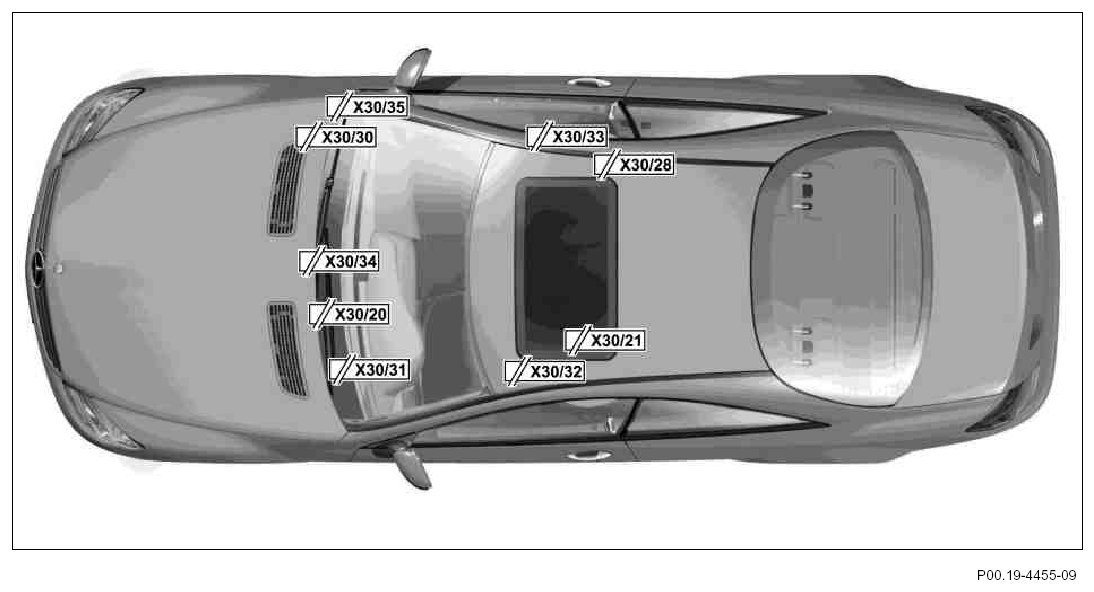

Overview of connectors







X30/20 Central CAN voltage distributor connector
X30/21 Drive train CAN voltage distributor connector
X30/28 Vehicle dynamics CAN voltage distributor connector
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector
X30/31 Chassis CAN/cockpit voltage distributor connector
X30/32 Left interior CAN/FFS [RBA] voltage distributor connector
X30/33 Right interior CAN/FFS [RBA] voltage distributor connector
X30/34 Interior CAN/cockpit voltage distributor connector
X30/35 Telematics CAN voltage distributor connector

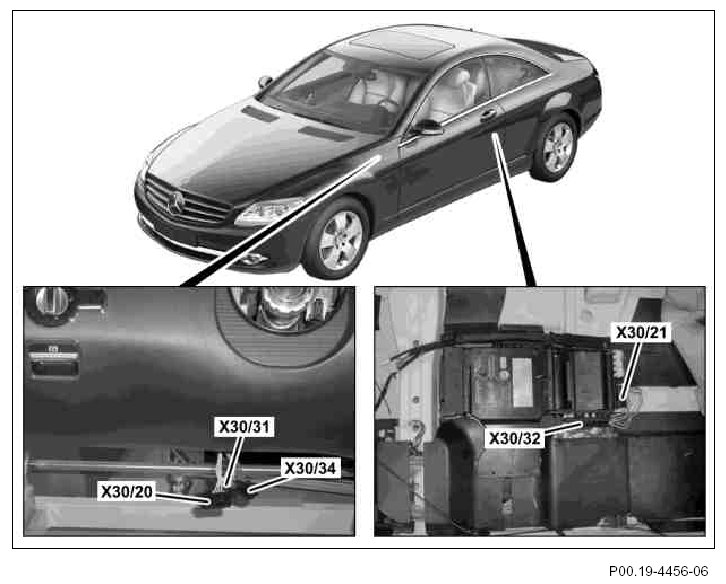

Connectors on left side of vehicle







X30/20 Central CAN voltage distributor connector
X30/21 Drive train CAN voltage distributor connector
X30/31 Chassis CAN/cockpit voltage distributor connector
X30/32 Left interior CAN/FFS [RBA] voltage distributor connector
X30/34 Interior CAN/cockpit voltage distributor connector

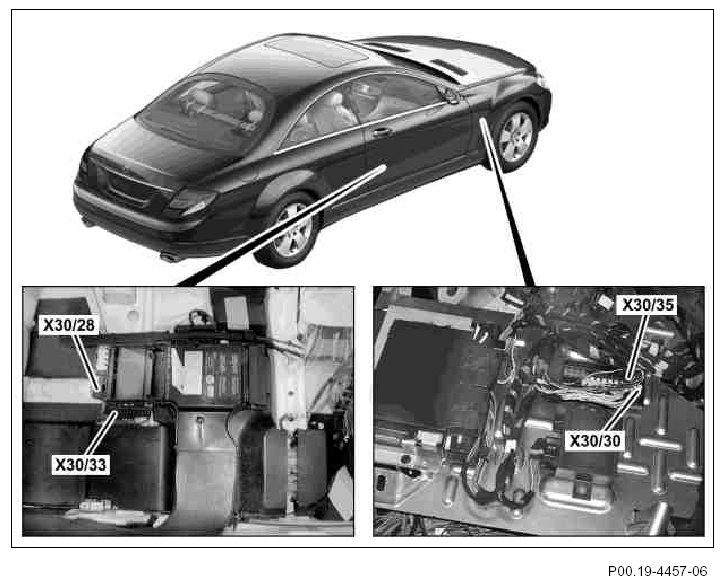

Connectors on right side of vehicle







X30/28 Vehicle dynamics CAN voltage distributor connector
X30/30 Chassis CAN/FFS [RBA] voltage distributor connector
X30/33 Right interior CAN/FFS [RBA] voltage distributor connector
X30/35 Telematics CAN voltage distributor connector

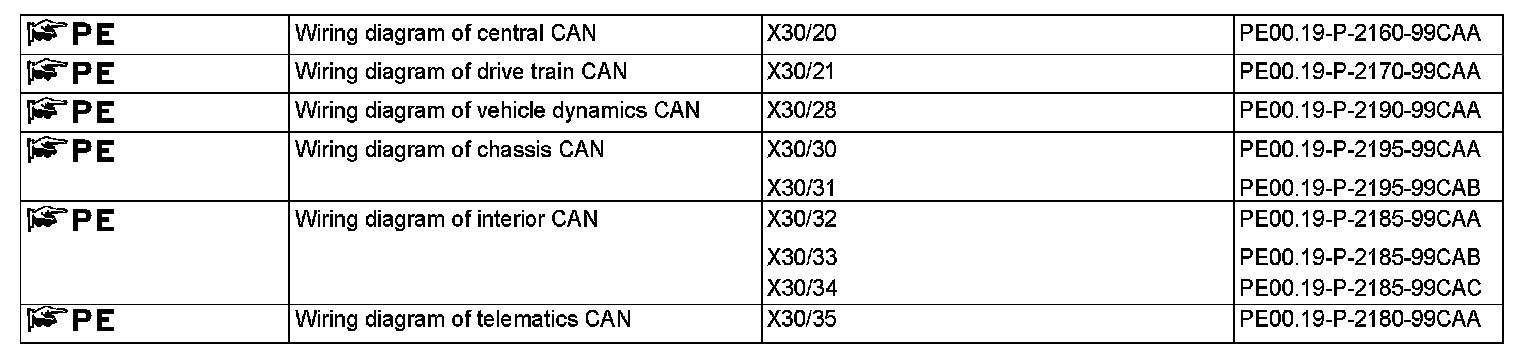

CAN hub assignment
- Central CAN voltage distributor connector
- Drive train CAN voltage distributor connector
- Vehicle dynamics CAN voltage distributor connector
- Chassis CAN/FFS [RBA] voltage distributor connector
- Chassis CAN/cockpit voltage distributor connector
- Left interior CAN/FFS [RBA] voltage distributor connector
- Right interior CAN/FFS [RBA] voltage distributor connector
- Interior CAN/cockpit voltage distributor connector
- Telematics CAN voltage distributor connector

Central CAN voltage distributor connector
- Instrument cluster (A1)
- COMAND controller unit (A40/3)
- Central gateway control unit (N93)

Drive train CAN voltage distributor connector
- Intelligent servo module for DIRECT SELECT (A80)
- ME-SFI [ME] control unit (N3/10)
- ETC [EGS] control unit (N15/3) (with transmission 722.6)
- Fuel pump control unit (N118)
- Ground (left front seat cross member (W18)
- Fully integrated transmission control unit (VGS) (Y3/8n4) (with transmission 722.9)

Vehicle dynamics CAN voltage distributor connector
- DTR control unit (A89) (with code (219) Distronic (DTR) or with code (233) DISTRONIC PLUS)
- Yaw rate, lateral and longitudinal acceleration sensor (B24/15)
- ESP control unit (N47-5)
- Radar sensor control unit (SGR) (N62/1) (with code (233) DISTRONIC PLUS)
- Night view assist control unit (N101) (with code (610) Night view assist)

Chassis CAN/FFS [RBA] voltage distributor connector
- Restraint systems control unit (N2/7)
- ME-SFI [ME] control unit
- ESP control unit
- ABC control unit (N51/2)
- Radar sensors control unit (SGR) (with code (233) Distronic Plus)
- Ground, right footwell (W15/1) (on left-hand drive vehicles)
- Electronic ground (left footwell) (W34/1) (on right-hand drive vehicles)

Chassis CAN/cockpit voltage distributor connector
- EIS [EZS] control unit (N73)
- Steering column module (N80)
- Central gateway control unit

Left interior CAN/FFS [RBA] voltage distributor connector
- Multicontour seat pneumatic pump (M40) (with code (409) Left/right front multicontour seats)
- Pneumatic pump for dynamic seat control (M40/1) (with code (432) Left and right dynamic multicontour seat)
- Front SAM control unit with fuse and relay module (N10/1)
- Rear SAM control unit with fuse and relay module (N10/2)
- left front seat control unit (N32/1)
- Left front multicontour backrest control unit (N32/15) (with code (409) Left/right front multicontour seats )
- Left front dynamic seat control unit (N32/19) (with code (432) Left and right dynamic multicontour seat)
- Reversing camera control unit (N66/2) (with code (218) Reversing camera and code (498) Japan version)
- Left door control unit (N69/1)
- KEYLESS-GO control unit (N69/5) (with code (889) Keyless Go)
- Right interior CAN/FFS [RBA] voltage distributor connector

Right interior CAN/FFS [RBA] voltage distributor connector
- STH control unit (A6n1) (with code (228) Stationary heater)
- Rear control unit (N22/6)
- right front seat control unit (N32/2)
- Right front multicontour backrest control unit (N32/16) (with code (409) Left/right front multicontour seats )
- Right front dynamic seat control unit (N32/22) (with code (432) Left and right dynamic multicontour seat)
- PTS control unit (N62) (with code (220) PARKTRONIC)
- Right door control unit (N69/2)
- Overhead control panel control unit (N70)
- TPM control unit (N88) (with code (475) Tire pressure monitor (Premium) or with code (494) USA version)
- WSS (weight sensing system) control unit (N110) (with code (494) USA version)
- TLC [HDS] control unit (N121)
- Left interior CAN/FFS [RBA] voltage distributor connector

Interior CAN/cockpit voltage distributor connector
- Front SAM control unit
- AAC [KLA] control unit (N22/1)
- Upper control panel control unit (N72/1)
- EIS [EZS] control unit
- Central gateway control unit

Telematics CAN voltage distributor connector
- COMAND controller unit
- COMAND display (A40/8) (without code (867) SPLITVIEW)
- Front central operating unit (A40/9)
- SPLITVIEW display (A40/10) (with code (867) SPLITVIEW)
- TV combination tuner (analog/digital) (A90/1) (with code (863) Digital/analog TV tuner)
- Ground, right footwell (on left-hand drive vehicles)
- Electronic ground (left footwell) (on right-hand drive vehicles)
