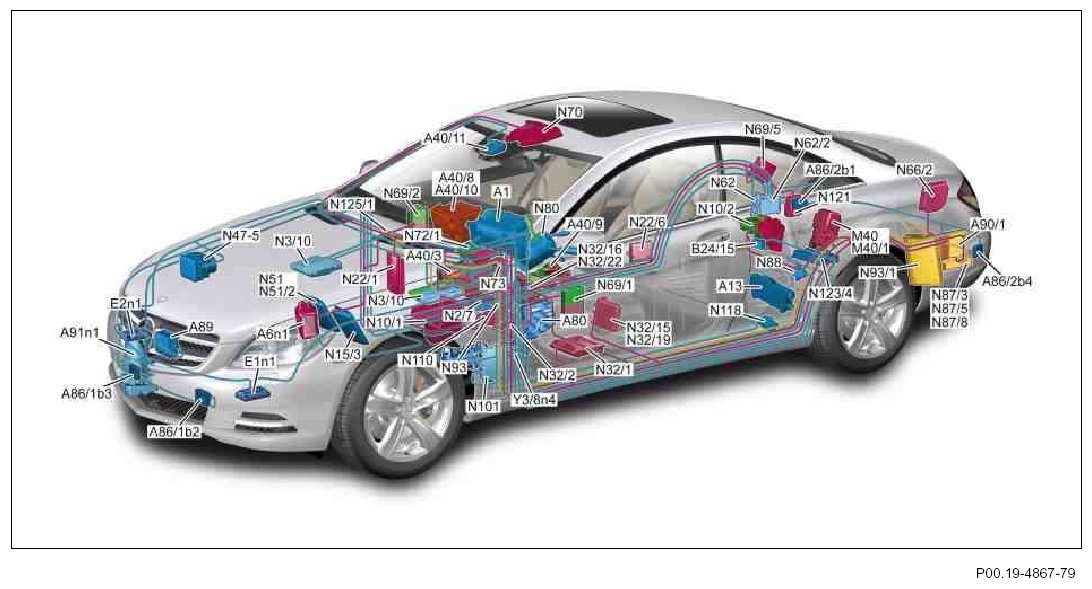

GF00.19-P-0001-01LAA Overall Network (GVN), Location of Components
GF00.19-P-0001-01LAA Overall Network (GVN), Location Of Components
A1 Instrument cluster
A6n1 STH control unit (with code (228) Stationary heater) A13 Electric parking brake control unit
A40/3 COMAND control unit
A40/8 COMAND display (without (867) SPLITVIEW)
A40/9 Front central operating unit
A40/10 SPLITVIEW display (with code (867) SPLITVIEW)
A40/11 Multifunction camera (with code (238) Active Lane Keeping Assist or code (476) Automatic Lane Recognition, code (513) Speed Limit Assist or code (608) Adaptive Highbeam Assist)
A80 Intelligent servo module for DIRECT SELECT
A86/1b2 Front bumper, inner left radar sensor (with code (233) DISTRONIC PLUS or code (237) Active Blind Spot Assist)
A86/1b3 Front bumper, inner right radar sensor (with code (233) DISTRONIC PLUS or code (237) Active Blind Spot Assist)
A86/2b1 Rear bumper, outer right radar sensor (with code (234) Blind Spot Assist or code (237) Active Blind Spot Assist)
A86/2b4 Rear bumper, outer left radar sensor (with code (234) Blind Spot Assist or code (237) Active Blind Spot Assist)
A89 DTR controller unit (with code (233) DISTRONIC PLUS or code (237) Active Blind Spot Assist)
A90/1 TV combination tuner (analog/ digital) (for code (863) Digital/ analog TV tuner)
A91/1 Electrohydraulic power steering (model 216.373/394)
B24/15 Yaw rate, lateral and longitudinal acceleration sensor
E1n1 Xenon headlamp control unit
E2n1 Xenon headlamp control unit
M40 Multicontour seat pneumatic pump (with code (409) Left/right front multicontour seats)
M40/1 Pneumatic pump for dynamic seat control (with code (432) Left and right dynamic multicontour seat)
N2/7 Restraint systems control unit
N3/10 ME-SFI [ME] control unit (with engine 157, 278 in center, with engine 275 located on left)
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/3 EGS control unit (with transmission 722.6)
N22/1 AAC [KLA] control unit
N22/6 Rear control unit
N32/1 Left front seat control unit
N32/2 Right front seat control unit
N32/15 Left front multicontour backrest control unit (with code (409) Left/right front multicontour seats)
N32/16 Right front multicontour backrest control unit (with code (409) Left/right front multicontour seats)
N32/19 Left front dynamic seat control unit (with code (432) Left and right dynamic multicontour seat)
N32/22 Right front dynamic seat control unit (with code (432) Left and right dynamic multicontour seat)
N47-5 ESP control unit
N51 AIRmatic with ADS control unit (with code (489) AIRmatic (air suspension with continuous adjustment damping)
N51/2 ABC control unit (without code (489) AIRmatic (air suspension with continuous adjustment damping))
N62 PTS control unit (with code (220) PARKTRONIC or code (230) Exclusive parking assist)
N62/2 Video and radar sensor system control unit (with code (233) DISTRONIC PLUS, code (237) Active Blind Spot Assist or code (238) Active Lane Keeping Assist)
N66/2 Reversing camera control unit (with code (218) Reversing camera and code (498) Japan version)
N69/1 Door control module left
N69/2 Door control module right
N69/5 Keyless-Go control unit (with code (889) Keyless-Go)
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N73 EZS control unit N80 Steering column module
N87/3 Digital Audio Broadcasting control unit (with code (537) Digital radio)
N87/5 SDAR control unit (with code (536) SIRIUS satellite radio)
N87/8 High definition tuner control unit (with code (517) HD radio)
N88 TPM [RDK] control unit (with code (475) Tire pressure monitor (Premium), Schrader company)
N93 Central gateway control unit
N93/1 Audio tuner control unit
N101 Night View Assist control unit (for code (610) Night View Assist)
N110 WSS (Weight Sensing System) control unit (with code (494) USA version)
N118 Fuel pump control unit
N121 TLC [HDS] control unit (with code (881) Remote trunk closing (RTC [HDFS]))
N123/4 Emergency call system control unit (with code (359) TELE AID emergency call system)
N125/1 Media interface control unit (with code (518) Media interface)
Y3/8n4 Fully integrated transmission control unit (VGS) (with transmission 722.9)
