Engine Control Module: Service and Repair

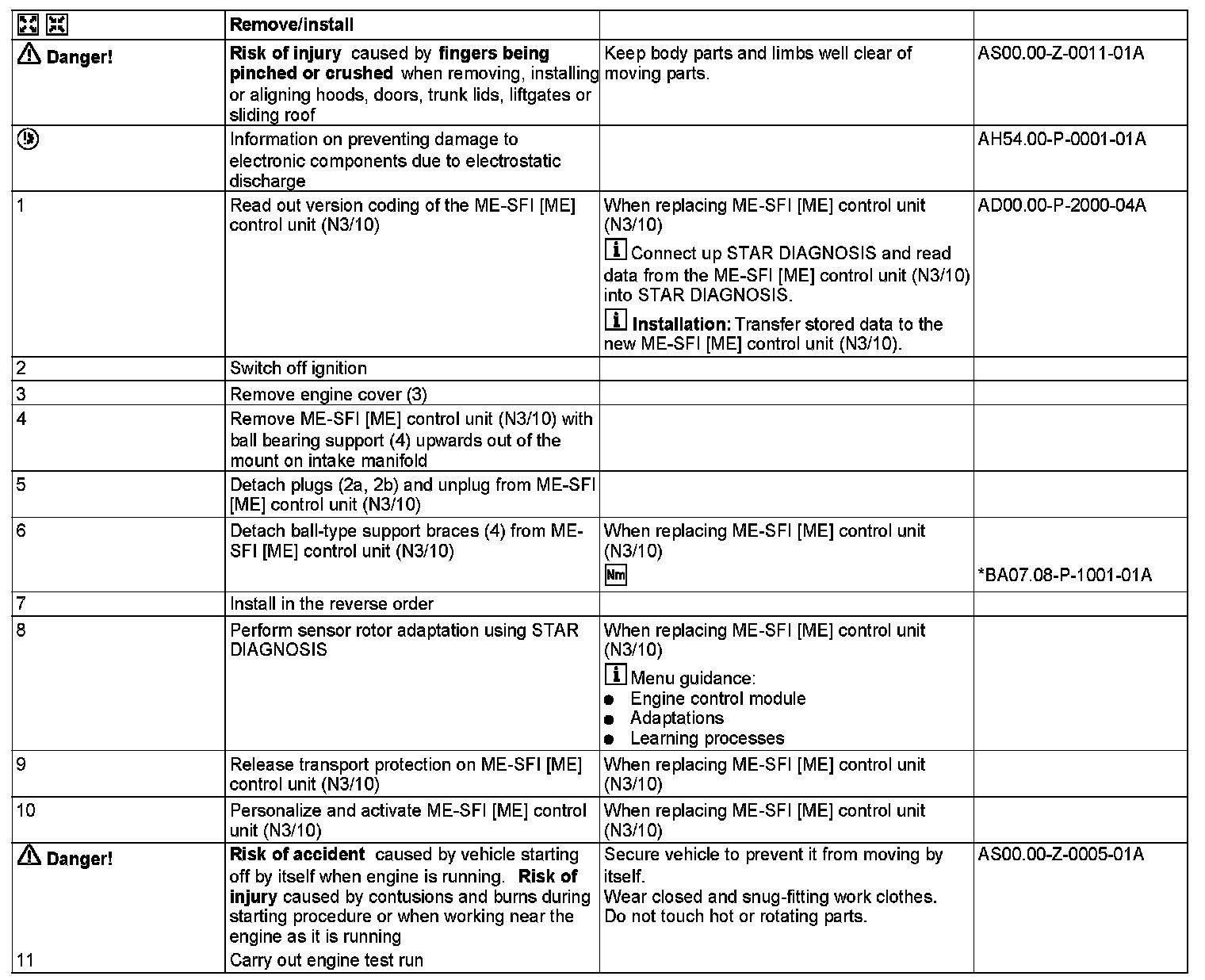

AR07.08-P-7008MMB Remove/install Injection System Control Unit
- ENGINES 157, 278 in MODEL 216, 221

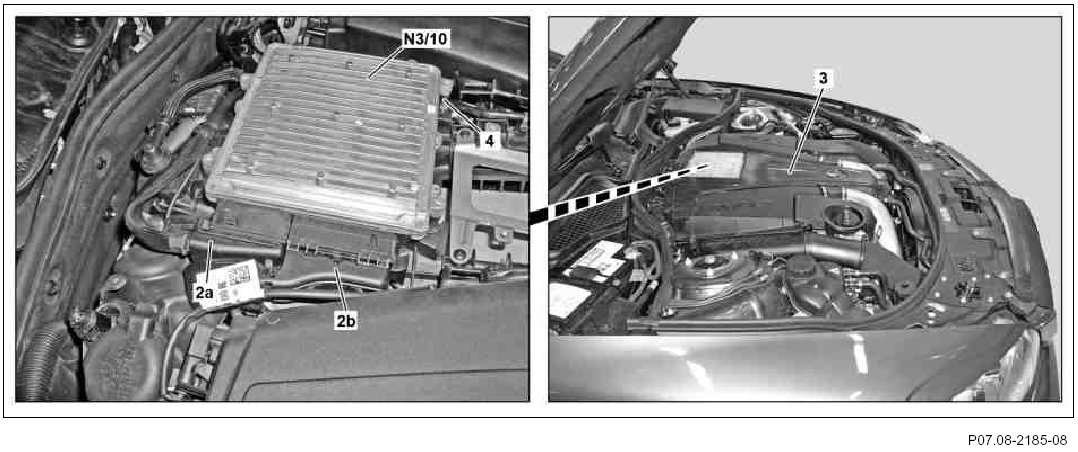

Shows model 216.373







2a Connector
2b Connector
3 Engine cover
4 Ball bearing support
N3/10 ME=SFI [ME] control module
