Electronic Throttle Actuator: Service and Repair

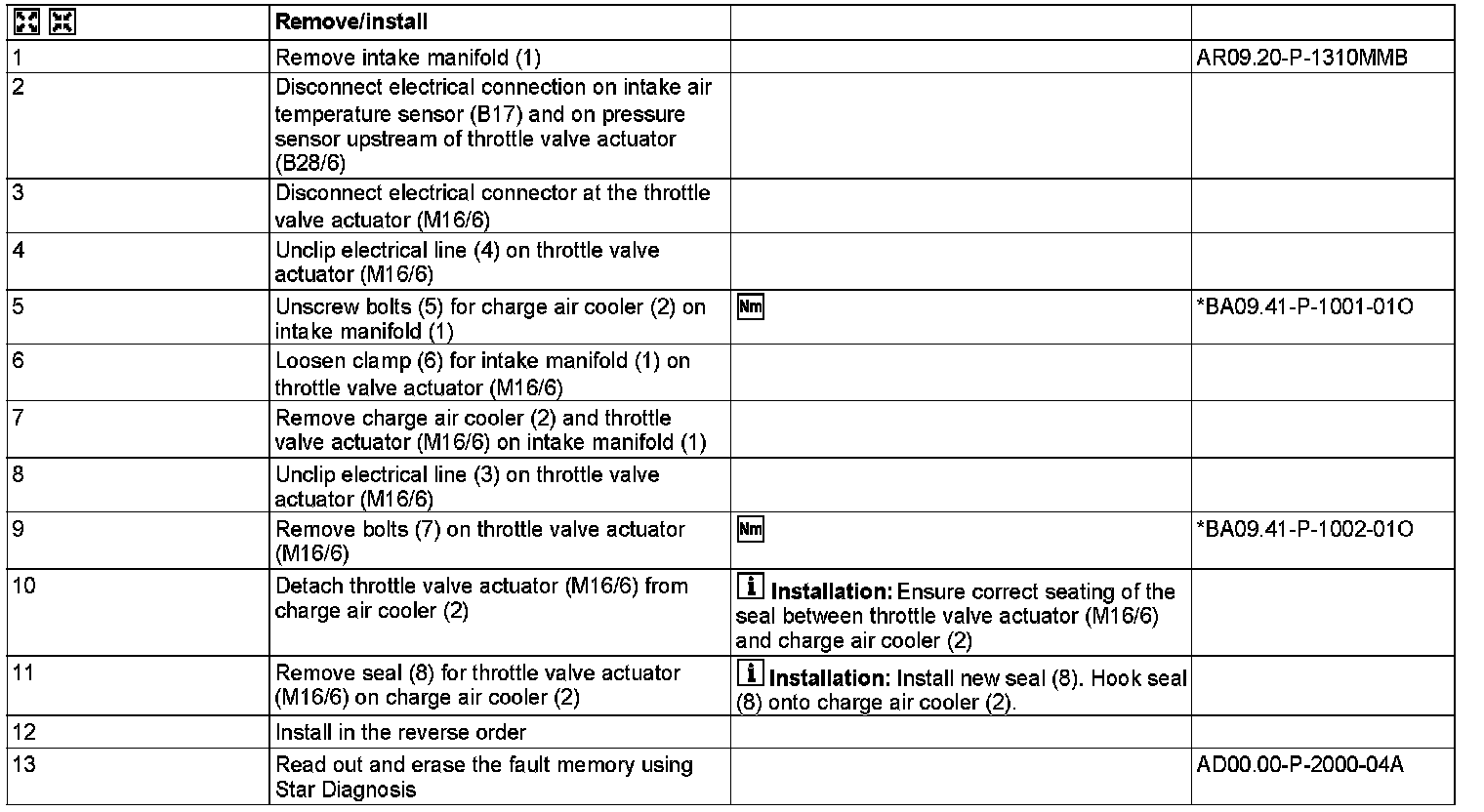

AR07.51-P-1401MMB Remove/install Throttle Valve Actuator
- ENGINES 157, 278 in MODEL 216, 221

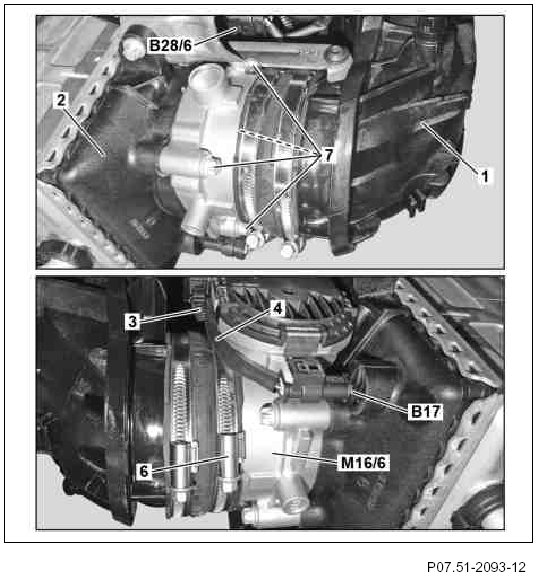

1 Intake manifold
2 Charge air cooler
3 Electrical line
4 Electrical line
6 Clip
7 Bolts
B17 Intake air temperature sensor
B28/6 Pressure sensor upstream of throttle valve actuator
M16/6 Throttle valve actuator
