Data Link Connector: Diagrams

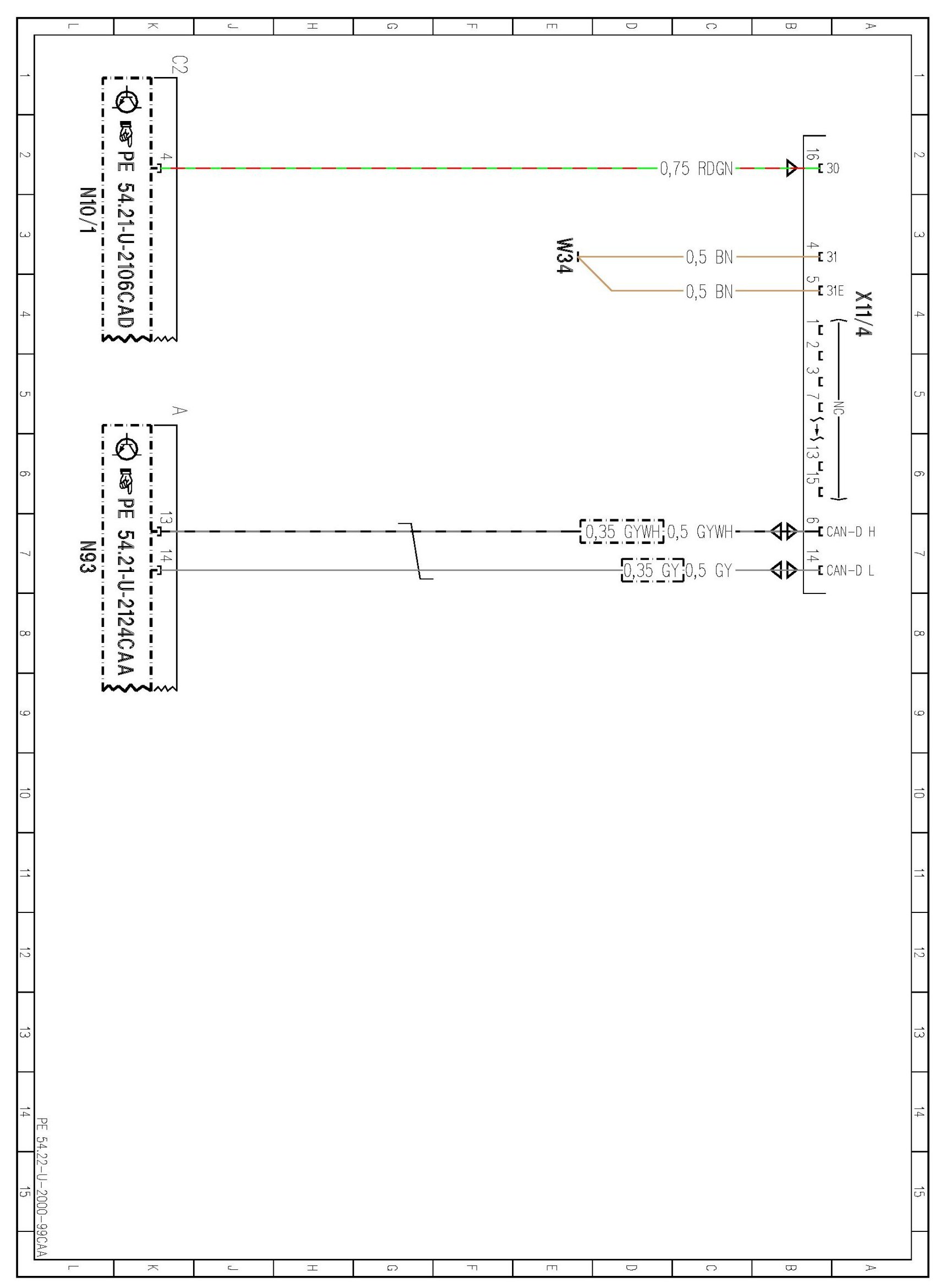

PE54.22-U-2000CAA Data Link Connector/Diagnostic Socket

MODEL 216

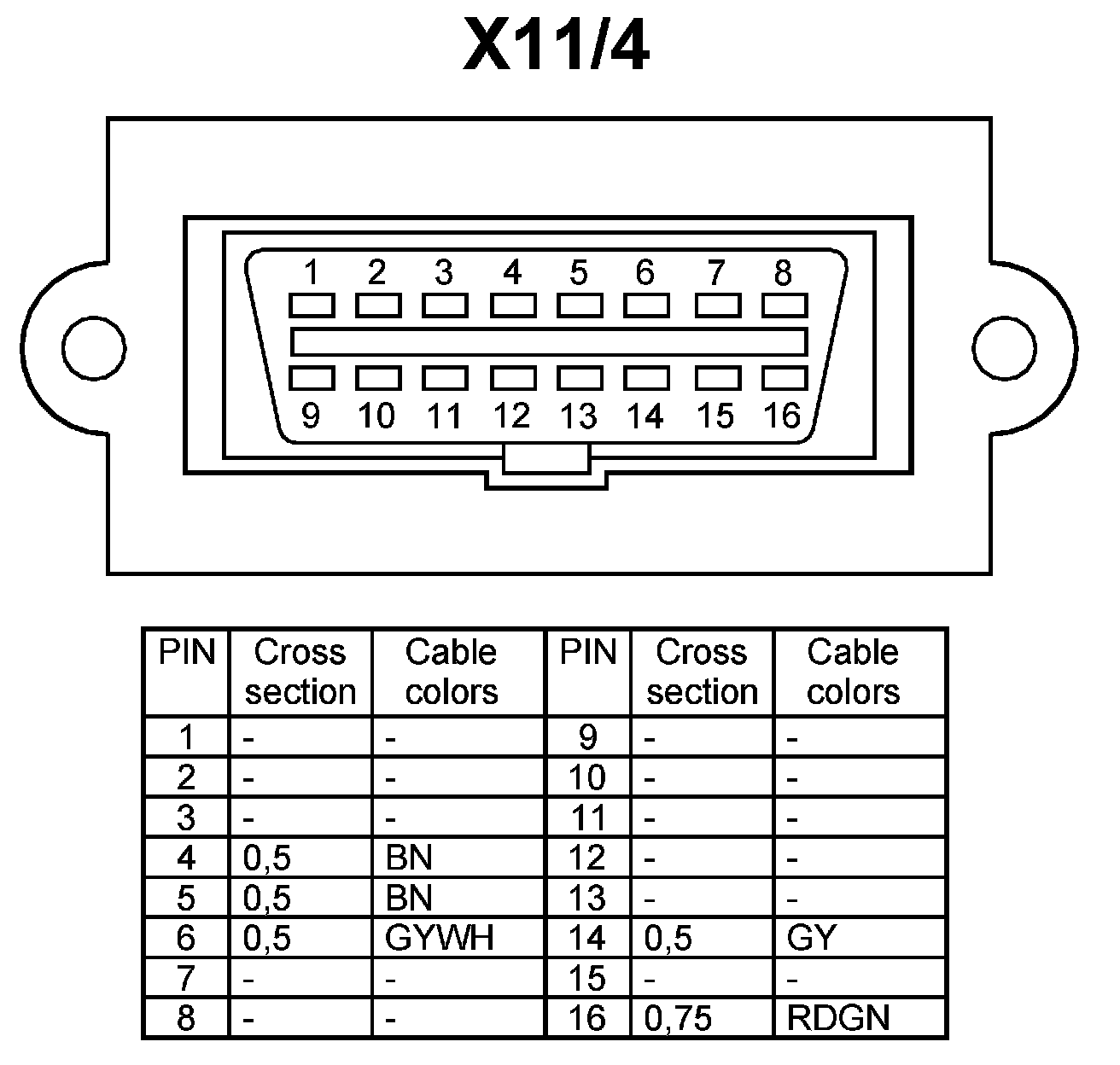

- Data Link Connector X11/4























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
