Home >> Mercedes Benz >> 2012 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Locations >> Ground Locations >> GF00.19-P-2000-04CAA Location and Assignment of Ground Points - Interior Left

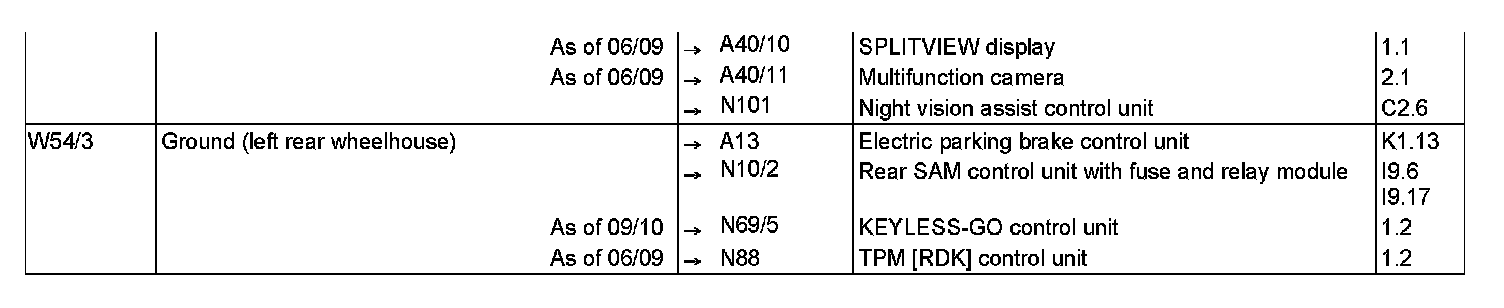

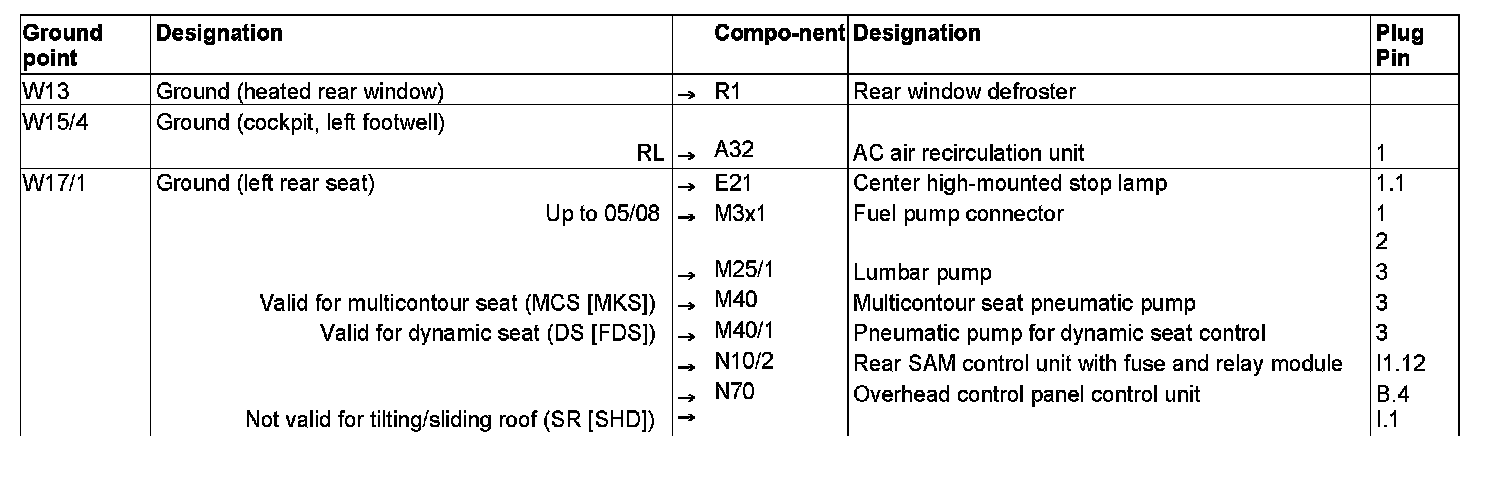

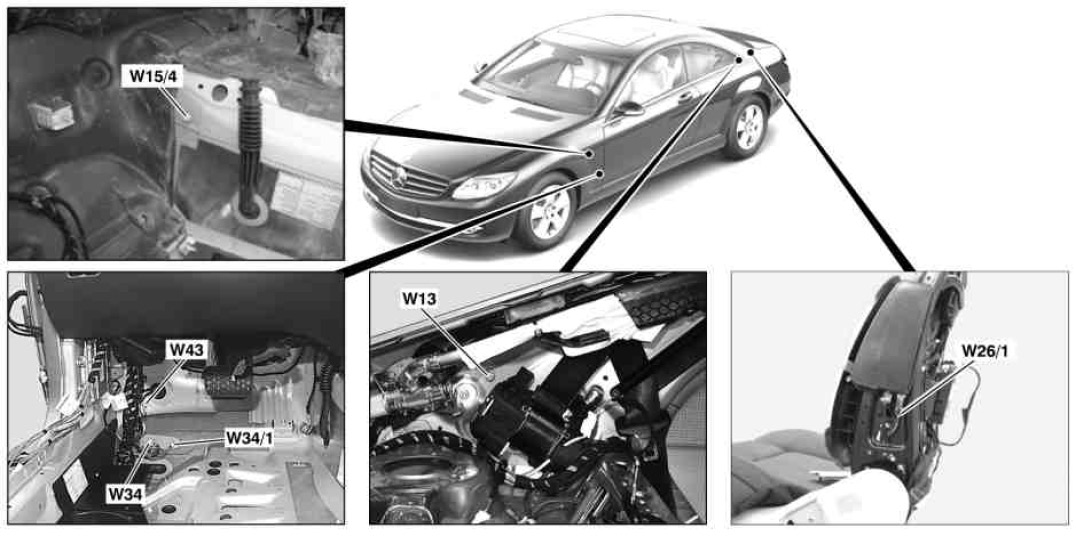

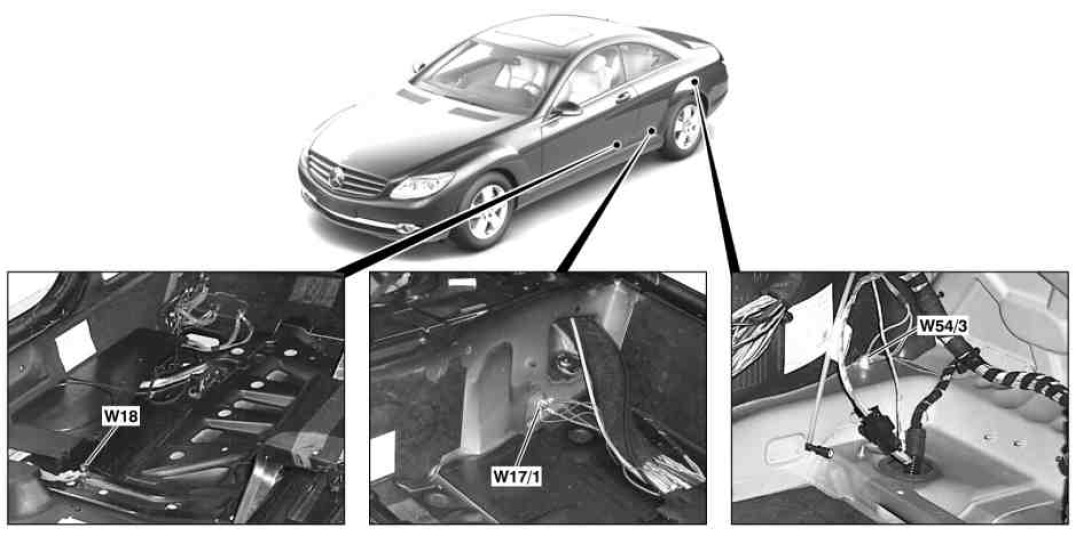

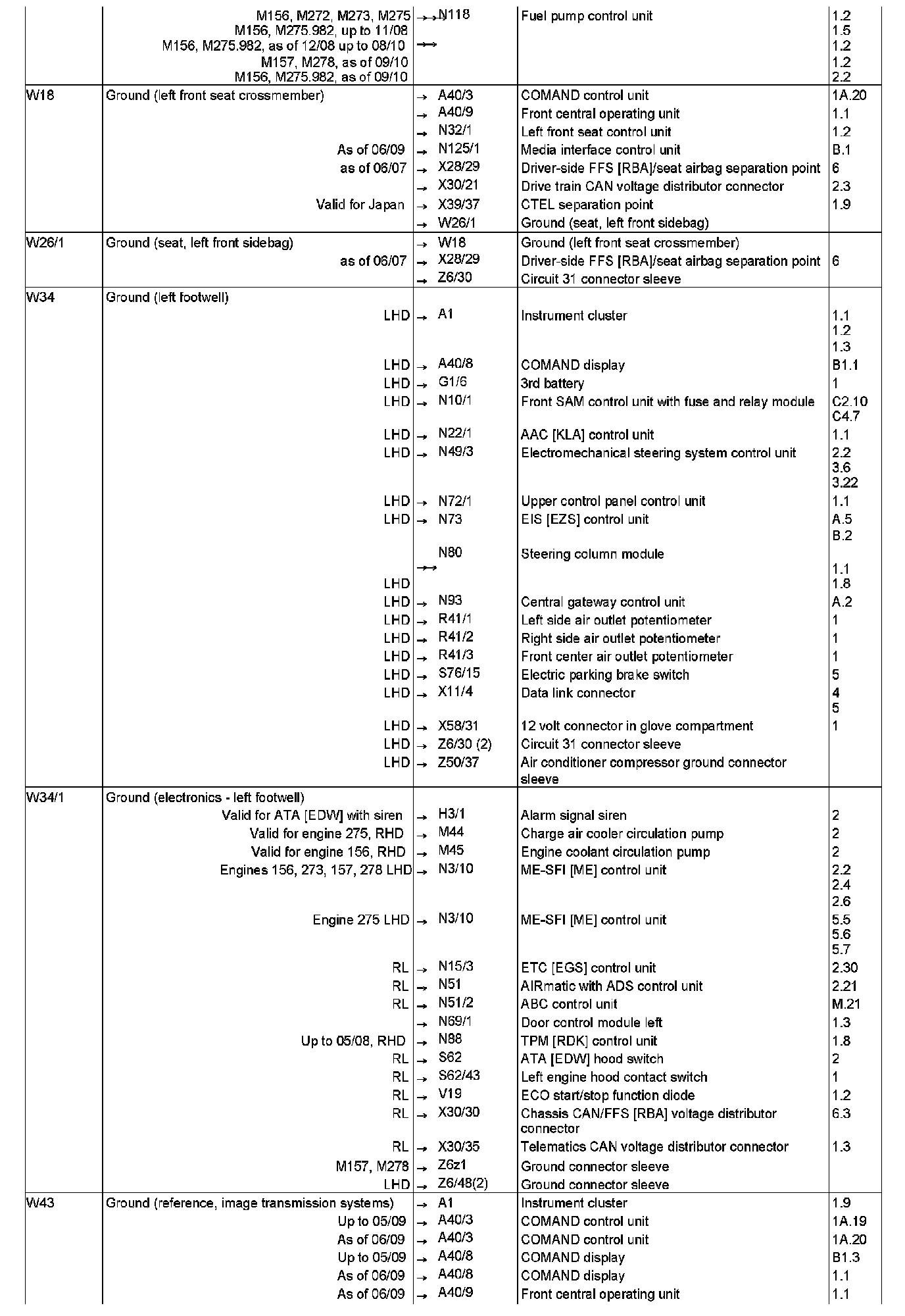

GF00.19-P-2000-04CAA Location and Assignment of Ground Points - Interior Left



GF00.19-P-2000-04CAA Location and Assignment of Ground Points - Interior Left
Model 216
